- RS-artikelnummer:
- 233-9552
- Tillv. art.nr:
- K1000 IMPELLOR
- Tillverkare / varumärke:
- Kestrel
49 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
324,65 kr
(exkl. moms)
405,81 kr
(inkl. moms)
Enheter | Per unit |
1 + | 324,65 kr |
- RS-artikelnummer:
- 233-9552
- Tillv. art.nr:
- K1000 IMPELLOR
- Tillverkare / varumärke:
- Kestrel
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- US
Produktdetaljer

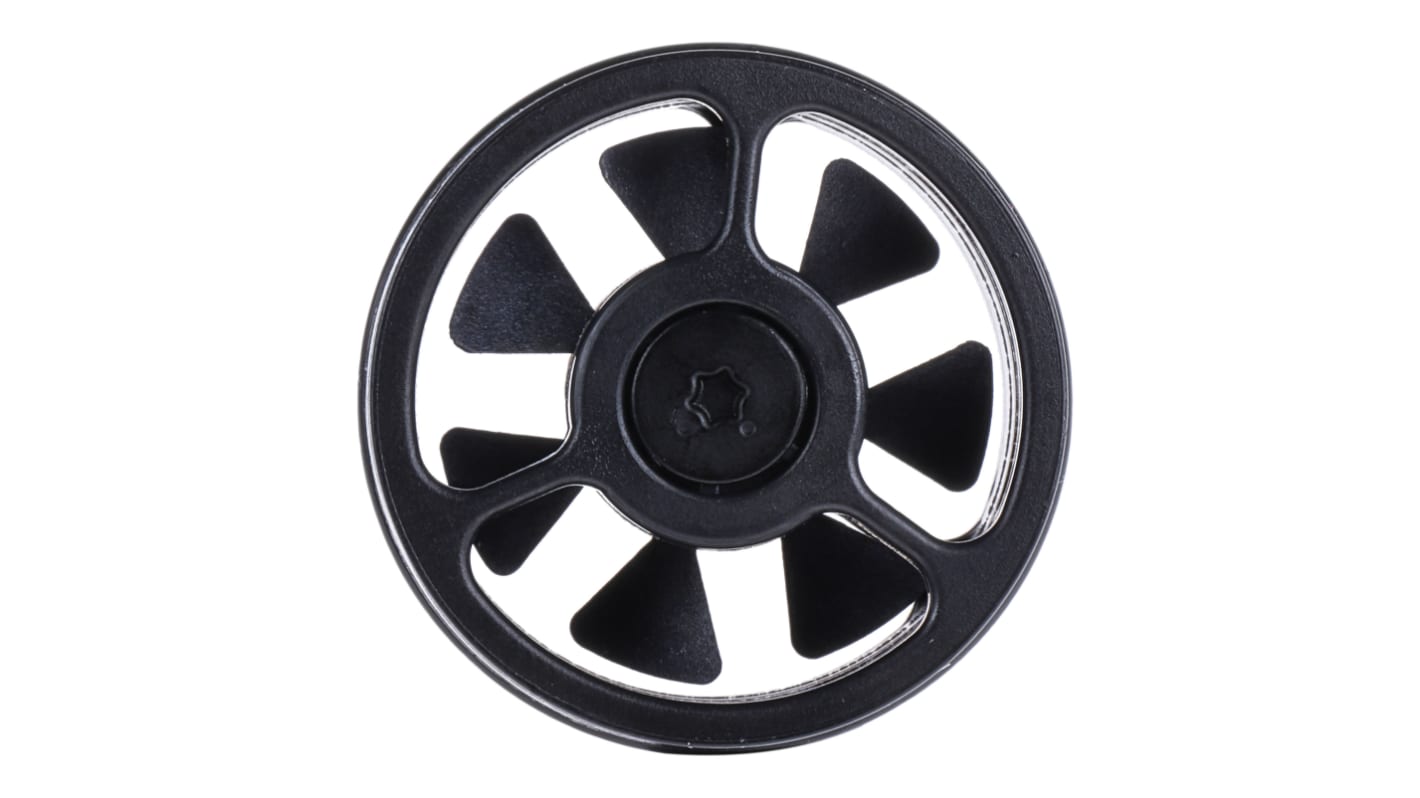

Kestrel Replacement Impeller, For Use With All Kestrel Models
All Kestrels feature a patented user-replaceable impeller assembly.
The impeller assembly is sold as a replacement impeller for all models in the Kestrel hand-held instrument range. It can also be used in other flow measurement applications.
The light weight impeller is mounted on a precision axle with low-friction Zytel® bearings to provide accurate flow measurements even at low wind speeds. A magnet is mounted on the axle, so the impeller's rotation can be easily sensed.
The impeller housing is designed so no adjustment of the bearings is required. During the manufacturing process each assembly is individually tested in a wind tunnel. This ensures that when a new impeller assembly is installed in a Kestrel instrument the accuracy of the instrument is restored to within specification.
The impeller assembly is sold as a replacement impeller for all models in the Kestrel hand-held instrument range. It can also be used in other flow measurement applications.
The light weight impeller is mounted on a precision axle with low-friction Zytel® bearings to provide accurate flow measurements even at low wind speeds. A magnet is mounted on the axle, so the impeller's rotation can be easily sensed.
The impeller housing is designed so no adjustment of the bearings is required. During the manufacturing process each assembly is individually tested in a wind tunnel. This ensures that when a new impeller assembly is installed in a Kestrel instrument the accuracy of the instrument is restored to within specification.
Features and Benefits
- User replaceable
- High precision axle and low-friction Zytel® bearings
- Light weight impeller
- 25mm (1") diameter
- Factory calibrated
- Fits all Kestrel models
- Quick and easy to replace - no tools required.
- NOTE: Replacement Impeller is compatible with ALL Kestrels models.
- The assembly is supplied with a retaining O-ring.
Replacing the impeller
Step 1. Using your thumbs press FIRMLY on the impeller module to remove the entire unit.
Step 2. Press only the sides of the new impeller when installing to avoid damaging the precision hub bearing.
Step 3. Insert the impeller so that the side that has a small triangle (close to the perimeter) faces the front of the Kestrel when installed.
Step 4. Orient one "arm" straight up (fig.1 & fig.2).
Step 5. The impeller can be pushed in from either side.
Step 2. Press only the sides of the new impeller when installing to avoid damaging the precision hub bearing.
Step 3. Insert the impeller so that the side that has a small triangle (close to the perimeter) faces the front of the Kestrel when installed.
Step 4. Orient one "arm" straight up (fig.1 & fig.2).
Step 5. The impeller can be pushed in from either side.
Note
Compatible with all Kestrel meters
Specifikationer
Attribute | Value |
---|---|
Accessory Type | Replacement Impeller |
For Use With | Kestrel 1000 Series |
