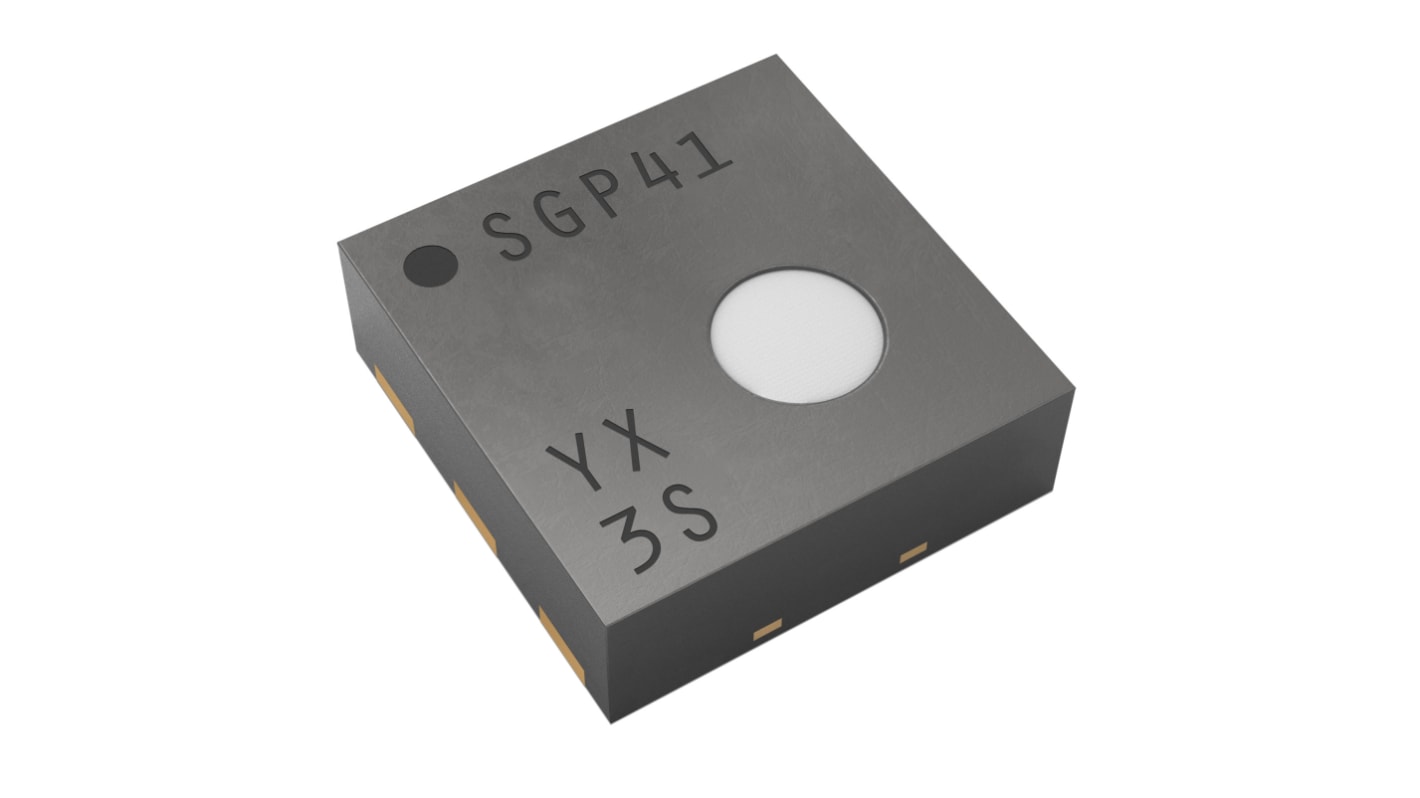

Sensirion SGP41-D-R4, NOx, VOC Air Quality Sensor for NOx, VOC Monitoring
- RS-artikelnummer:
- 234-8991
- Tillv. art.nr:
- SGP41-D-R4
- Tillverkare / varumärke:
- Sensirion
2368 I lager för avsändande samma dag
Pris (ex. moms) Varje
90,72 kr
(exkl. moms)
113,40 kr
(inkl. moms)
Enheter | Per enhet |
---|---|
1 - 9 | 90,72 kr |
10 - 99 | 63,66 kr |
100 - 499 | 47,35 kr |
500 - 999 | 46,25 kr |
1000 + | 45,14 kr |
- RS-artikelnummer:
- 234-8991
- Tillv. art.nr:
- SGP41-D-R4
- Tillverkare / varumärke:
- Sensirion
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CH
Produktdetaljer
The Sensirion SGP41 is a digital MOx based gas sensor for measuring VOX and NOx. Sensirions CMOSens® technology offers a complete sensor system on a single chip featuring a digital I2C interface and temperature-controlled micro hotplates. Providing you with a VOC (volatile organic compound) and a NOx (nitrogen oxides) based indoor air quality signal.
The sensing element and gas Index algorithm feature robustness against contaminating gases that are present in real-world applications, supporting long-term stability as well as low drift. The Sensirion SGP41 comes in a small DFN package, great for applications where space is limited. The air quality sensor has low power consumption. Applications include air purifiers, air quality monitoring and demand-controlled ventilation systems.
Evaluation kit SEK-SVM4x for SGP40/41 is also available, see RS 234-8989 the kit contains an SVM development board equipped with the 1 x SGP41, 1 x SHT40. 1 x UART to USB adapter cable, jumper wire cable set.
The sensing element and gas Index algorithm feature robustness against contaminating gases that are present in real-world applications, supporting long-term stability as well as low drift. The Sensirion SGP41 comes in a small DFN package, great for applications where space is limited. The air quality sensor has low power consumption. Applications include air purifiers, air quality monitoring and demand-controlled ventilation systems.
Evaluation kit SEK-SVM4x for SGP40/41 is also available, see RS 234-8989 the kit contains an SVM development board equipped with the 1 x SGP41, 1 x SHT40. 1 x UART to USB adapter cable, jumper wire cable set.
Recommended operating conditions 0 to 90 %RH, -10 to +50 °C
Supply voltage 1.7 to 3.6 V
DFN 6-pin package 2.44 x 2.44 x 0.85 mm3
Device to device variation VOC ±15 VOC Index points or % (the larger)
Device to device variation NOx ±50 NOx Index points or % (the larger)
Supply voltage 1.7 to 3.6 V
DFN 6-pin package 2.44 x 2.44 x 0.85 mm3
Device to device variation VOC ±15 VOC Index points or % (the larger)
Device to device variation NOx ±50 NOx Index points or % (the larger)
Notes
For VOC and NOx Index outputs customers need to integrate the Gas Index Algorithm (available on github) on their microcontroller.
Specifikationer
Attribute | Value |
---|---|
Gases Detected | NOx, VOC |
Response Time | 10 s, 250 s |
Application | NOx, VOC Monitoring |
Sensor Type | Air Quality Sensors |
Dimensions | 2.44 x 2.44 x 0.85mm |
Weight | 0g |
Maximum Operating Temperature | 50 °C |
Minimum Operating Temperature | -10 °C |
