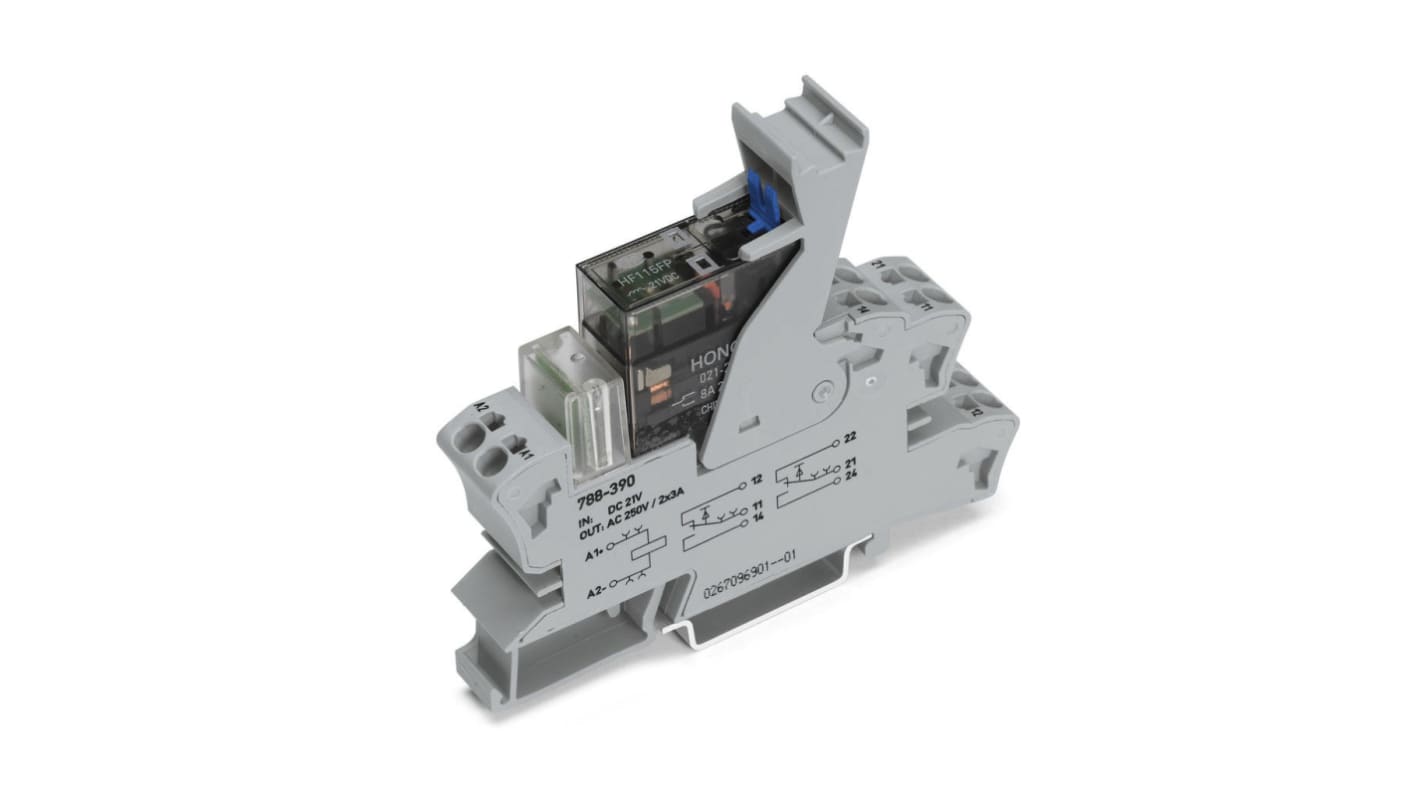

WAGO 788 Series Interface Relay, DIN Rail Mount, 24V dc Coil, DPDT, 2-Pole

Se kategorien

Antal (1 enhet)*

259,91 kr

(exkl. moms)

324,89 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 40 enhet(er) från den 22 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +259,91 kr

*vägledande pris

RS-artikelnummer:
180-3039
Distrelec artikelnummer:
304-10-815
Tillv. art.nr:
788-390
Tillverkare / varumärke:
WAGO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

WAGO

Coil Voltage

24V dc

Contact Configuration

DPDT

Mounting Type

DIN Rail

Number of Poles

2

Series

788

Terminal Type

Cage Clamp

Depth

86 mm

Height

73mm

Length

15mm

Contact Material

Silver Alloy

Minimum Operating Temperature

-40°C

Relay Switching Classification

Miniature Relay

Special Features

IP20 Degree of Protection, LED Indication, Mechanical Indication

Maximum Operating Temperature

+70°C

Life

10 x 10^3 cycles

COO (Country of Origin):
DE
Relay module, Nominal input voltage: 24 VDC, 2 changeover contacts, Limiting continuous current: 8 A, Path, Red status indicator, Module width: 15 mm

Reinforced insulation between coil and contacts
A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.
To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
