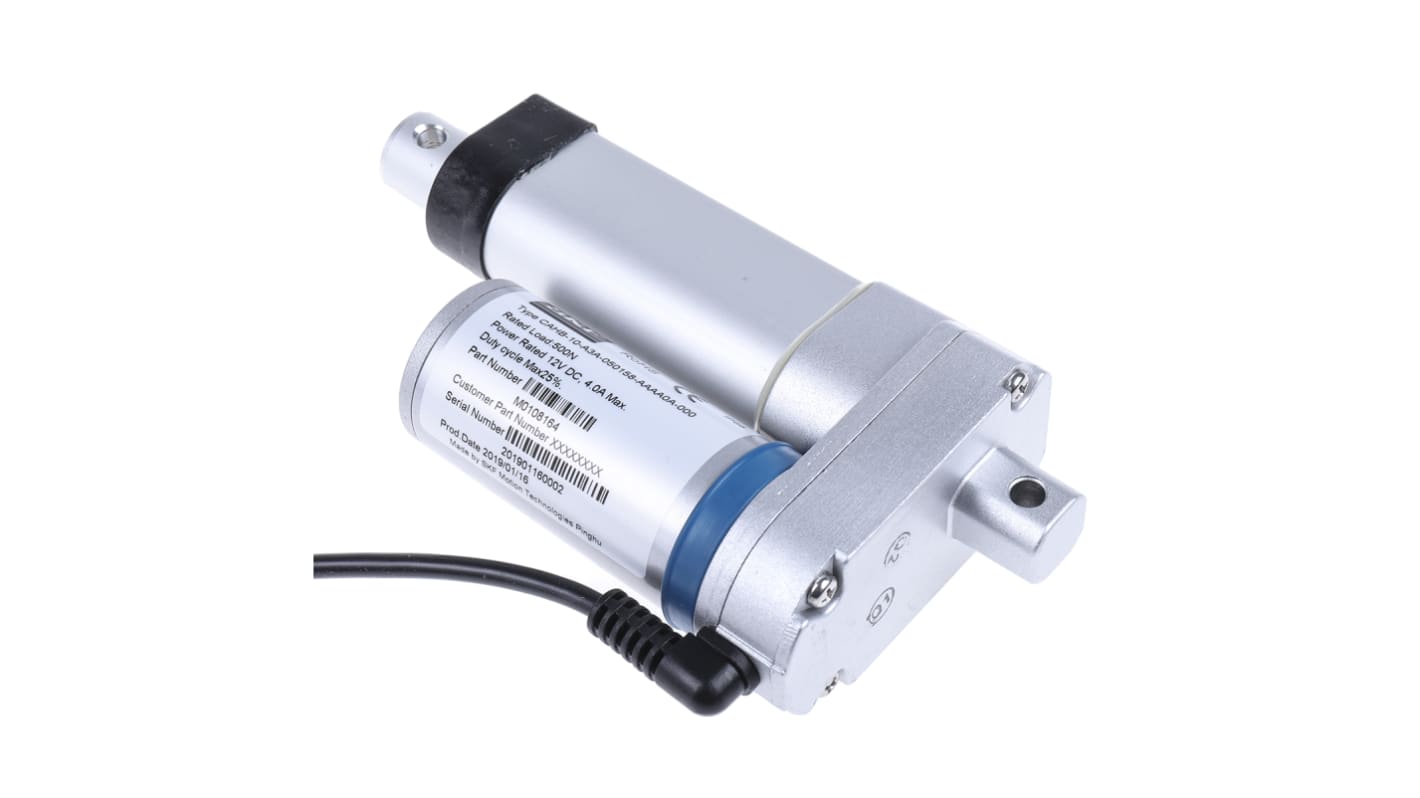

Ewellix Makers in Motion Miniature Electric Linear Actuator -, 12V dc, 500N, 50mm

Miniature Electric Linear Actuator, 12V DC, 500N Max Load - CAHB-10-A3A-050158AAA000-000

Use this linear actuator to automate the movement of parts or objects in your system. It’s actuated via a screw drive, which is self-locking to ensure user safety. The unit is made from corrosion-resistant zinc alloy and aluminium, making it suitable for use in harsh environments such as chemical plants. You can rely on it for safe use in very cold and high-heat climates as it has a wide operating temperature range between -40°C and +85°C. A maximum stroke length of 50mm makes the actuator suitable for smaller applications and its linear orientation means it can be fitted vertically or horizontally.

• Grey colour to blend in with fittings
• DC (direct current) motor converts electrical energy to mechanical action for fast actuation
• Silent operation, so suited for use in environments where low noise is a priority
• Maximum speed of 16mm/s (millimetres per second) for fast and efficient performance

Applications

• Factory automation
• Renewable energy
• Computer equipment

What’s the load capacity of this actuator?

This linear actuator has a maximum load capacity of 50kg, for medium-duty use.

SKF Easy 3, CARE 33, MATRIX, CASM and CAHB Actuators

Compact design
Overload protection
Various stroke lengths and movement of loads up to 50kg
Ideally suited to opening and closing doors, flaps and windows which are not within easy reach of users
Can be operated without limit switches
