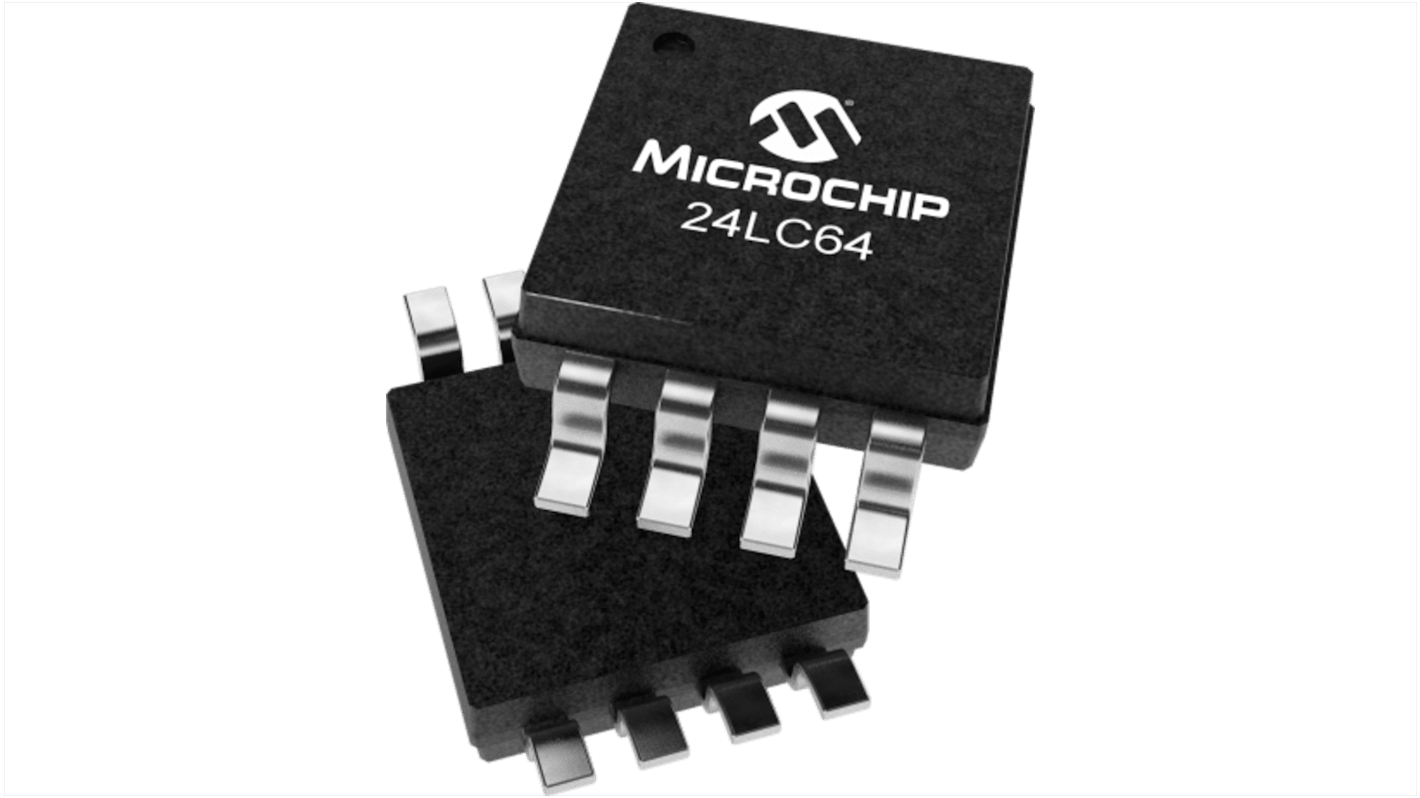

Microchip 24LC64T-I/MS, 64 kB EEPROM, 900 ns 8-Pin MSOP Serial-I2C
- RS-artikelnummer:
- 197-5375
- Tillv. art.nr:
- 24LC64T-I/MS
- Tillverkare / varumärke:
- Microchip
Mängdrabatt möjlig
Antal (1 förpackning med 25 enheter)*
135,075 kr
(exkl. moms)
168,85 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 575 enhet(er) från den 19 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 25 - 25 | 5,403 kr | 135,08 kr |
| 50 - 75 | 5,264 kr | 131,60 kr |
| 100 - 225 | 5,116 kr | 127,90 kr |
| 250 - 975 | 4,995 kr | 124,88 kr |
| 1000 + | 4,865 kr | 121,63 kr |
*vägledande pris
- RS-artikelnummer:
- 197-5375
- Tillv. art.nr:
- 24LC64T-I/MS
- Tillverkare / varumärke:
- Microchip
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Microchip | |
| Memory Size | 64kB | |
| Product Type | EEPROM | |
| Interface Type | Serial-I2C | |
| Package Type | MSOP | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Organisation | 8K x 8 bit | |
| Maximum Clock Frequency | 400kHz | |
| Minimum Supply Voltage | 2.5V | |
| Number of Bits per Word | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 3mm | |
| Standards/Approvals | No | |
| Series | 24LC64 | |
| Height | 1.1mm | |
| Width | 4.9 mm | |
| Number of Words | 8K | |
| Automotive Standard | AEC-Q100 | |
| Supply Current | 3mA | |
| Maximum Random Access Time | 900ns | |
| Data Retention | 200year | |
| Välj alla | ||
|---|---|---|
Brand Microchip | ||
Memory Size 64kB | ||
Product Type EEPROM | ||
Interface Type Serial-I2C | ||
Package Type MSOP | ||
Mount Type Surface | ||
Pin Count 8 | ||
Organisation 8K x 8 bit | ||
Maximum Clock Frequency 400kHz | ||
Minimum Supply Voltage 2.5V | ||
Number of Bits per Word 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 3mm | ||
Standards/Approvals No | ||
Series 24LC64 | ||
Height 1.1mm | ||
Width 4.9 mm | ||
Number of Words 8K | ||
Automotive Standard AEC-Q100 | ||
Supply Current 3mA | ||
Maximum Random Access Time 900ns | ||
Data Retention 200year | ||
The Microchip 24LC64 series is a 64 Kbit serial EEPROM. It has an operating voltage of 1.7V with maximum standby currents of only 1 μA. It is used for advanced, low-power applications such as personal communications or data acquisition.
Cascadable up to eight devices
Schmitt trigger inputs for noise suppression
Output slope control to eliminate ground bounce
Factory programming available
Pb-free and RoHS compliant
Hardware write protect
