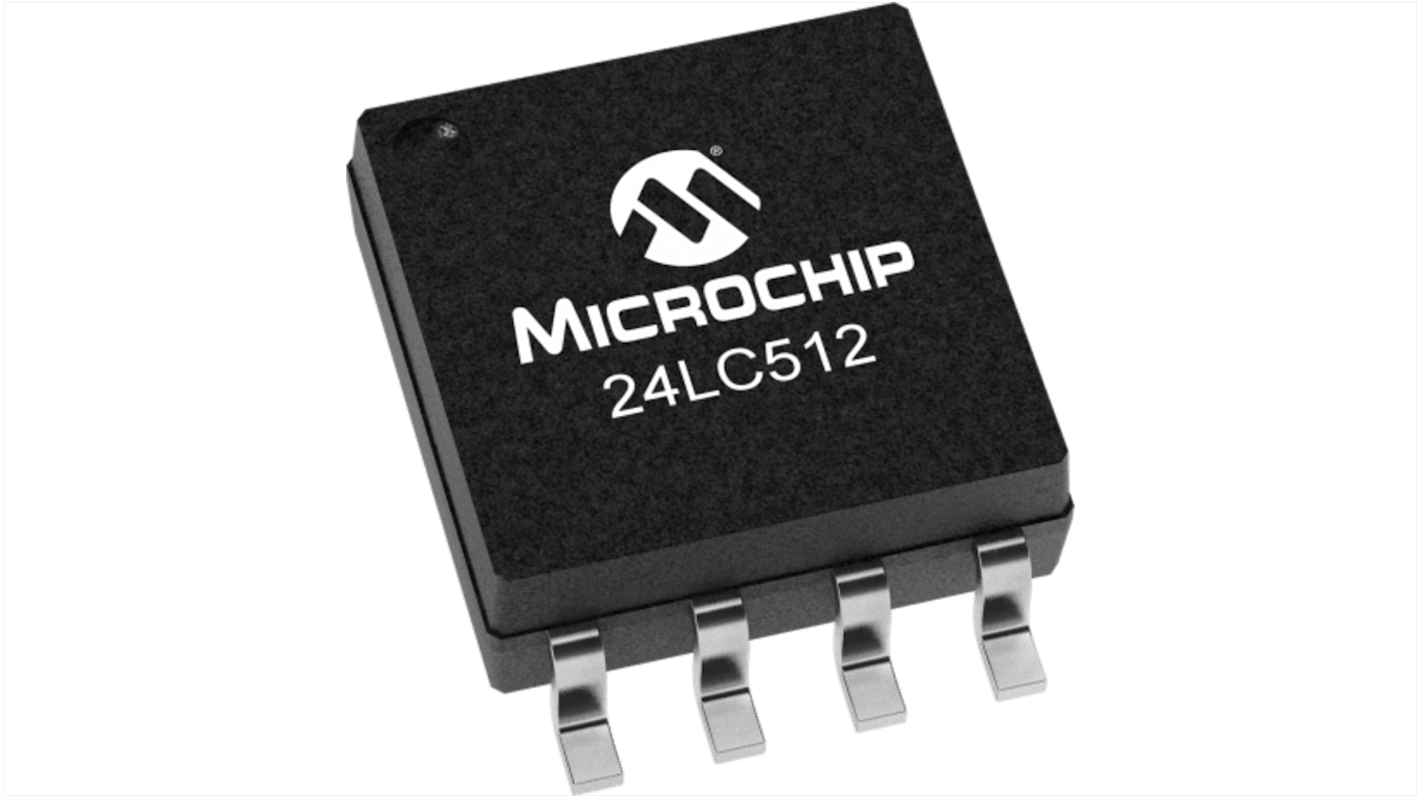

Microchip 24LC512-E/SM, 512 kB EEPROM, 900 ns 8-Pin SOIJ-8 Serial-I2C (2 Wire)
- RS-artikelnummer:
- 197-5313
- Tillv. art.nr:
- 24LC512-E/SM
- Tillverkare / varumärke:
- Microchip
Mängdrabatt möjlig
Antal (1 förpackning med 10 enheter)*
180,21 kr
(exkl. moms)
225,26 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Begränsat lager
- 230 kvar, redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per förpackning* |
|---|---|---|
| 10 - 10 | 18,021 kr | 180,21 kr |
| 20 - 40 | 17,55 kr | 175,50 kr |
| 50 + | 17,338 kr | 173,38 kr |
*vägledande pris
- RS-artikelnummer:
- 197-5313
- Tillv. art.nr:
- 24LC512-E/SM
- Tillverkare / varumärke:
- Microchip
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Microchip | |
| Product Type | EEPROM | |
| Memory Size | 512kB | |
| Interface Type | Serial-I2C (2 Wire) | |
| Package Type | SOIJ-8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Clock Frequency | 400kHz | |
| Organisation | 64k x 8 Bit | |
| Minimum Supply Voltage | 2.5V | |
| Maximum Supply Voltage | 5.5V | |
| Number of Bits per Word | 8 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Length | 5.26mm | |
| Width | 5.25 mm | |
| Height | 1.98mm | |
| Supply Current | 5mA | |
| Data Retention | 200year | |
| Maximum Random Access Time | 900ns | |
| Number of Words | 64K | |
| Automotive Standard | AEC-Q100 | |
| Välj alla | ||
|---|---|---|
Brand Microchip | ||
Product Type EEPROM | ||
Memory Size 512kB | ||
Interface Type Serial-I2C (2 Wire) | ||
Package Type SOIJ-8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Clock Frequency 400kHz | ||
Organisation 64k x 8 Bit | ||
Minimum Supply Voltage 2.5V | ||
Maximum Supply Voltage 5.5V | ||
Number of Bits per Word 8 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Length 5.26mm | ||
Width 5.25 mm | ||
Height 1.98mm | ||
Supply Current 5mA | ||
Data Retention 200year | ||
Maximum Random Access Time 900ns | ||
Number of Words 64K | ||
Automotive Standard AEC-Q100 | ||
The Microchip 24LC512 series is a 512 Kbit serial EEPROM that can be operated across a broad voltage range 1.7V to 5.5V. It can be used for advanced, low-power applications such as personal communications or data acquisition.
Cascadable up to eight devices
Schmitt trigger inputs for noise suppression Output slope control to eliminate ground bounce.
Factory programming available.
Pb-Free and RoHS compliant
