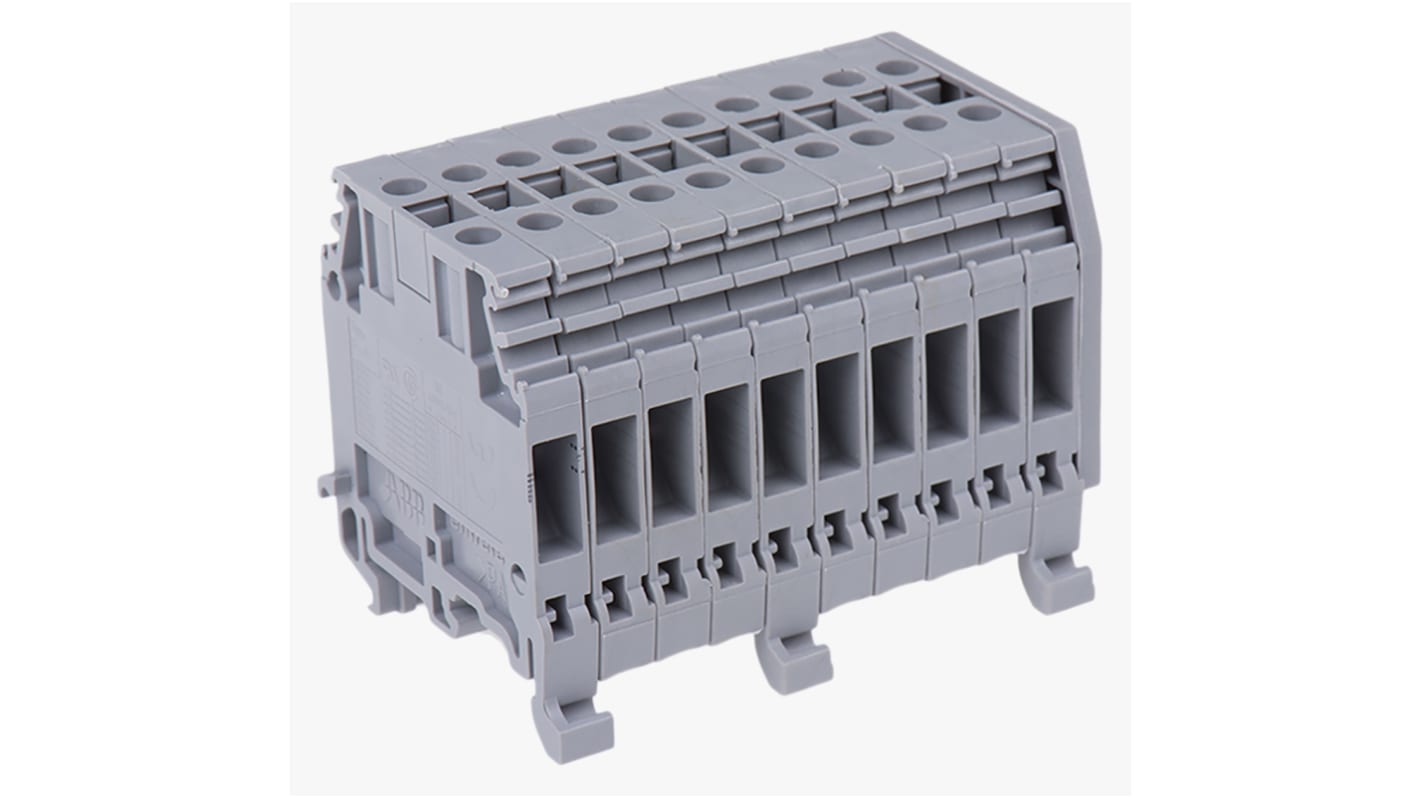

Entrelec Distribution Block, 4mm², 10 Way, 32A, 800 V, Grey

  • RS-artikelnummer 383-1598
  • Tillv. art.nr 1SNA115412R0000
  • Tillverkare / varumärke Entrelec
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): FR
Produktdetaljer

Distribution Blocks

Distribution terminal blocks provide fantastic reliability and are of the highest quality available across the entire range of terminals.

Features and Benefits

• Easy to handle
• All models rated to various voltages
• Compression clamp terminals accept cable up to 4 mm², have a pitch of 6 mm per way and have an above-rail height of 48 mm
• Easy and ergonomic mounting on DIN Rail

63 A Rated Types

63 A rated terminal blocks have a centre stud that accepts cable connection up to 70 mm².It has distribution of commoned outputs up to 10 mm² per tapping and/or above-rail height of 52 mm.

Approvals

UL, recognised CSA

Specifikationer
Attribute Value
Number of Ways 10
Termination Method Clamp
Wire Size 12 AWG
Current Rating 32A
Voltage Rating 800 V
Cable CSA 4mm²
Length 62.5mm
Height 53mm
Colour Grey
104 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
99,88 kr
(exkl. moms)
124,85 kr
(inkl. moms)
Enheter
Per unit
1 +
99,88 kr
