MikroElektronika MIKROE-3264, BarGraph 3 Click mikroBus Click Board With 74HC595

Se alla Display Development Tools
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
183-9645
Tillv. art.nr:
MIKROE-3264
Tillverkare / varumärke:
MikroElektronika
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

MikroElektronika

Kit Classification

mikroBus Click Board

Kit Name

BarGraph 3 Click

Featured Device

74HC595

COO (Country of Origin):
RS

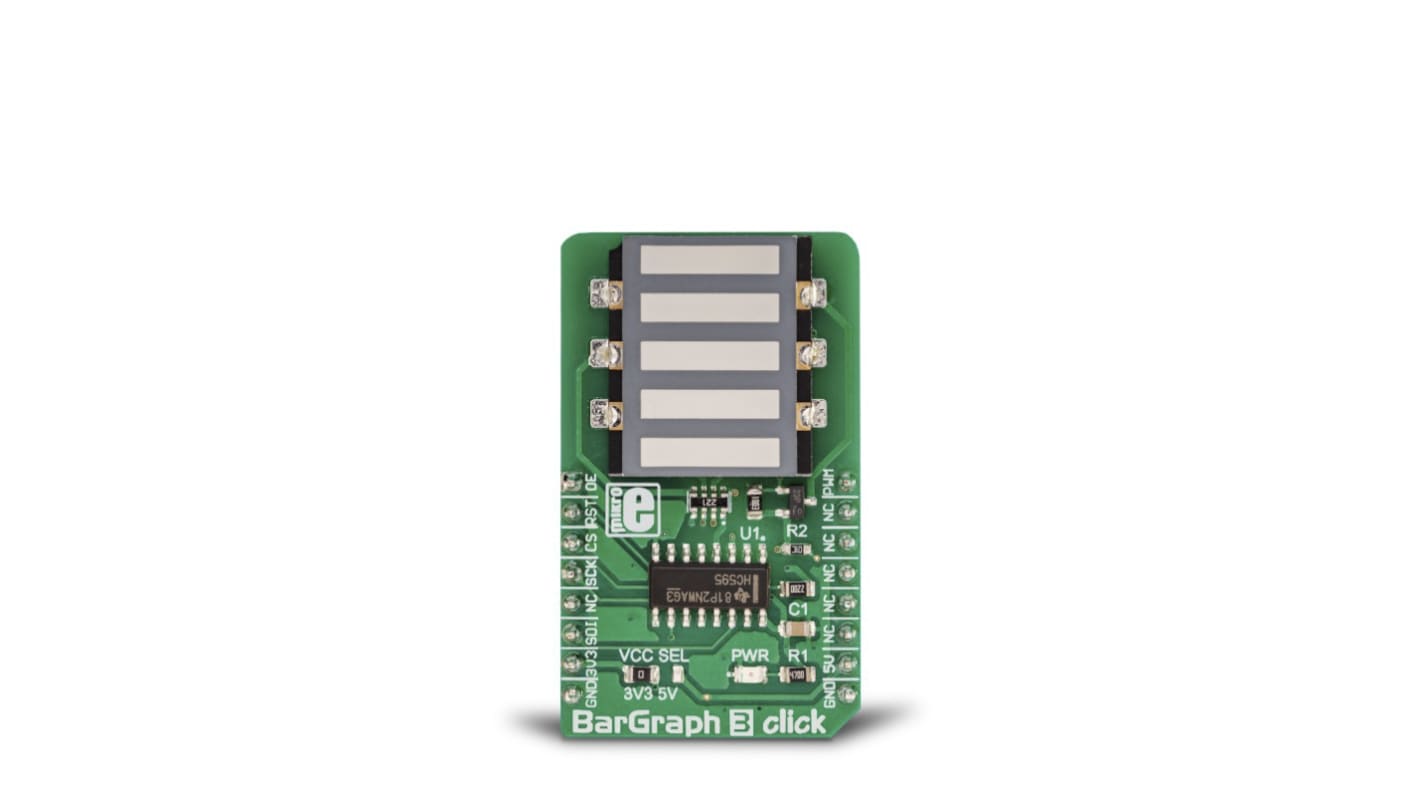

BarGraph 3 click is equipped with a five-segment LED bar graph display, notable for its strong and uniform illumination of the segments. Each segment consists of three internal LEDs with a common cathode, while the anodes of all LEDs are connected in a single point. This reduces the number of the display bar pins to just six. The common anode is connected to the PWM pin of the microbus via the P-type MOSFET, which can use the PWM signal from the microcontroller to change the intensity of the display. The fact that there are as many as three LEDs per segment makes the segments evenly illuminated, and the red Colour of the light on the dark background makes segments clearly visible.It comes in the package which also includes the mikroSDK™ software and a library with all the functions. The Click board™ is ready to use on the development board.

Bar graph display.
Excellent character appearance.
Wide viewing angle.
Black face, white bar.
