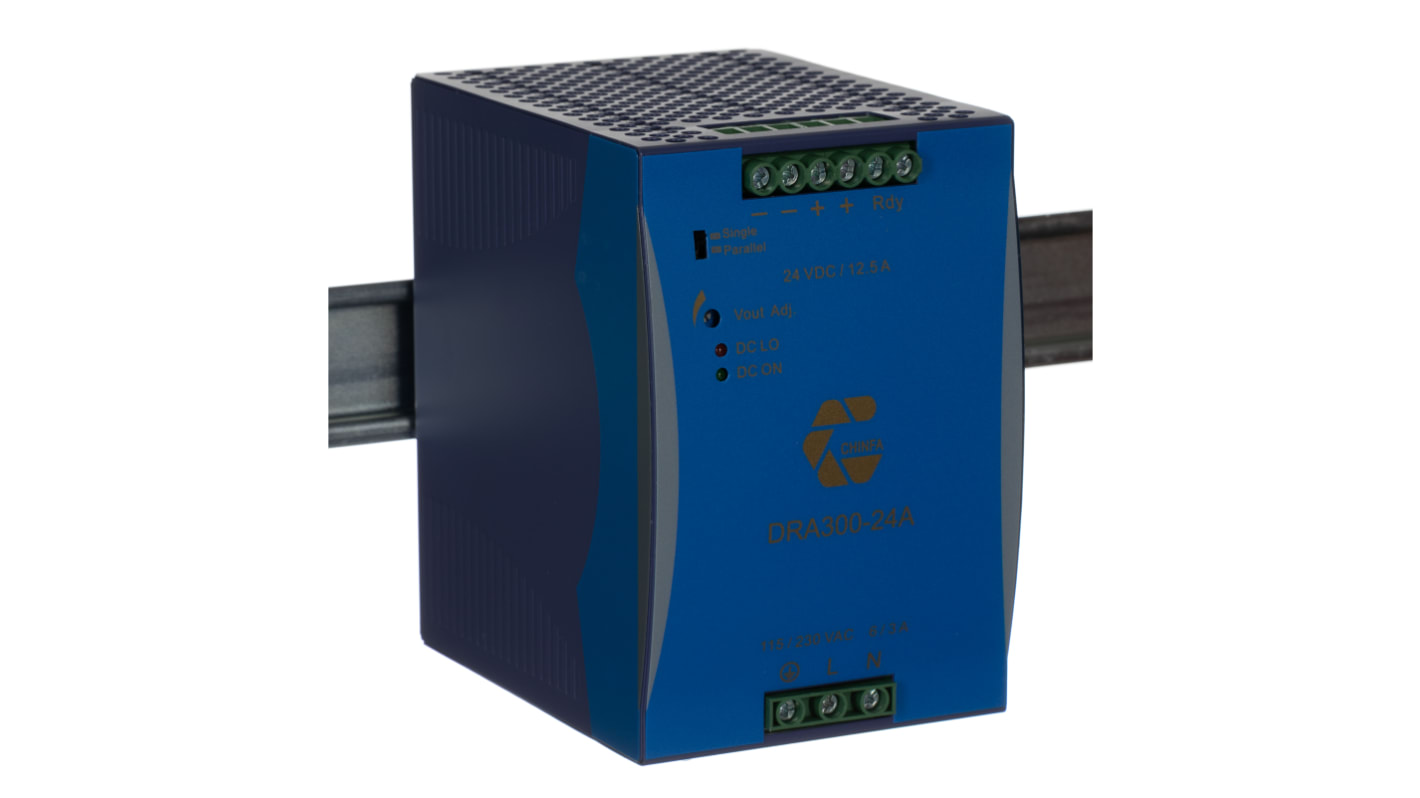

Chinfa DRA300 DIN Rail Power Supply, 90 → 264V ac ac Input, 24V dc dc Output, 12.5A Output, 300W
- RS-artikelnummer:
- 896-2246
- Tillv. art.nr:
- DRA300-24A
- Tillverkare / varumärke:
- Chinfa
64 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
1 923,07 kr
(exkl. moms)
2 403,84 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 1 923,07 kr |
- RS-artikelnummer:
- 896-2246
- Tillv. art.nr:
- DRA300-24A
- Tillverkare / varumärke:
- Chinfa
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
CHINFA DIN Rail Power Supply
The CHINFA DIN Rail DRA series switch mode power supply has a universal input voltage ranging between 115VAC and 230VAC. The switch mode technology provides a compact design, high efficiency and low residual ripple. The rated output current is 12.5A at 24VDC output voltage. This power supply is especially designed for industrial control systems, process automation and industrial applications requiring stabilised DC voltage.
Features and Benefits
Auto select input voltage
High efficiency of 89%
MTBF is 437000 hours
Operation temperature ranging between -40°C and 71°C
Power rating is up to 300W
Regulated outputs
Ripple factor and noise is 100mV
Screw terminal connection
Short circuit protection
High efficiency of 89%
MTBF is 437000 hours
Operation temperature ranging between -40°C and 71°C
Power rating is up to 300W
Regulated outputs
Ripple factor and noise is 100mV
Screw terminal connection
Short circuit protection
Applications
Electromagnetic drives
Factory automation
Industrial controls
Instrumentation
Factory automation
Industrial controls
Instrumentation
Certifications
CE certified
cUL
TUV
UL approved
cUL
TUV
UL approved
Specifikationer
Attribute | Value |
|---|---|
| Output Voltage | 24V dc |
| Output Current | 12.5A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 90 → 264V ac |
| Power Rating | 300W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 125mm |
| Width | 83.5mm |
| Depth | 124mm |
| Series | DRA300 |
| Ripple And Noise | 100mV |
| Mounting Type | DIN Rail Mount |
| MTBF | 437000h |
| Special Features | Auto Select Input Voltage, Self Components Design |
| Standards Met | EN 55032, EN 61558-1, EN 61558-2-16, EN 62368-1, UL 508, UL 62368-1 |
| Maximum Temperature | +71°C |
| Minimum Temperature | -30°C |
