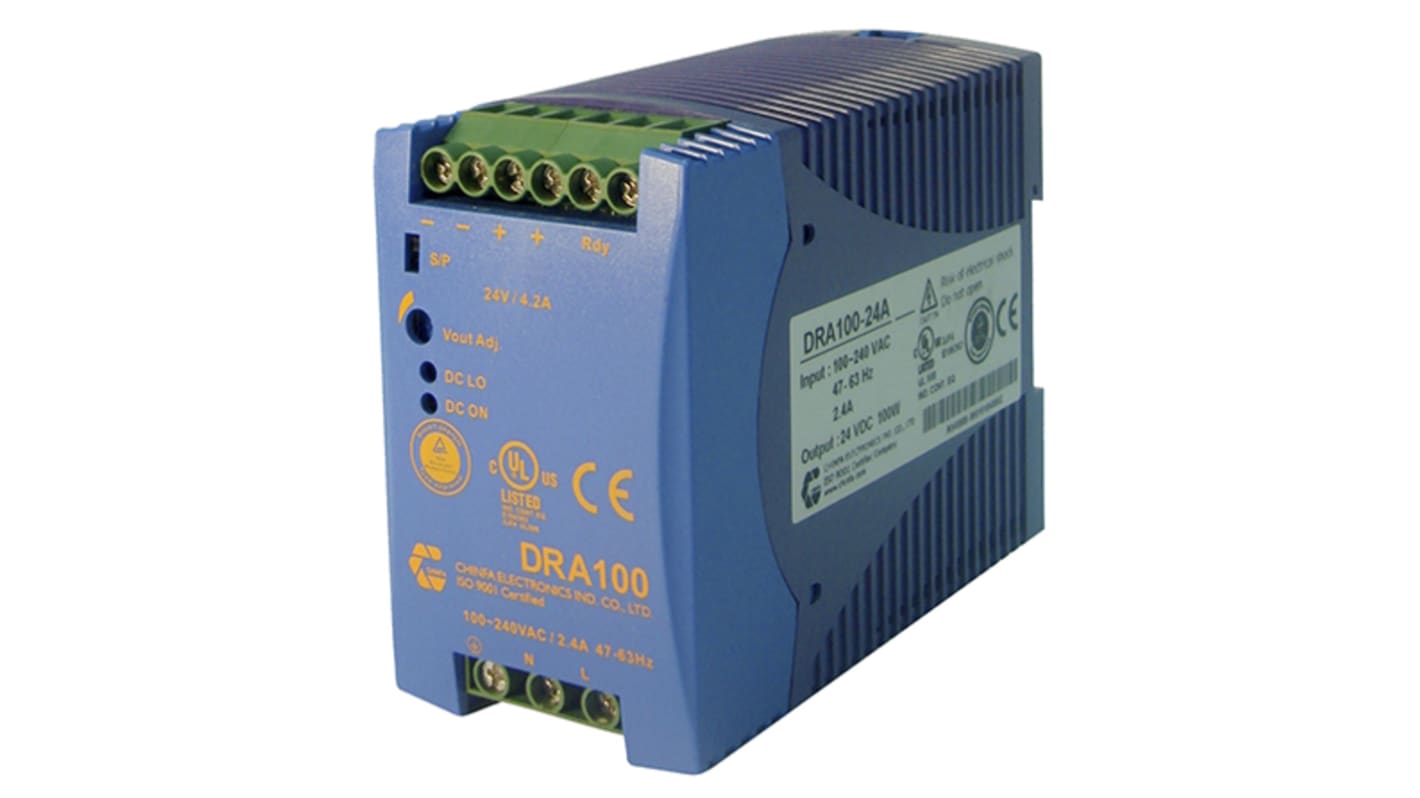

    Chinfa DRA100 DIN Rail Power Supply 90 → 264V ac Input, 24V dc Output, 4.2A 100W

    RS-artikelnummer:
    896-2243
    Tillv. art.nr:
    DRA100-24A
    Tillverkare / varumärke:
    Chinfa
    Chinfa
    Se alla DIN Rail Power Supplies
    101 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    823,40 kr

    (exkl. moms)

    1 029,25 kr

    (inkl. moms)

    EnheterPer unit
    1 - 4823,40 kr
    5 +789,63 kr
    RS-artikelnummer:
    896-2243
    Tillv. art.nr:
    DRA100-24A
    Tillverkare / varumärke:
    Chinfa
    COO (Country of Origin):
    TW

    Datablad


    Lagstiftning och ursprungsland

    COO (Country of Origin):
    TW

    Produktdetaljer

    CHINFA DIN Rail Power Supply


    The CHINFA DIN Rail DRA series switch mode power supply has a universal input voltage ranging between 90VAC and 264VAC and adjustable DC output voltage. The switch mode technology provides a compact design, high efficiency and low residual ripple. The rated output current is 4.2A at 24VDC output voltage. This power supply is especially designed for industrial control systems, process automation and industrial applications requiring stabilised DC voltage.


    Features and Benefits


    High efficiency of 86%
    Internal input filter
    MTBF is 531000 hours
    Operation temperature ranging between -35°C and 71°C
    Power rating is up to 100W
    Regulated outputs
    Ripple factor and noise is 50mV
    Screw terminal connection
    Short circuit protection


    Applications


    Electromagnetic drives
    Factory automation
    Industrial controls
    Instrumentation


    Certifications


    CE certified
    cUL
    TUV
    UL approved



    Specifikationer

    AttributeValue
    AC or DC Input Voltageac
    AC or DC Output Voltagedc
    Input Voltage90 → 264V ac
    Output Voltage24V dc
    Output Current4.2A
    Power Rating100W
    Number of Outputs1
    Electrical Phase1
    Height90mm
    Depth114mm
    Width54mm
    SeriesDRA100
    Standards MetEN 55032, EN 61558-1, EN 61558-2-16, EN 62368-1, UL 508, UL 62368-1
    Mounting TypeDIN Rail Mount
    Maximum Temperature+71°C
    Special FeaturesInternal Input Filter
    MTBF531000h
    Minimum Temperature-35°C
    Ripple And Noise50mV
