ASSMANN WSW 2.54mm Pitch Vertical 8 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A
- RS-artikelnummer:
- 674-2479P
- Tillv. art.nr:
- AR 08 HZL-TT
- Tillverkare / varumärke:
- ASSMANN WSW
Se alla DIL Sockets
2830 I lager för avsändande samma dag
Pris (ex. moms) Each (Supplied in a Tube)
6,135 kr
(exkl. moms)
7,669 kr
(inkl. moms)
| Enheter | Per unit |
| 150 - 490 | 6,135 kr |
| 500 - 990 | 5,355 kr |
| 1000 - 2490 | 4,917 kr |
| 2500 + | 4,315 kr |
Förpackningsalternativ:
- RS-artikelnummer:
- 674-2479P
- Tillv. art.nr:
- AR 08 HZL-TT
- Tillverkare / varumärke:
- ASSMANN WSW
- COO (Country of Origin):
- CN
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer

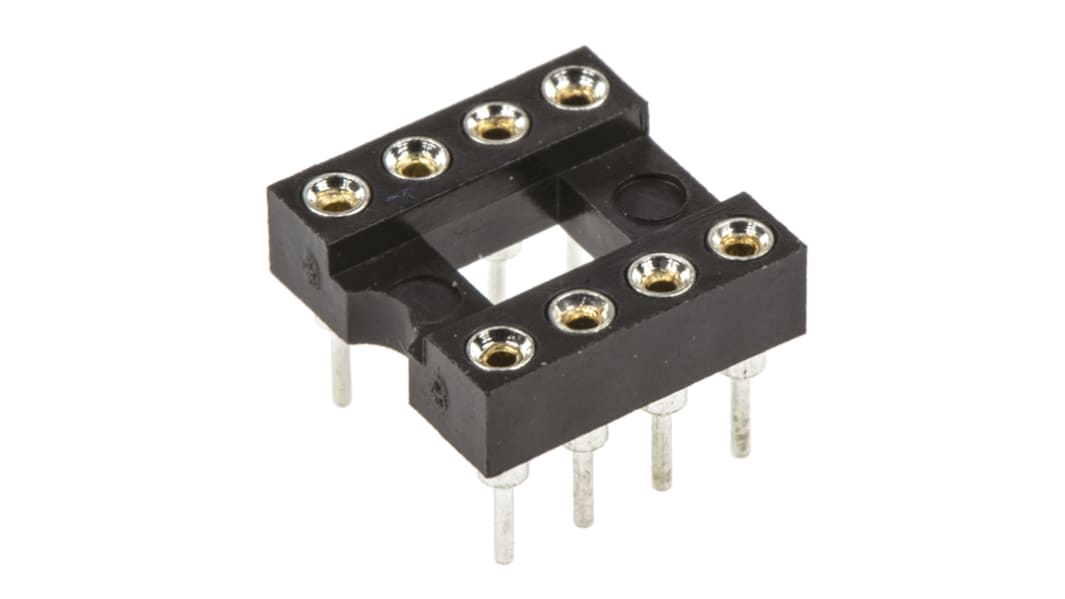

Assmann 2.54mm Open Frame IC DIP Sockets with Turned Pin Contacts
A range of open frame IC DIP sockets with a 2.54mm pitch. These 2.54mm PCB through hole mount IC DIP sockets have a black UL94V-0 PBT insulator and tin plated turned pin contacts.
Specifikationer
| Attribute | Value |
| Number of Contacts | 8 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Tin |
| Current Rating | 3A |
| Orientation | Vertical |
| Length | 10.16mm |
| Width | 10.16mm |
| Depth | 3mm |
| Dimensions | 10.16 x 10.16 x 3mm |
| Housing Material | PBT |
| Minimum Operating Temperature | -40°C |
| Voltage Rating | 100 V ac |
| Maximum Operating Temperature | +105°C |
| Contact Material | Brass, Phosphor Bronze |
