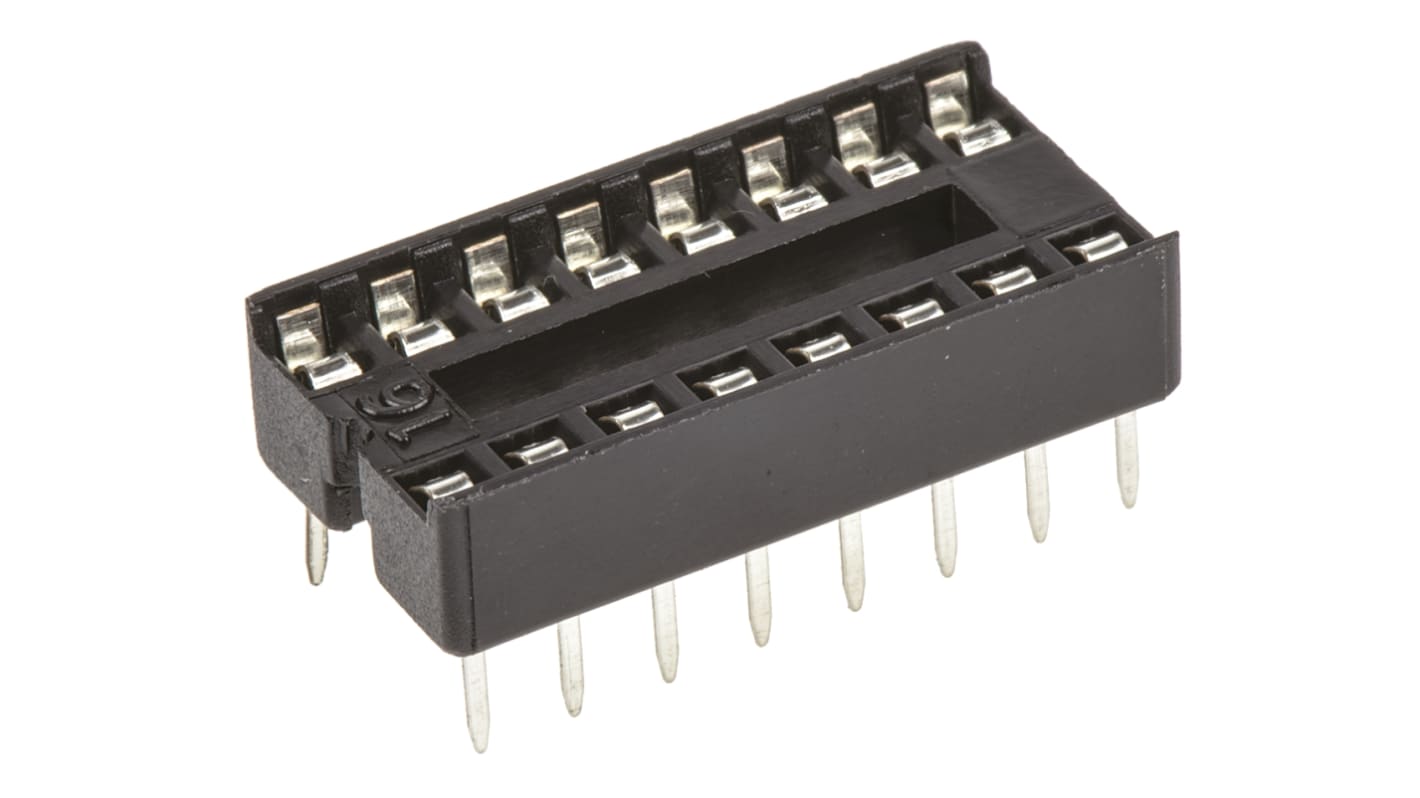

ASSMANN WSW 2.54mm Pitch Vertical 16 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 1A

  • RS-artikelnummer 674-2432
  • Tillv. art.nr A 16-LC-TT
  • Tillverkare / varumärke ASSMANN WSW
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): TW
Produktdetaljer

Assmann 2.54mm Open Frame IC DIP Sockets with Stamped Contacts

A range of open frame IC DIP sockets with a 2.54mm pitch. These 2.54mm PCB through hole mount IC DIP sockets have a black UL94V-0 PBT insulator and stamped tin plated phosphor bronze contacts.

Specifikationer
Attribute Value
Number of Contacts 16
Mounting Type Through Hole
Pin Type Stamped
Pitch 2.54mm
Row Width 7.62mm
Frame Type Open Frame
Termination Method Solder
Contact Plating Tin
Current Rating 1A
Orientation Vertical
Length 20.32mm
Width 10.16mm
Depth 5.1mm
Dimensions 20.32 x 10.16 x 5.1mm
Maximum Operating Temperature +85°C
Minimum Operating Temperature -55°C
Contact Material Phosphor Bronze
Housing Material PBT
Voltage Rating 60 V ac
2870 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each (In a Pack of 10)
2,068 kr
(exkl. moms)
2,585 kr
(inkl. moms)
Enheter
Per unit
Per Pack*
10 - 140
2,068 kr
20,68 kr
150 - 490
1,716 kr
17,16 kr
500 - 990
1,489 kr
14,89 kr
1000 - 2490
1,365 kr
13,65 kr
2500 +
1,199 kr
11,99 kr
