Winslow 1.77mm Pitch Vertical 64 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 10A
- RS-artikelnummer:
- 228-0078
- Tillv. art.nr:
- W3164/607TRC
- Tillverkare / varumärke:
- Winslow

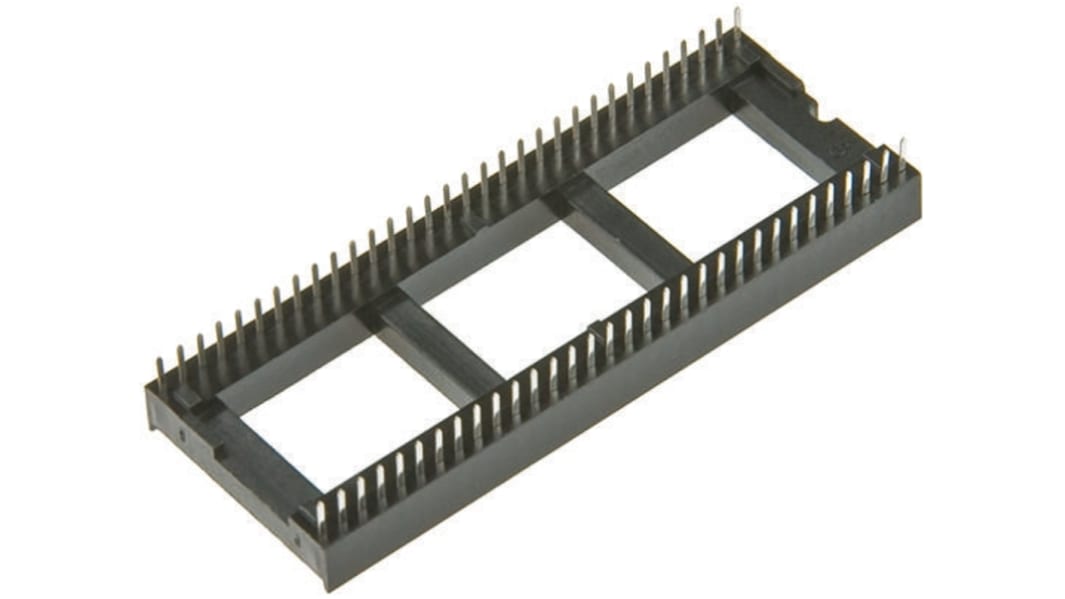

Denna bild representerar endast produktgruppen
Mängdrabatt möjlig
Antal (1 rör med 10 enheter)*
203,61 kr
(exkl. moms)
254,51 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 150 enhet(er) från den 05 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per Rør* |
|---|---|---|
| 10 - 140 | 20,361 kr | 203,61 kr |
| 150 - 490 | 19,152 kr | 191,52 kr |
| 500 - 990 | 18,189 kr | 181,89 kr |
| 1000 - 2490 | 17,36 kr | 173,60 kr |
| 2500 + | 15,792 kr | 157,92 kr |
*vägledande pris
- RS-artikelnummer:
- 228-0078
- Tillv. art.nr:
- W3164/607TRC
- Tillverkare / varumärke:
- Winslow
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Winslow | |
| Number of Contacts | 64 | |
| Mounting Type | Through Hole | |
| Pin Type | Stamped | |
| Pitch | 1.77mm | |
| Row Width | 19.05mm | |
| Frame Type | Open Frame | |
| Termination Method | Solder | |
| Contact Plating | Tin | |
| Current Rating | 10A | |
| Orientation | Vertical | |
| Length | 56.89mm | |
| Width | 5.05mm | |
| Depth | 21.59mm | |
| Dimensions | 56.89 x 5.05 x 21.59mm | |
| Contact Material | Phosphor Bronze | |
| Maximum Operating Temperature | +150°C | |
| Housing Material | PBT | |
| Minimum Operating Temperature | -65°C | |
| Välj alla | ||
|---|---|---|
Brand Winslow | ||
Number of Contacts 64 | ||
Mounting Type Through Hole | ||
Pin Type Stamped | ||
Pitch 1.77mm | ||
Row Width 19.05mm | ||
Frame Type Open Frame | ||
Termination Method Solder | ||
Contact Plating Tin | ||
Current Rating 10A | ||
Orientation Vertical | ||
Length 56.89mm | ||
Width 5.05mm | ||
Depth 21.59mm | ||
Dimensions 56.89 x 5.05 x 21.59mm | ||
Contact Material Phosphor Bronze | ||
Maximum Operating Temperature +150°C | ||
Housing Material PBT | ||
Minimum Operating Temperature -65°C | ||
- COO (Country of Origin):
- TW
Shrink DIP Sockets
Stamped and turned pin, low insertion force Shrink DIP sockets with a pin spacing of 0.07in
The stamped pins being tin-plated phosphor bronze, the turned pins having a gold over nickel-plated inner contact with a tin-plated brass outer shell
The stamped pins being tin-plated phosphor bronze, the turned pins having a gold over nickel-plated inner contact with a tin-plated brass outer shell
