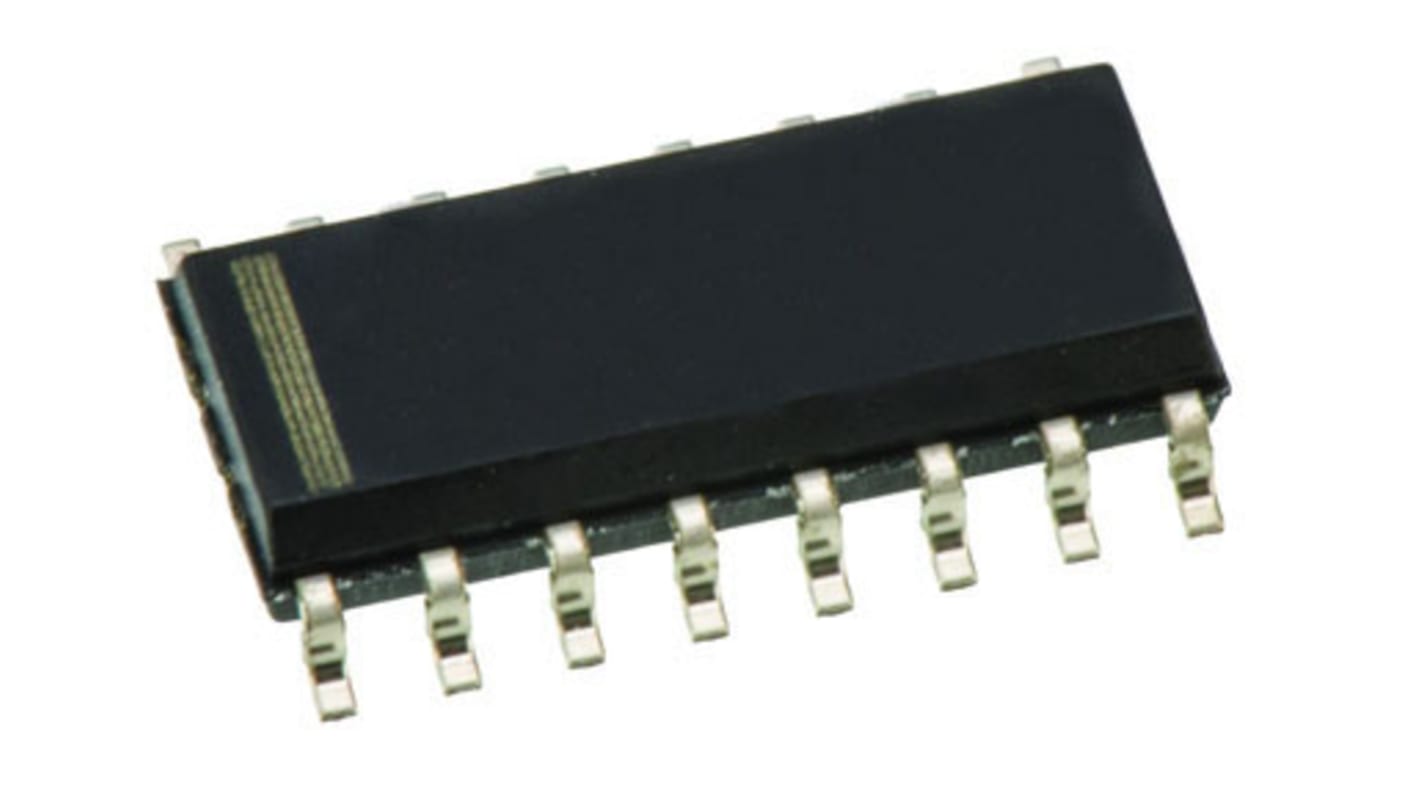

Texas Instruments, DAC Quad 12 bit-, 102ksps, ±0.6%FSR Serial (SPI/QSPI/Microwire), 16-Pin SOIC
- RS-artikelnummer:
- 662-1864
- Tillv. art.nr:
- TLV5614CD
- Tillverkare / varumärke:
- Texas Instruments
Tillfälligt slut i lager – restorder för leverans 2024-07-02
Lagt till varukorgen
Pris (ex. moms) Varje
255,74 kr
(exkl. moms)
319,68 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 7 | 255,74 kr |
| 8 - 19 | 221,25 kr |
| 20 + | 212,04 kr |
- RS-artikelnummer:
- 662-1864
- Tillv. art.nr:
- TLV5614CD
- Tillverkare / varumärke:
- Texas Instruments
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Digital to Analogue Converters 12 Bit, 2- 4- 8-Channels, Texas Instruments
A range of Dual, Quad and Eight channel 12-bit Digital to Analogue Converters (DACs) from Texas Instruments. The range includes both Parallel and Serial interface types with various output options.
Digital to Analogue Converters - Texas Instruments
Specifikationer
Attribute | Value |
|---|---|
| Architecture | Resistor String |
| Resolution | 12 bit |
| Conversion Rate | 102ksps |
| Full Scale Error | ±0.6%FSR |
| Integral Nonlinearity Error | ±4LSB |
| Number of DAC Channels | 4 |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 16 |
| Maximum Settling Time | 20µs |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Output Polarity | Unipolar |
| Voltage Reference | External |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3 V, 5 V |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | 70 °C |
| Dimensions | 9.9 x 3.91 x 1.58mm |
