    FTDI Chip TTL-232R-5V

    RS-artikelnummer:
    687-7770
    Tillv. art.nr:
    TTL-232R-5V
    Tillverkare / varumärke:
    FTDI Chip
    FTDI Chip
    Se kategorien
    1650 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    311,50 kr

    (exkl. moms)

    389,38 kr

    (inkl. moms)

    EnheterPer unit
    1 - 9311,50 kr
    10 - 19281,52 kr
    20 - 49267,52 kr
    50 - 99259,74 kr
    100 +237,33 kr
    RS-artikelnummer:
    687-7770
    Tillv. art.nr:
    TTL-232R-5V
    Tillverkare / varumärke:
    FTDI Chip
    COO (Country of Origin):
    CN

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    CN

    Produktdetaljer

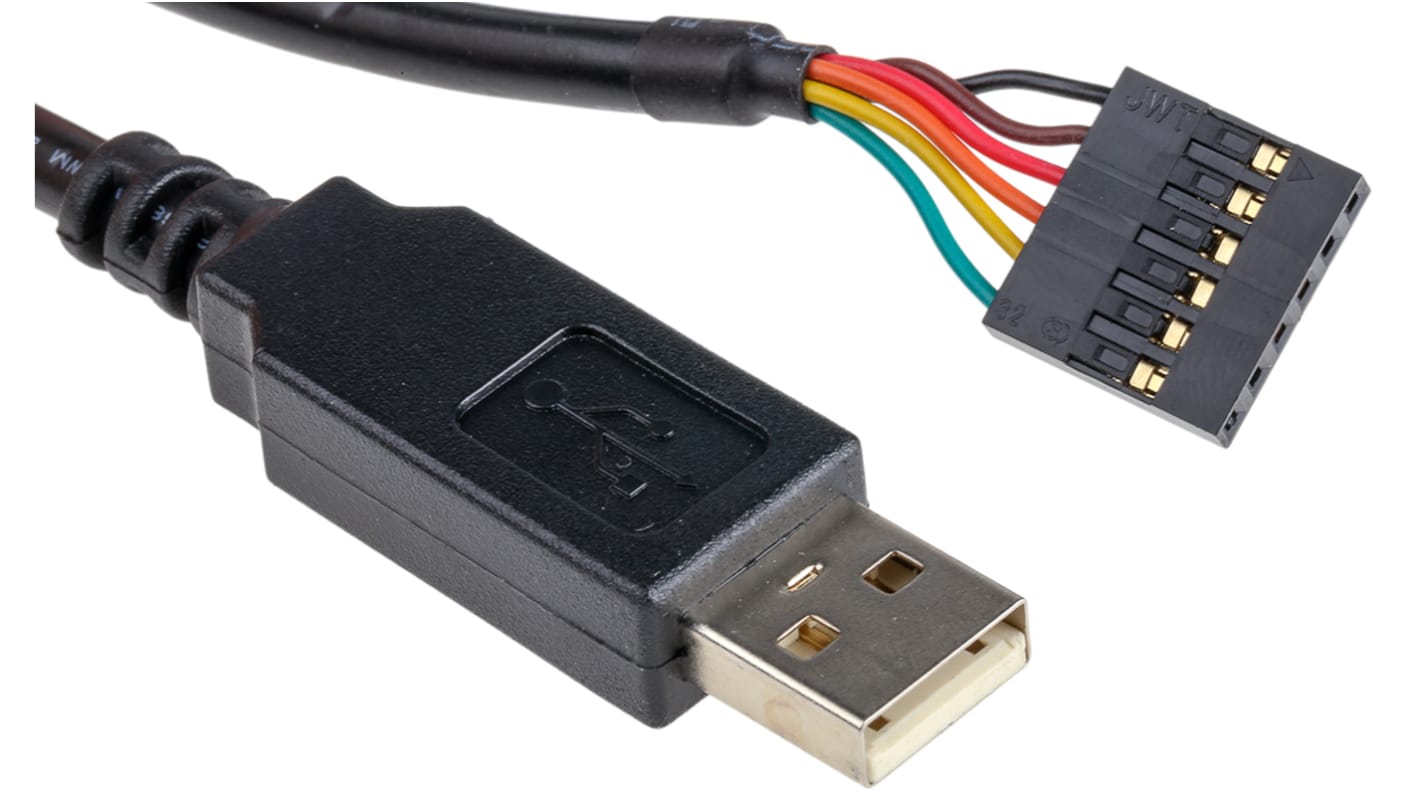

    USB to TTL UART Cable, FTDI Chip


    The FTDI Chip TTL-232x USB to Serial UART (TTL level) converter cables provide a simple and fast way to convert microcontroller UART serial I/O to USB. The TTL-232R contains a small circuit board which includes the FT232x chip. Encapsulated in a USB-A connector, making the cable easy and straight forward to use. The circuit is powered from the USB +5 V power pins, and any Vcc connection is always at +5 V dc. However products are available with signal TTL logic levels of either +3.3 V or +5 V.
    These cables are supported with Microsoft WHQL certified VCP drivers for Windows, Apple Mac, and Linux. All of which are available, royalty-free from the FTDI website. http://www.ftdichip.com

    • USB 2.0 compatible
    • Cable length: 1.8m
    • Data transfer rate: Up to 3Mbps (FT232R parts), 12Mbps (FT232H parts)
    • Unique serial number attached, used for security purposes whilst transferring files via cable
    • Powered from USB connector
    • Various UART-end connector options available
    • CE and FCC compliant


    Available Options:


    USB connector with PCB only (no cables)
    FTDI Chip TTL-232R-3V3-PCB (RS 429-284) +3.3 V UART signalling
    FTDI Chip TTL-232R-5V-PCB (RS 429-278) +5 V UART signalling

    USB connector and wire ended 6 core with 24 AWG output
    FTDI Chip TTL-232RG-VSW3V3-WE (RS 715-8522) +3.3 V UART signalling
    FTDI Chip TTL-232RG-VSW5V-WE (RS 730-0155) +5 V UART signalling
    FTDI Chip TTL-232RG-VREG3V3-WE (RS 715-8529) +3.3 V UART signalling
    FTDI Chip TTL-232RG-VREG1V8-WE (RS 715-8525) +1.8 V UART signalling
    FTDI Chip TTL-232RG-VIP-WE (RS 715-8513) includes voltage reference for setting UART signalling levels
    FTDI Chip TTL-232R-3V3-WE (RS 429-303) +3.3 V UART signalling (v1)
    FTDI Chip TTL-232R-5V-WE (RS 687-7786) +5 V UART signalling (v1)

    USB connector and 6 way, 0.1 inch single inline connector
    FTDI Chip TTL-232R-3V3 (RS 429-307) +3.3 V UART signalling
    FTDI Chip TTL-232R-5V (RS 687-7770) +5 V UART signalling

    USB connector and 8-pin, keyed 2 mm pitch connector
    FTDI Chip TTL-232R-3V3-2mm (RS 687-7780) +3.3 V UART signalling

    USB connector and 3.5 mm audio jack connector
    FTDI Chip TTL-232R-5V-AJ (RS 687-7774) +5 V UART signalling
    FTDI Chip TTL-232R-3V3-AJ (RS 687-7783) +3.3 V UART signalling
