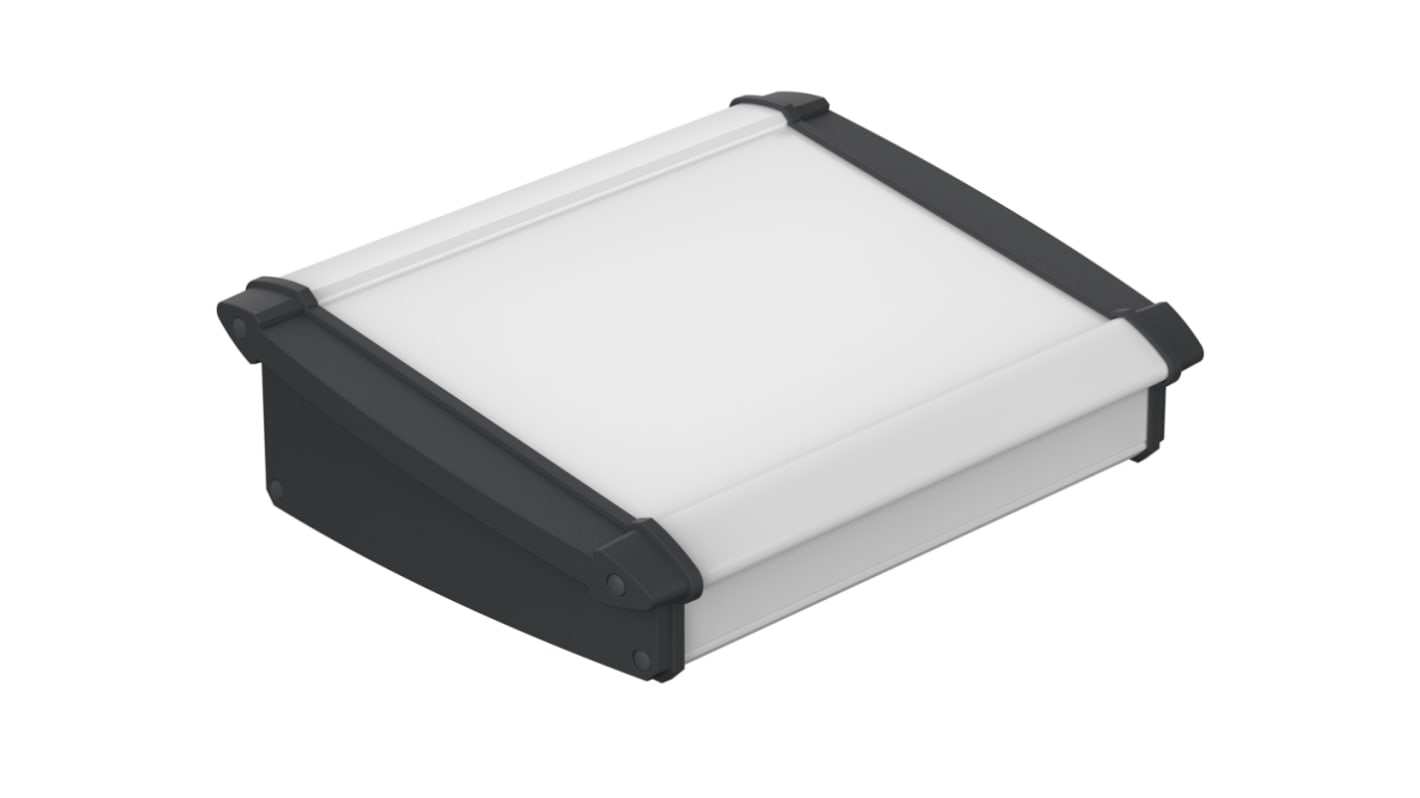

    Bopla Alu-Topline Series Black, Natural Anodised ABS, Aluminium Desktop Enclosure, Sloped Front, 200 x 181.2 x 68.2mm

    RS-artikelnummer:
    704-3947
    Tillv. art.nr:
    92865200.MT6
    Tillverkare / varumärke:
    Bopla
    Bopla
    Se alla Desktop Enclosures
    59 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    593,24 kr

    (exkl. moms)

    741,55 kr

    (inkl. moms)

    EnheterPer unit
    1 - 9593,24 kr
    10 - 14569,46 kr
    15 +544,61 kr
    RS-artikelnummer:
    704-3947
    Tillv. art.nr:
    92865200.MT6
    Tillverkare / varumärke:
    Bopla

    Lagstiftning och ursprungsland


    Produktdetaljer

    Bopla Alu-Topline Enclosures - Natural-Coloured Anodised, End-Covers Black


    Introducing the Alu-Topline Enclosure series from Bopla. Theses desktop enclosures are designed to house electrical and electronic components in Industrial applications. They offer a split profile which provides easier and faster assembly of components and plastic end covers to complete the enclosure. Incorporated into the design is a recessed surface for mounting keypads, switches or various operating components.

    Why would you buy these enclosures?


    Bopla Alu-Topline enclosures are desktop enclosures, the perfect alternative to general purpose enclosures & Junction boxes for creating a control system. They have aluminium profiles equipped with slots and screwing channels to accept PCBs, mounting plates and a recessed membrane keypad area. The Alu-Topline series also has a range of accessories that can be purchased separately to complete your enclosure solution.

    Features and Benefits


    • Aluminium enclosure
    Natural-coloured anodised, End-cover black
    • Slop front
    • Recessed membrane keypad area
    • Grooves mounts inside
    • Horizontally-divided profiles
    • Corrosion resistant
    • Recyclable
    • IP40/DIN EN 60529
    • IP54 (Optional)

    Enclosure Material
    • Extruded profiles: Al Mg Si 0.5 anodised; plastic lid: ABS

    Bopla Alu-Topline Enclosures Options


    External Dimension Size
    • 150 x 181.2 x 53.2 mm = RS stock no: 704-3931
    • 200 x 181.2 x 53.2 mm = RS stock no: 704-3934
    • 250 x 181.2 x 53.2 mm = RS stock no: 704-3938
    • 250 x 181.2 x 68.2 mm = RS stock no: 704-3940
    • 300 x 181.2 x 68.2 mm = RS stock no: 704-3944
    • 200 x 181.2 x 68.2 mm = RS stock no: 704-3947

    Typical Applications


    • Cable/Wire Management
    • IT/Server
    • System Control
    • Oil and Gas Production
    • Food and Beverage Industry
    • Telecommunication Industry

    (IP) Ingress Protection and what it means


    IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

    Bopla Alu-Topline Compatible Accessories


    Gasket Seals for ingress protection IP 54
    • Alu-Topline Seals = RS stock no: 704-3953 & 704-3956

    Bopla Alu-Topline Mounting Kits


    • Length: 150 mm; RS stock no: 704-3950
    • Length: 244 mm; RS stock no: 704-3962
    • Length: 294 mm; RS stock no: 704-3966
    • Length: 194 mm; RS stock no: 704-3969

    Insulating strip for PCB mounting = RS stock no: 704-3975
    Enclosure Feet = RS stock no: 704-3978

    FAQ’s


    What is supplied?
    • Aluminium enclosure profile, 2 x end covers


    Specifikationer

    AttributeValue
    Body MaterialABS, Aluminium
    External Length200 mm
    External Width181.2 mm
    External Height68.2 mm
    External Dimensions200 x 181.2 x 68.2mm
    Weight715g
    Sloped FrontYes
    ColourBlack, Natural Anodised
    SeriesAlu-Topline
