RS PRO 25 Way Right Angle Through Hole D-sub Connector Socket, 2.77mm Pitch, with 4-40 UNC, Threaded Insert
- RS-artikelnummer:
- 239-5906
- Tillverkare / varumärke:
- RS PRO
2080 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
21,866 kr
(exkl. moms)
27,332 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 10 - 240 | 21,866 kr | 218,66 kr |
| 250 - 990 | 19,696 kr | 196,96 kr |
| 1000 - 4990 | 17,489 kr | 174,89 kr |
| 5000 - 9990 | 15,337 kr | 153,37 kr |
| 10000 + | 14,151 kr | 141,51 kr |
- RS-artikelnummer:
- 239-5906
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer

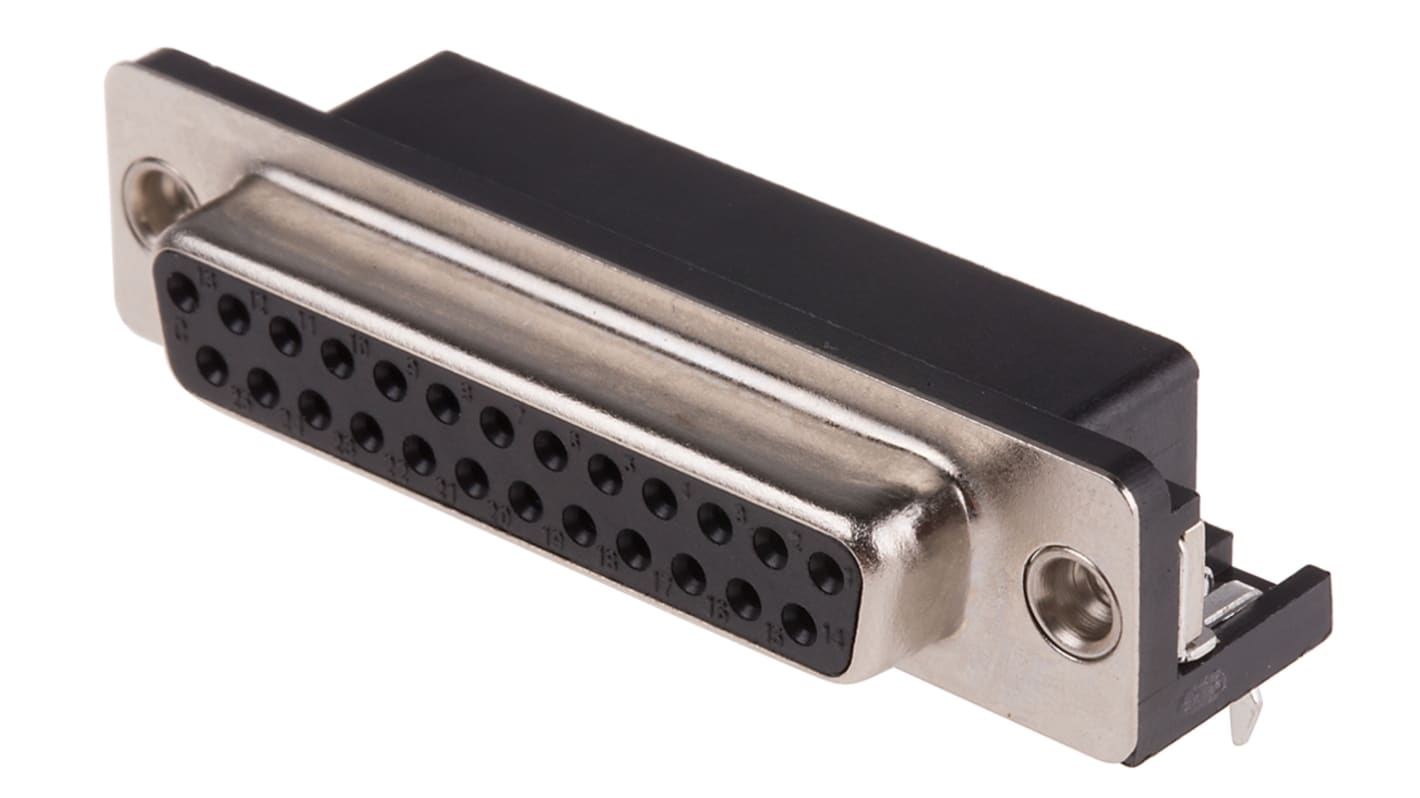

RS PRO 25 Way Right Angle Through Hole D-Sub Connector Socket, 2.77 mm Pitch, with 4-40 UNC, Threaded Insert
Choose this RS PRO solder-based D-sub connector socket for a reliable way to link your electronic devices. It creates an interface between circuit boards, computers and displays.
The outer shell is made of polyethylene terephthalate (PET). This strong yet lightweight material won't strain or bend the connecting pins, so you can rest assured that there won't be signal or power transmission interference. The gold contact plating extends the component's lifespan by protecting it from wear and tear. The highly conductive phosphor bronze contact material ensures a constant flow of power and data between the devices.
This product contains only minimal amounts of any hazardous materials as it complies with Restriction of Hazardous Substances (RoHS) directives. You can use this socket for industrial and military applications.
The outer shell is made of polyethylene terephthalate (PET). This strong yet lightweight material won't strain or bend the connecting pins, so you can rest assured that there won't be signal or power transmission interference. The gold contact plating extends the component's lifespan by protecting it from wear and tear. The highly conductive phosphor bronze contact material ensures a constant flow of power and data between the devices.
This product contains only minimal amounts of any hazardous materials as it complies with Restriction of Hazardous Substances (RoHS) directives. You can use this socket for industrial and military applications.
Features and Benefits
- Right angle body orientation
- Phosphor bronze material
- Gold contact plating
- Current rating of 5 A
- Voltage rating of 350 V
- Dimensions of 53.04 (length) x 18.4 (width) x 12.5 mm (depth)
- Female gender
- PET housing material
- Maximum operating temperature of +105°C
- Minimum operating temperature of -55°C
- Through-hole mounting type
- Mounting hardware of 4-40 UNC, threaded insert type
- 25 contacts
- Solder termination method
- Pitch of 2.77 mm
Specifikationer
Attribute | Value |
|---|---|
| Number of Contacts | 25 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.77mm |
| Termination Method | Solder |
| Mounting Hardware | 4-40 UNC, Threaded Insert |
| Current Rating | 5.0A |
| Housing Material | PET |
| Voltage Rating | 350.0 V |
| Length | 53.04mm |
| Width | 18.4mm |
| Depth | 12.5mm |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Dimensions | 53.04 x 18.4 x 12.5mm |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -55.0°C |
