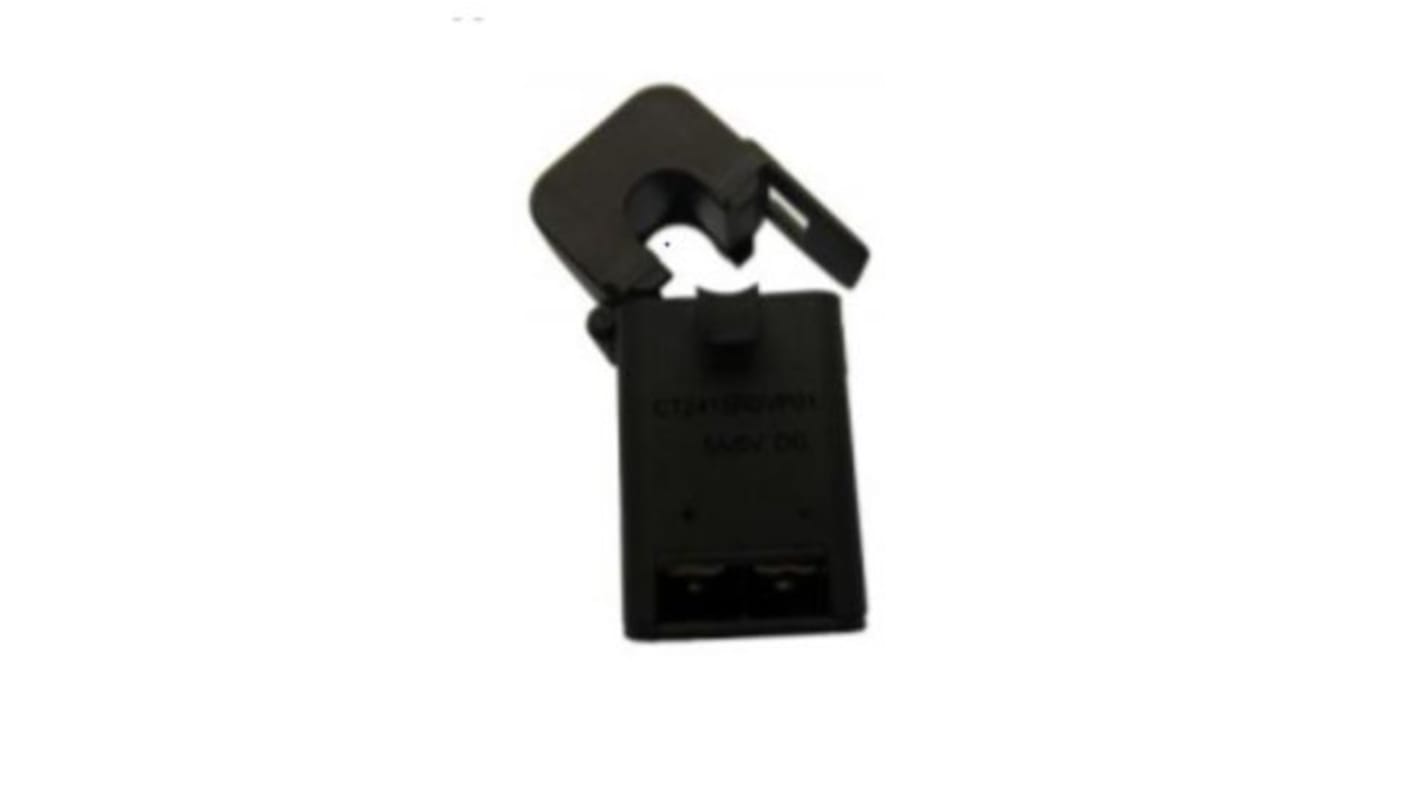

RS PRO Split Core Current Transducer, 5A Input

Se alla Current Transformers

Antal (1 enhet)*

535,04 kr

(exkl. moms)

668,80 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 7 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +535,04 kr

*vägledande pris

RS-artikelnummer:
210-0645
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Series

CVH5R0VP01

Transformer Type

Split Core

Input Current

5A

Overall Height

51mm

Overall Depth

26.5mm

Minimum Temperature

-20°C

Maximum Temperature

+65°C

Mounting Type

Panel Mount

COO (Country of Origin):
CN

RS PRO AC Current Transducers – Self Powered


RS PRO are pleased to introduce a series of AC current transducers. They are self-powered transducers for the electronic measurement of AC sinusoidal waveforms with galvanic isolation between the primary (high power) and the secondary circuit (electronic circuit). AC current transducers are commonly found in applications of automation control systems - analogy current reading for remote monitoring.

What is a current transducer?


A current transducer is a device that converts the current into a standard electrical signal. It is formed by four parts; sensitive component, conversion circuit, conversion component, and power circuit.

What is the difference between a current transformer and a current transducer?


A current transformer is a power transmission unit and a current transducer is a signal transmission unit.

Features and Benefits


• Transducer for the electronic measurement of AC sinusoidal waveforms

• Data loggers: self-powered transducer does not drain data logger batteries

• Panel meter: simple connection displays power consumption

• Average responding

• Voltage output

• Jumper selectable ranges

• Compact size

• Output signal: 10@Ipn VDC

• Supply voltage: Self-powered

• Frequency bandwidth: 5-60 Hz

• Insulated plastic case recognised according to UL 94-V0

Specification


• Operating temperature: -20 °C to +65 °C

• Storage temperature: -20 °C to +65 °C

• Operating humidity: < 85% RH, NO condensation, In-house & any direction installable

• Storage humidity (noncondensing) <85% RH

• Weight: 45g

RS PRO AC Current Transducers Range Options


• 5A, AC Current Transducer; RS stock no: 210-0645

• 15A, AC Current Transducer; RS stock no: 210-0640

• 50A, AC Current Transducer; RS stock no: 210-0643

Applications


• Panel Meters

• Automation systems

• Analog current reading - remote monitoring

• Power consumption

Why would you choose RS PRO for current transducers?


RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products has been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
