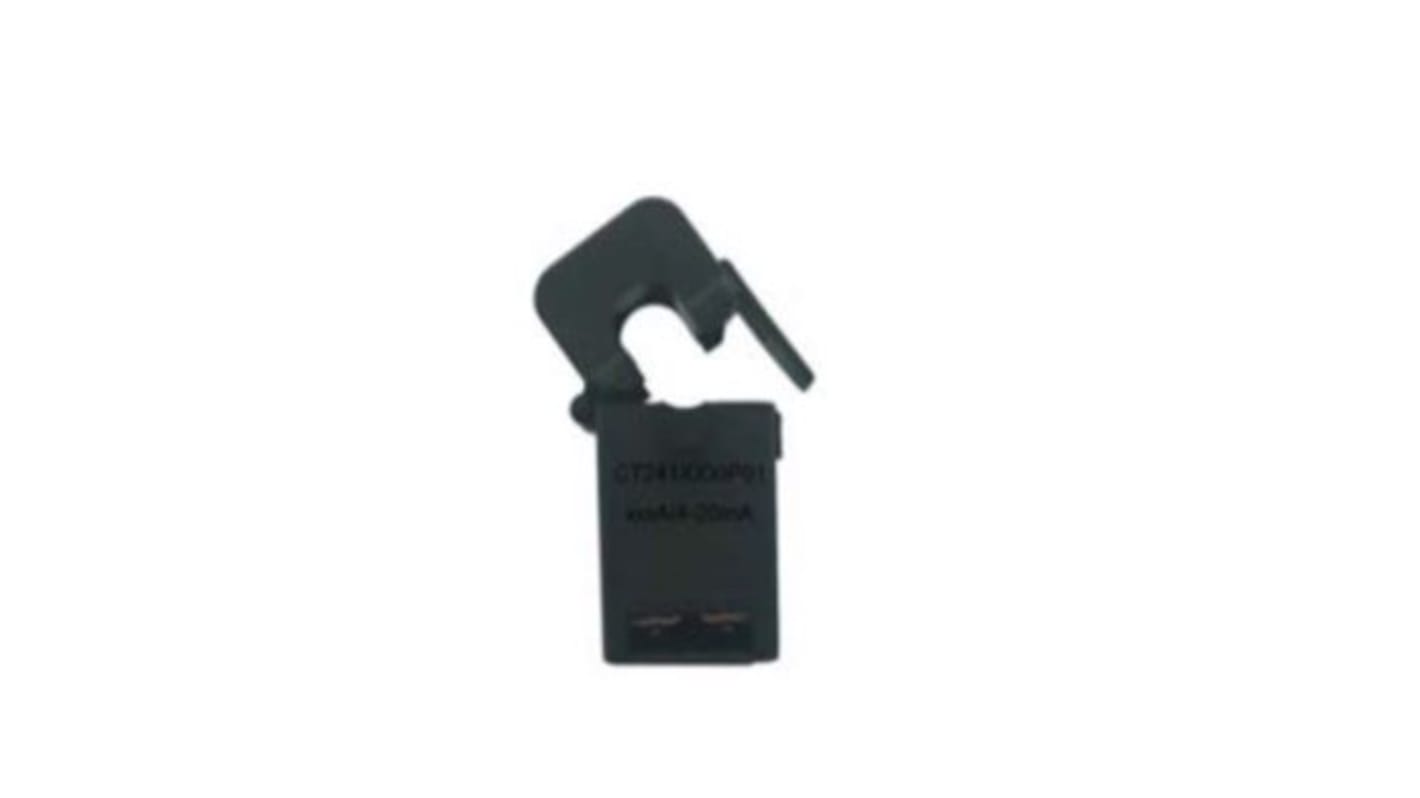

RS PRO Split Core Current Transducer, 50A Input, 24 V

RS-artikelnummer:: 210-0642
Tillverkare / varumärke:: RS PRO

RS PRO Split Core Current Transducer, 50A Input, 24 V

Pris (ex. moms) Varje

880,77 kr

(exkl. moms)

1 100,96 kr

(inkl. moms)

52 I lager för avsändande samma dag*

4 Inom 1 arbetsdag(ar) (UK lager)

* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.

FRI frakt på alla onlineordrar över 500,00 kr

Enheter	Per enhet
1 +	880,77 kr

RS-artikelnummer:: 210-0642
Tillverkare / varumärke:: RS PRO

RS PRO Datasheet

RS PRO AC Current Transducers

RS PRO are pleased to introduce a series of AC current transducers. They are transducers for the electronic measurement of AC sinusoidal waveforms with galvanic isolation between the primary (high power) and the secondary circuit (electronic circuit). AC current transducers are commonly found in applications of automation control systems - analogy current reading for remote monitoring.

What is a current transducer?

A current transducer is a device that converts the current into a standard electrical signal. It is formed by four parts; sensitive component, conversion circuit, conversion component, and power circuit.

What is the difference between a current transformer and a current transducer?

A current transformer is a power transmission unit and a current transducer is a signal transmission unit.

Features and Benefits

• AC sinusoidal measurement

• Panel mounting

• Average responding

• Voltage output

• Compact size

• Transducer for the electronic measurement of AC sinusoidal waveforms

• Output signal: 4-20 mA/dc

• Supply voltage (±5%): 18-35 Vdc

• Frequency bandwidth: 5-60 Hz

• Insulated plastic case recognised according to UL 94-V0

Specification

• Operating temperature: -25 °C ∼+ 65 °C

• Storage temperature: -25 °C ∼+ 65 °C

• Supply Voltage: 24 V DC

• Operating humidity: < 85% RH, NO condensation, In-house & any direction installable

• Storage humidity (noncondensing) <85% RH

• Weight: 45g

RS PRO AC Current Transducers Range Options

• 5A, AC Current Transducer; RS stock no: 210-0644

• 15A, AC Current Transducer; RS stock no: 210-0639

• 50A, AC Current Transducer; RS stock no: 210-0642

Applications

• Panel Meters

• Automation systems

• Analog current reading - remote monitoring

• Power consumption

Why would you choose RS PRO for current transducers?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products has been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Attribute	Value
Series	CVH500IP01
Transformer Type	Split Core
Supply Voltage	24 V
Input Current	50A
Overall Height	51mm
Overall Depth	26.5mm
Minimum Temperature	-25°C
Maximum Temperature	+65°C
Mounting Type	Panel Mount
