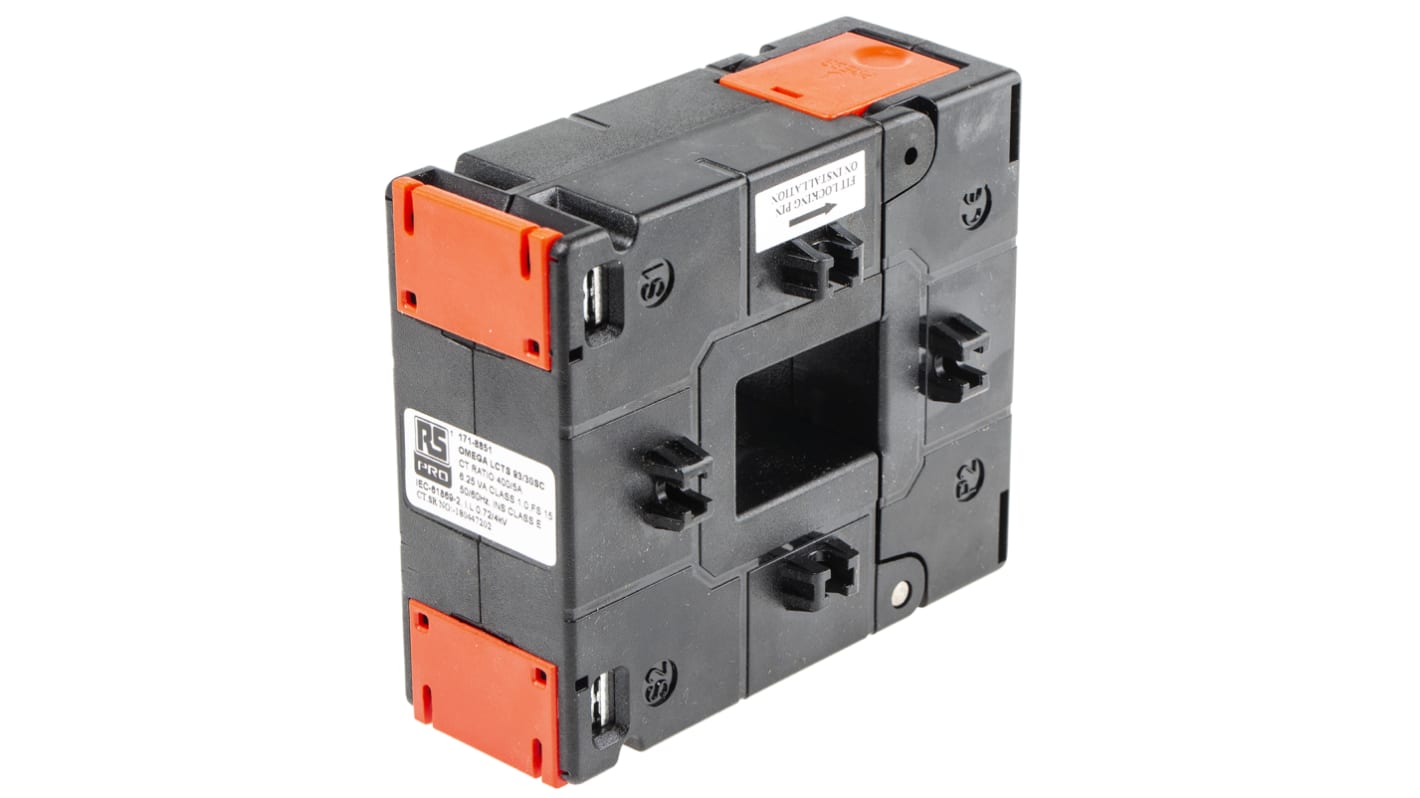

RS PRO Base Mounted Current Transformer, 400A Input, 400:5, 5 A Output, 33 x 23mm Bore

Se alla Current Transformers
Mängdrabatt möjlig

Antal (1 enhet)*

608,06 kr

(exkl. moms)

760,08 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Lagerinformation är för närvarande otillgänglig
Enheter
Per enhet
1 - 4608,06 kr
5 - 9583,86 kr
10 - 24559,55 kr
25 - 49535,14 kr
50 +510,83 kr

*vägledande pris

RS-artikelnummer:
171-8851
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Current Ratio

400:5

Bore Size

33 x 23mm

Transformer Type

Base Mounted

Input Current

400A

Output Current

5 A

Overall Height

106mm

Overall Width

93mm

Overall Depth

40mm

Minimum Temperature

+20°C

Maximum Temperature

+70°C

Mounting Type

Surface Mount

Dimensions

93 x 40 x 106 mm

COO (Country of Origin):
IN

RS PRO Current Transformers


The RS PRO base mounted split core transformer has a current ratio of 400:5. It offers an efficient method by which the current can be measured without breaking the conductor, thereby reducing installation and commissioning time. It is a surface mounted device.

Features and Benefits


• Cost-effective moulded case
• Flame retardant grade enclosure
• Insulation class: E
• Operating temperature ranges between 20°C and 70°C
• System voltage 720V max
• Test voltage 3kV 50Hz 1min

Applications


• Commercial electric power distribution
• Electrical substations

Certifications


• IEC - 61010 - 2
• IEC 60044-1/IEC 61869-1
• IP20 rated
• UL94V-0
