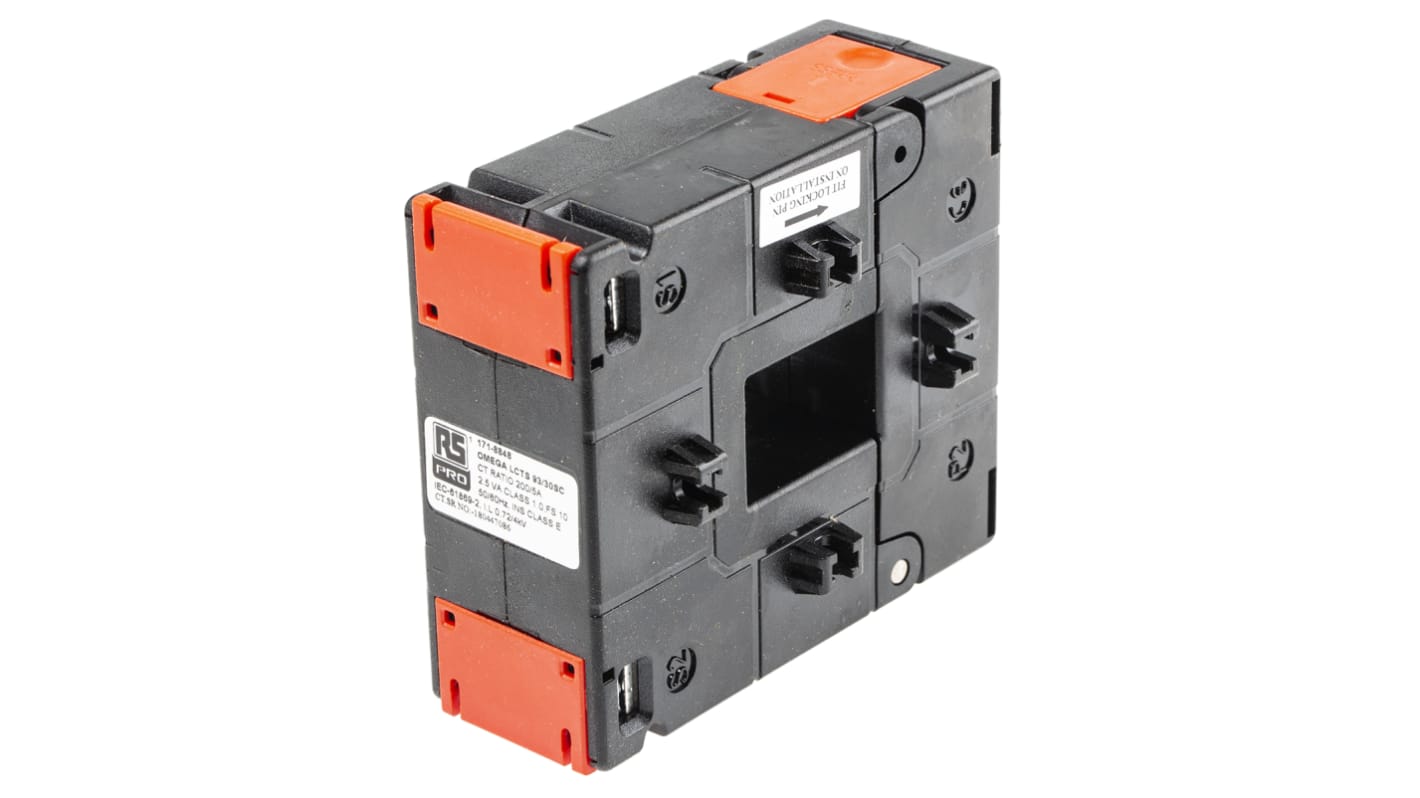

    RS PRO Base Mounted Current Transformer, 200A Input, 200:5, 5 A Output, 33 x 23mm Bore

    RS-artikelnummer:
    171-8848
    Tillverkare / varumärke:
    RS PRO
    RS PRO
    Se alla Current Transformers
    16 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    419,31 kr

    (exkl. moms)

    524,14 kr

    (inkl. moms)

    EnheterPer unit
    1 - 4419,31 kr
    5 - 9402,57 kr
    10 - 24385,72 kr
    25 - 49368,97 kr
    50 +352,23 kr
    RS-artikelnummer:
    171-8848
    Tillverkare / varumärke:
    RS PRO
    COO (Country of Origin):
    IN

    Datablad


    Lagstiftning och ursprungsland

    COO (Country of Origin):
    IN

    Produktdetaljer

    RS PRO Current Transformers


    The RS PRO base mounted split core transformer has a current ratio of 200:5. It offers an efficient method by which the current can be measured without breaking the conductor, thereby reducing installation and commissioning time. It is a surface mounted device.


    Features and Benefits


    • Cost-effective moulded case
    • Flame retardant grade enclosure
    • Insulation class: E
    • Operating temperature ranges between 20°C and 70°C
    • System voltage 720V max
    • Test voltage 3kV 50Hz 1min


    Applications


    • Commercial electric power distribution
    • Electrical substations


    Certifications


    • IEC - 61010 - 2
    • IEC 60044-1/IEC 61869-1
    • IP20 rated
    • UL94V-0



    Specifikationer

    AttributeValue
    Current Ratio200:5
    Bore Size33 x 23mm
    Transformer TypeBase Mounted
    Input Current200A
    Output Current5 A
    Overall Height106mm
    Overall Width93mm
    Overall Depth40mm
    Minimum Temperature+20°C
    Maximum Temperature+70°C
    Mounting TypeSurface Mount
    Dimensions93 x 40 x 106 mm
