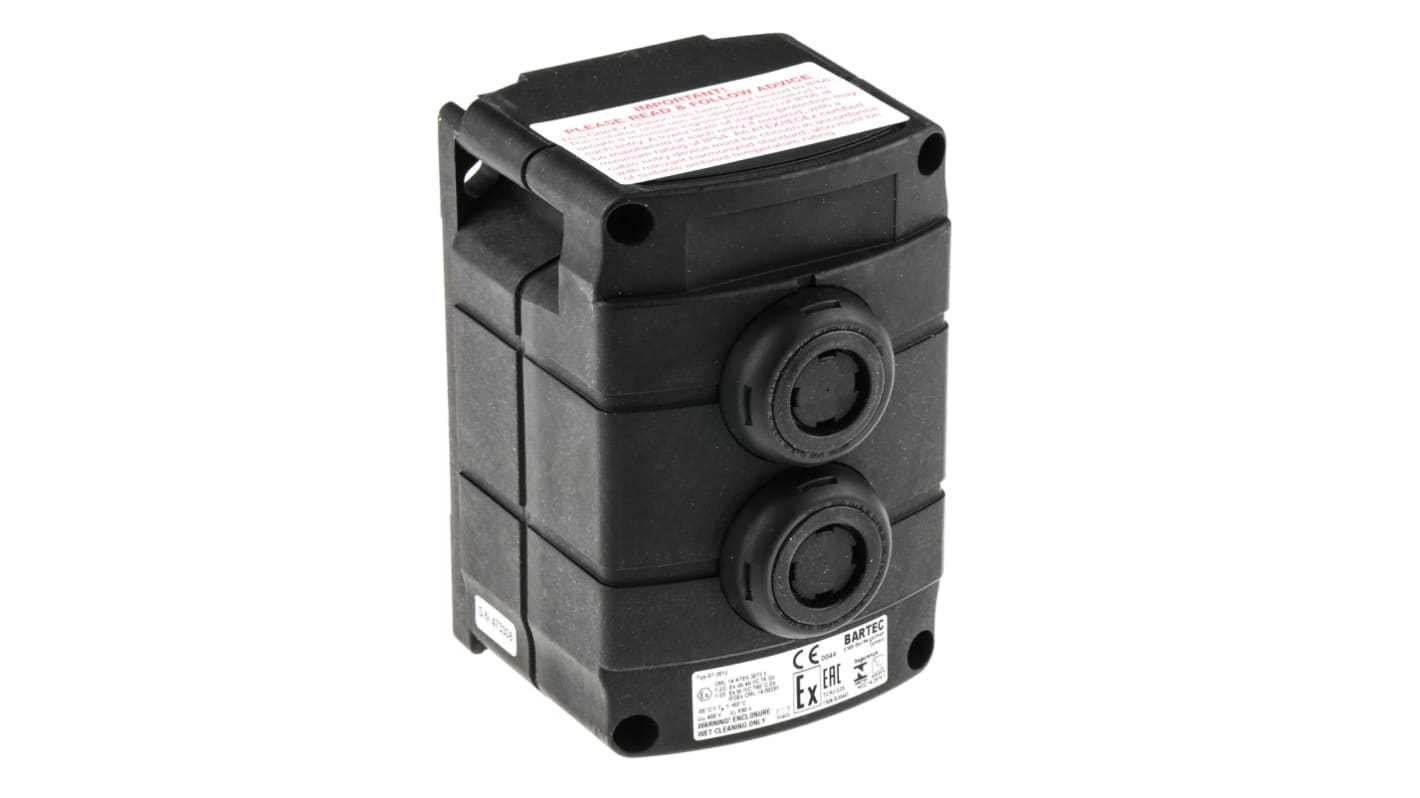

Bartec Push Button Control Station, Thermoplastic, IP66, IP67

Se alla Control Stations

Antal (1 enhet)*

2 945,49 kr

(exkl. moms)

3 681,86 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 17 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +2 945,49 kr

*vägledande pris

RS-artikelnummer:
282-1786
Tillv. art.nr:
07-3512-10P74P74
Tillverkare / varumärke:
Bartec
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Bartec

Enclosure Material

Thermoplastic

IP Rating

IP66, IP67

Cutout Diameter

22mm

Hazardous Area Certification

ATEX

Maximum Current

16A

Maximum Operating Temperature

+60°C

Minimum Operating Temperature

-55°C

Terminal Type

Wire Lead

RoHS-status: Inte relevant

COO (Country of Origin):
DE

Multi-Way Pushbutton


Two- or three-way
One contact block for each pushbutton
Supplied with red, green, yellow and white coloured push-in inserts

Group and Category

II 2 G EEx e d m IIC T6

Certificate No.

PTB 00 ATEX 1068

Approvals

II 2 G EEx e d IIC T6


Bartec ComEx Control Stations


The Bartec comEx system offers control and indicating stations that are flexible and adaptable to your needs. You have the choice between three standard enclosures which can accommodate up to three different control and indicating devices.

Either stuffing box glands in M20 x 1.5 and M25 x 1.5 made of plastic or cable glands made of metal are available for the electrical connection. The plastic glands require no lock nuts.
Metal glands are screwed into a metal earth platesheet inside of the enclosure.
Maximum amount of cable clands: two off M20.
