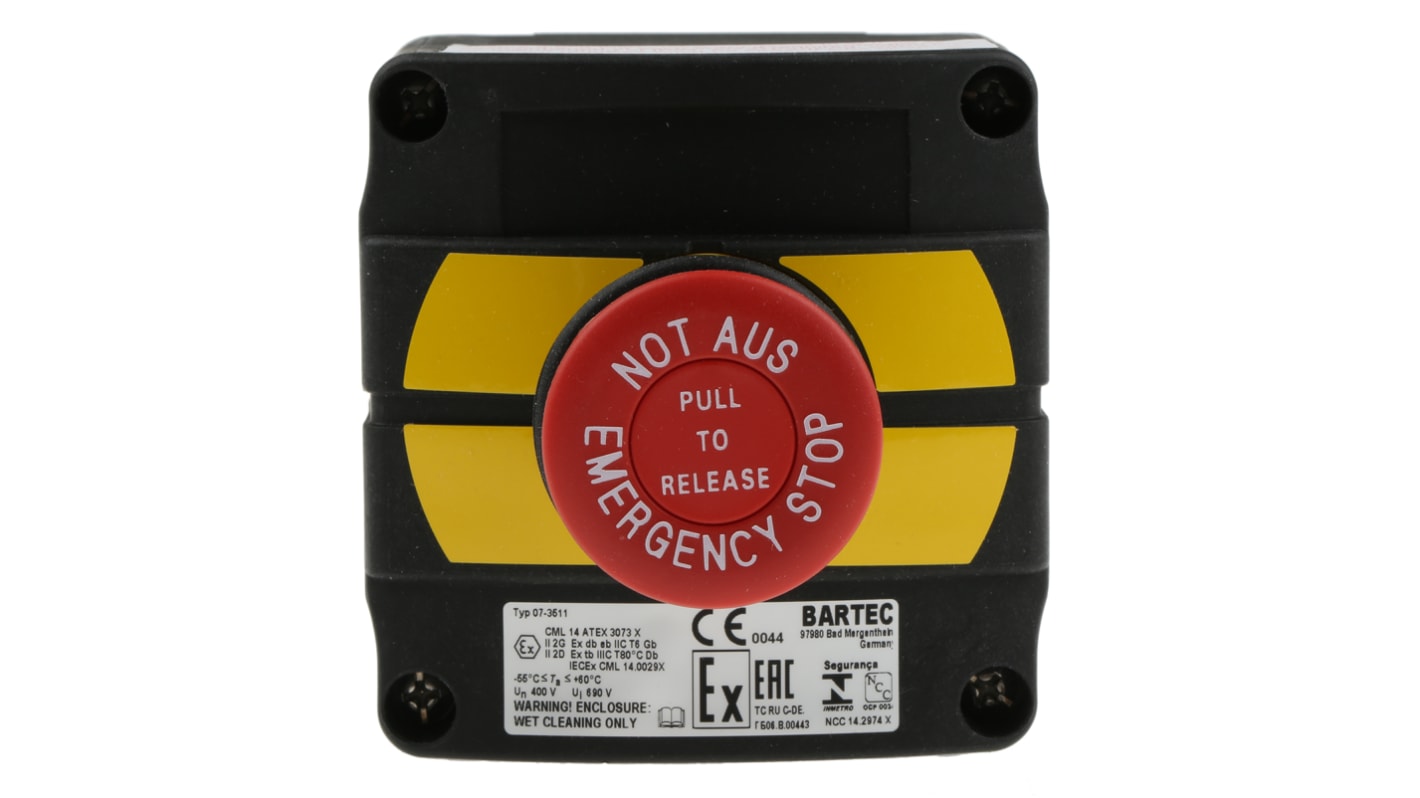

Bartec Control Station Switch - SPDT, Thermoplastic, Red, Emergency Stop, IP66, IP67

RS-artikelnummer:: 282-1742
Tillv. art.nr:: 07-3511-10N84
Tillverkare / varumärke:: Bartec

Bartec Control Station Switch - SPDT, Thermoplastic, Red, Emergency Stop, IP66, IP67

Antal (1 enhet)*

2 310,43 kr

(exkl. moms)

2 888,04 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

Dessutom levereras 30 enhet(er) från den 29 december 2025
Dessutom levereras 5 enhet(er) från den 29 december 2025
Dessutom levereras 1 enhet(er) från den 19 februari 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	2 310,43 kr

*vägledande pris

RS-artikelnummer:: 282-1742
Tillv. art.nr:: 07-3511-10N84
Tillverkare / varumärke:: Bartec

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Bartec
	Series	ComEx
	Push Button Marking	Emergency Stop
	Push Button Colour	Red
	Enclosure Colour	Black
	Contact Configuration	SPDT
	Enclosure Material	Thermoplastic
	IP Rating	IP66, IP67
	Cutout Diameter	22mm
	Hazardous Area Certification	ATEX
	Maximum Operating Temperature	+60°C
	Maximum AC Voltage	250V
	Maximum DC Voltage	110V
	Minimum Operating Temperature	-55°C
	Maximum Current	16A

	Välj alla
	Brand Bartec
	Series ComEx
	Push Button Marking Emergency Stop
	Push Button Colour Red
	Enclosure Colour Black
	Contact Configuration SPDT
	Enclosure Material Thermoplastic
	IP Rating IP66, IP67
	Cutout Diameter 22mm
	Hazardous Area Certification ATEX
	Maximum Operating Temperature +60°C
	Maximum AC Voltage 250V
	Maximum DC Voltage 110V
	Minimum Operating Temperature -55°C
	Maximum Current 16A

RoHS-status: Inte relevant

COO (Country of Origin):: DE

Single Emergency Stop

Pull-to-reset, designed to prevent accidental operation
Lockable version is padlockable in the actuated position to prevent restart

Group and Category

II 2 G EEx e d m IIC T6

Certificate No.

PTB 00 ATEX 1068

Approvals

II 2 G EEx e d IIC T6

Bartec ComEx Control Stations

The Bartec comEx system offers control and indicating stations that are flexible and adaptable to your needs. You have the choice between three standard enclosures which can accommodate up to three different control and indicating devices.

Either stuffing box glands in M20 x 1.5 and M25 x 1.5 made of plastic or cable glands made of metal are available for the electrical connection. The plastic glands require no lock nuts.
Metal glands are screwed into a metal earth platesheet inside of the enclosure.
Maximum amount of cable clands: two off M20.
