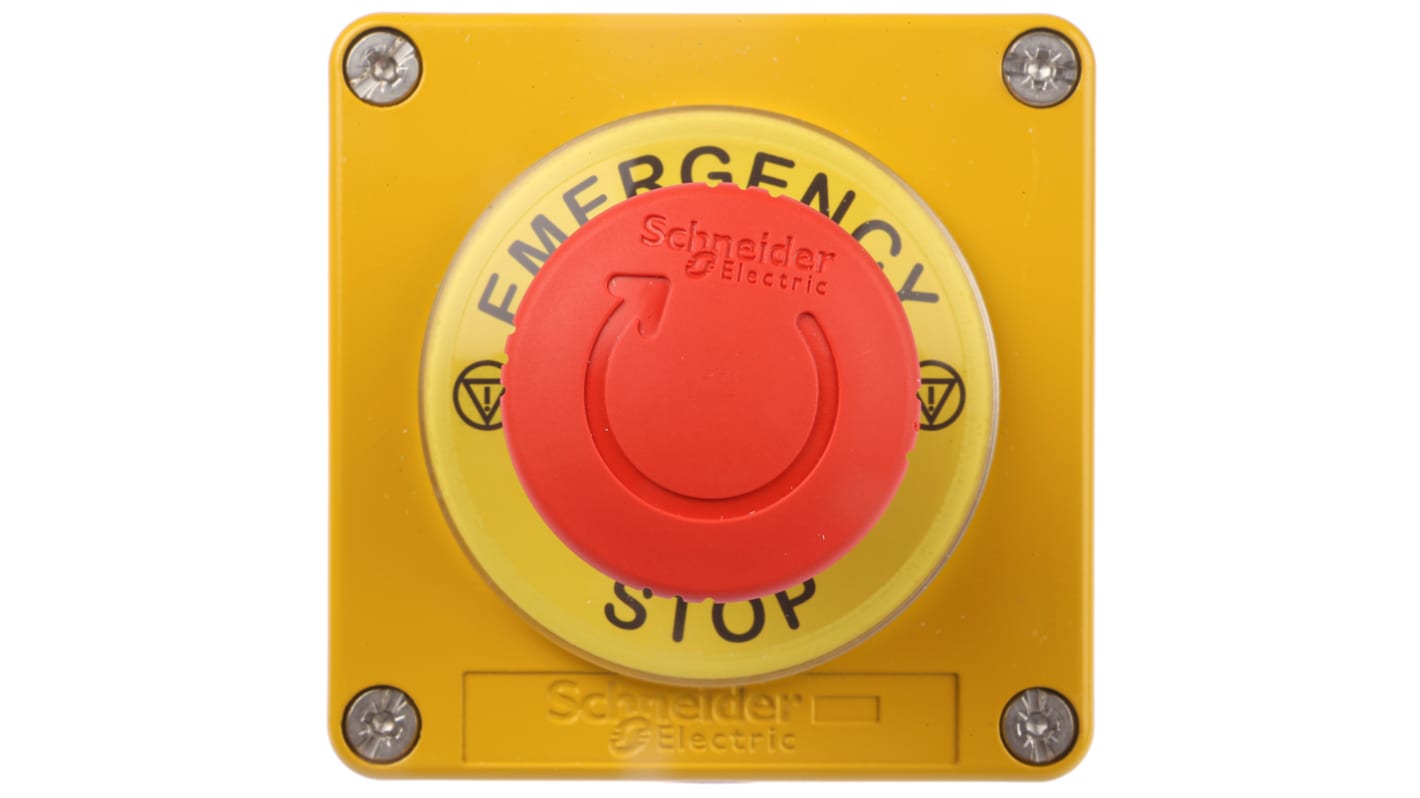

Schneider Electric Yellow Zinc Alloy Harmony XAP Turn Button Control Station - 1 Hole 22mm Diameter

Se alla Control Station Enclosures
Mängdrabatt möjlig

Antal (1 enhet)*

1 425,31 kr

(exkl. moms)

1 781,64 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 711 enhet(er) är redo att levereras
  • Plus 5 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 41 425,31 kr
5 - 111 382,75 kr
12 +1 337,06 kr

*vägledande pris

RS-artikelnummer:
546-648
Distrelec artikelnummer:
304-01-306
Tillv. art.nr:
XAPJ1201SPEC0972
Tillverkare / varumärke:
Schneider Electric
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Schneider Electric

Series

Harmony XAP

Cutout Diameter

22mm

Number of Cutouts

1

Enclosure Colour

Yellow

Enclosure Marking

Emergency Stops

Enclosure Material

Zinc Alloy

IP Rating

IP65

Length

80mm

Width

80mm

Depth

51mm

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-25°C

Operating Temperature Range

-25 → +70°C

Dimensions

80 x 80 x 51mm

Schneider Electric Emergency Stop Button - Harmony XAP Series


The Harmony XAP series from Schneider Electric offers you complete robustness and reliability in an emergency stop button, giving you the reassurance of controlling any emergency type event. This die-cast, zinc alloy control station is sturdy, reliable and durable in several different environments.

Features and benefits


• Blue, yellow and red colouring with 'Emergency Stop' decal prominently written to display function to users.
• Easy to maintain Zinc-alloy material, strong, durable and cost-effective.
• Effortless cable entry with 1 hole with a blanking plug and 1 hole without.
• Compact and lightweight in nature, making panel mounting simple.
• Designed for 22 mm control and signalling units.
• Functions additionally as an on, off & on-off as well as an emergency stop button, depending on your requirements. Protection ratings -
• IP 65 rated (protected from total dust ingress, as well as low-pressure water jets from any direction).
• Ambient air temperature for operation from -25°C to 70°C

Applications


• Machine manufactures such as car, textile or timber
• Service sectors such as restaurants, public works, building, airports

Note

546-644 Schneider Electric Harmony XAP Key Button Control Station
546-648 Schneider Electric Harmony XAP Turn Button Control Station

Schneider Electric Turn Button Control Station, Flush Mounting, Twist Head Style - Harmony XAP Series - XAPJ1201SPEC0972


Need a quick-fire way to hit the brakes in an emergency? Add this turn button control station from Schneider Electric to your setup. Thanks to its IP65 and IP67 ratings, it's completely sealed from damaging elements like dust and water to safeguard sensitive wires. The zinc enclosure is highly durable and coated with a TC protective treatment to give you best-in-class resistance against corrosion. Thanks to its wide operating temperature range between -25°C and +70°C, you can count on this product in demanding indoor and outdoor applications.

Features & Benefits


• 'Emergency Stop' written directly on the panel for easy visibility
• Compact dimensions of 80 (W) x 80 (L) x 49mm (D) so it takes up minimal space on your control panel or wall
• Blanking plug at cable entry seals out dust and debris to protect wires

Applications


• Energy sector
• Public works industry
• Aerospace technology
• Distribution centres

How do I release this button?


Twist the button in the direction of the arrow on the button head to release it after actuation. This extra step prevents accidental resetting.
