Texas Instruments USB CC1111 RF Transceiver Dongle CC1111EMK868-915

Se kategorien
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
825-7156
Tillv. art.nr:
CC1111EMK868-915
Tillverkare / varumärke:
Texas Instruments
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Texas Instruments

RF Technology

RF Transceiver

Kit Classification

Dongle

Featured Device

CC1111

Kit Name

USB

Frequency

868 MHz, 915 MHz

CC1111EMK Evaluation Module Kit, 868/915MHz

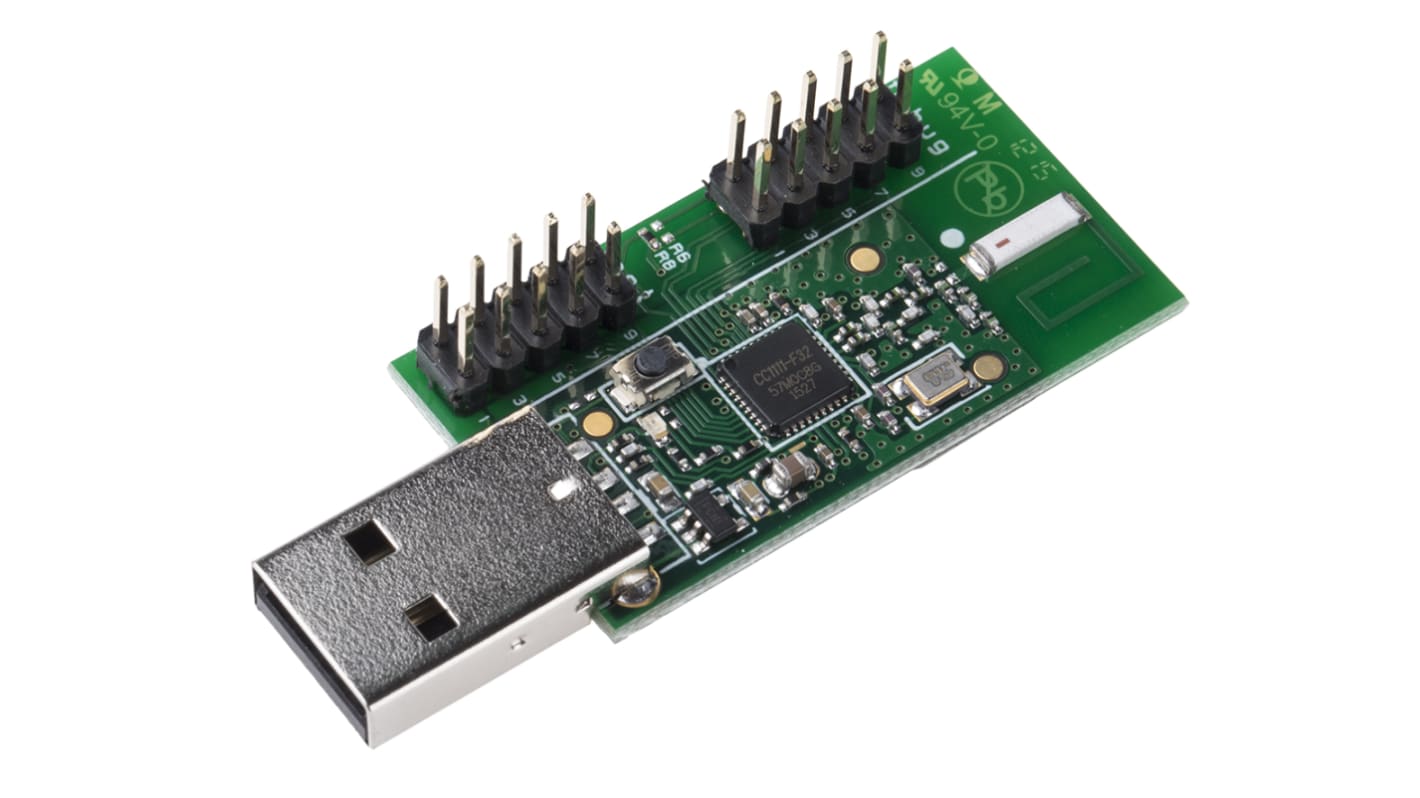

The CC1111EMK868-915 kit consists of a USB dongle making it easy to create a wireless connection between a PC and sub-1GHz network radios based on compatible devices like the CC1101, CC1120, CC1110, and CC430. The dongle is pre-programmed as a Packet Sniffer. It can capture packets over-the-air and the sniffer application running on the PC can parse and display the contents.

CC1111F32 Wireless SoC set up for 868/915MHz ISM band operation
USB A connector to PC
10-pin program/debug header
10-pin GPIO header
User LED
User pushbutton
868/915MHz chip antenna

Note

A CC Debugger tool (RS Part No.709-4370) will be required to program and debug software running on the dongle.
