Texas Instruments CC1110, CC1111 RF Transceiver Development Kit CC1110-CC1111DK

Denna bild representerar endast produktgruppen

Se kategorien

Antal (1 enhet)*

6 834,26 kr

(exkl. moms)

8 542,82 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Lagerinformation är för närvarande otillgänglig
Enheter
Per enhet
1 +6 834,26 kr

*vägledande pris

RS-artikelnummer:
709-4361
Tillv. art.nr:
CC1110-CC1111DK
Tillverkare / varumärke:
Texas Instruments
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Texas Instruments

RF Technology

RF Transceiver

Kit Classification

Development Kit

Featured Device

CC1110, CC1111

Frequency

433 MHz, 868 MHz, 915 MHz

CC1110-CC1111DK Development Kit


The CC1110-CC1111DK Development Kit allows the user to evaluate the CC1110 and CC1111 Sub-1GHz RF transceiver System-on-Chips. A number of demonstration applications serve to highlight the innovative features of the SmartRF04 devices. The user can realize a prototype by using peripherals included on the evaluation board.

SmartRF04EB Evaluation Board
3 line x16 character LCD panel
USB interface and connector
RS-232 serial bus with flow control via DE9 connector
4 x SMA test connectors
Audio interface with microphone/headphone sockets
Volume control
4 x user LEDs
Potentiometer
Thumb joystick
Reset and Power pushbuttons
User pushbutton
Header for CC1110EM Evaluation Module
Program/debug header
Powered from USB, barrel connector or 9V PP3 battery

CC1110EM 433MHz Evaluation Module
CC1110 device
Antenna matching filter components
Antenna SMA connector

CC1110EM 868/915MHz Evaluation Module
CC1110 device
Antenna matching filter components
Antenna SMA connector

CC1111EMK 868/915MHz USB Dongle
CC1111 device
Chip antenna
LED
Pushbutton
USB connector
GPIO header
Program/debug header

RS Product Codes for Devices
820-3083 CC1110F8RHHT
459-342 CC1110F8RSP
820-3070 CC1110F16RHHT
820-3074 CC1110F32RHHT
459-310 CC1111F32RSP

Note

CC Debugger program/debug module is available under RS Part No. 709-4370

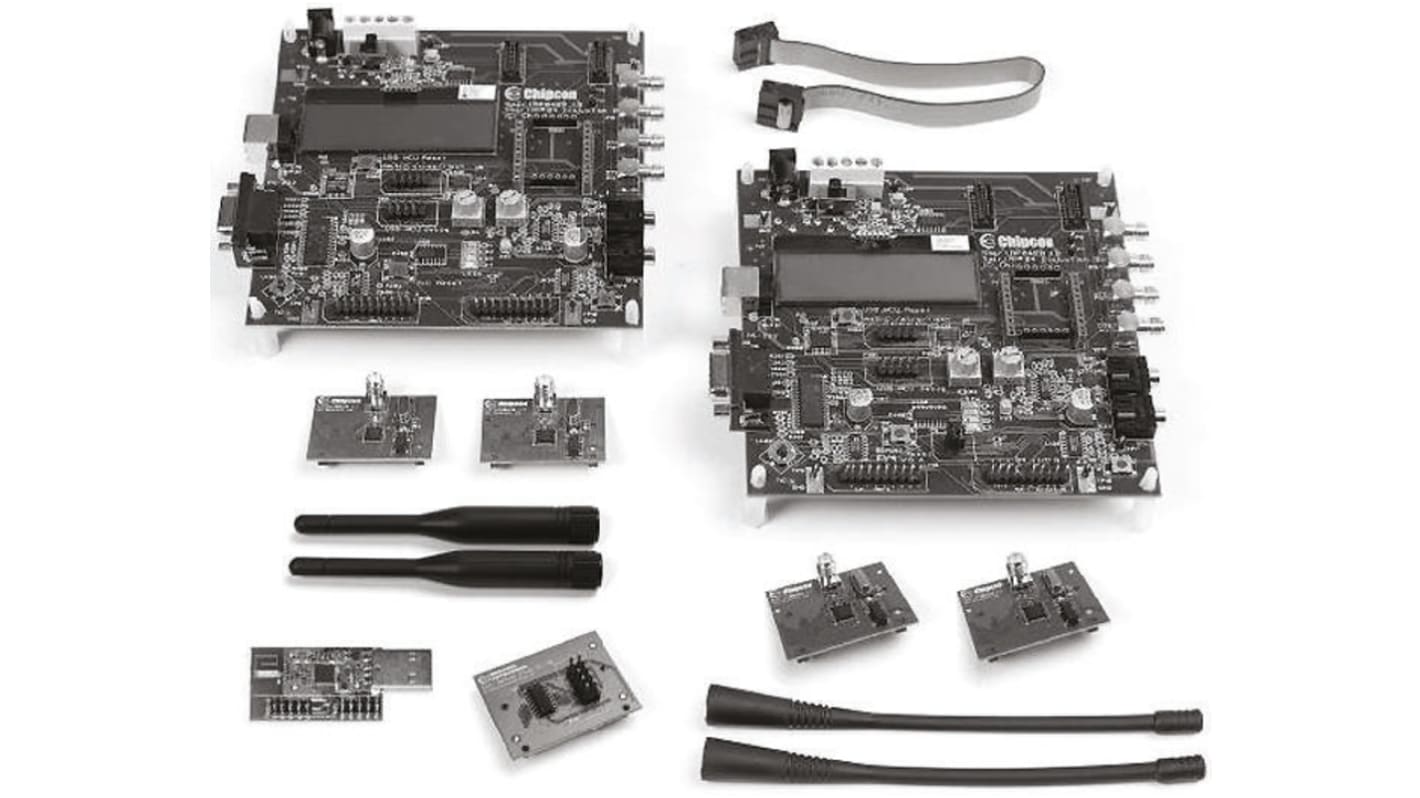

Supplied with

2 x SmartRF04EB evaluation boards, 2 x CC1110EM 433 MHz evaluation modules, 2 x CC1110EM 868/915MHz evaluation modules, CC1111EM 868/915MHz USB dongle, 4 x Antennas, Cables, IAR EW8051 C-compiler with C-SPY debugger (30+30 days evaluation license).
