Infineon PSOC™ 64 Standard Secure – AWS Wi-Fi BT Pioneer Board PSoC 64 MCU Bluetooth Evaluation Board for Arduino

Se kategorien

Antal (1 enhet)*

972,47 kr

(exkl. moms)

1 215,59 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • Slutlig(a) 8 enhet(er), redo att levereras
Enheter
Per enhet
1 +972,47 kr

*vägledande pris

RS-artikelnummer:
241-4256
Tillv. art.nr:
CY8CKIT-064S0S2-4343W
Tillverkare / varumärke:
Infineon
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Infineon

RF Technology

Bluetooth

Classification

Arduino Compatible IoT Kit

Kit Classification

Evaluation Board

For Use With

Arduino Shields

Featured Device

PSoC 64 MCU

Frequency

2.4GHz

Kit Name

PSOC™ 64 Standard Secure – AWS Wi-Fi BT Pioneer Board

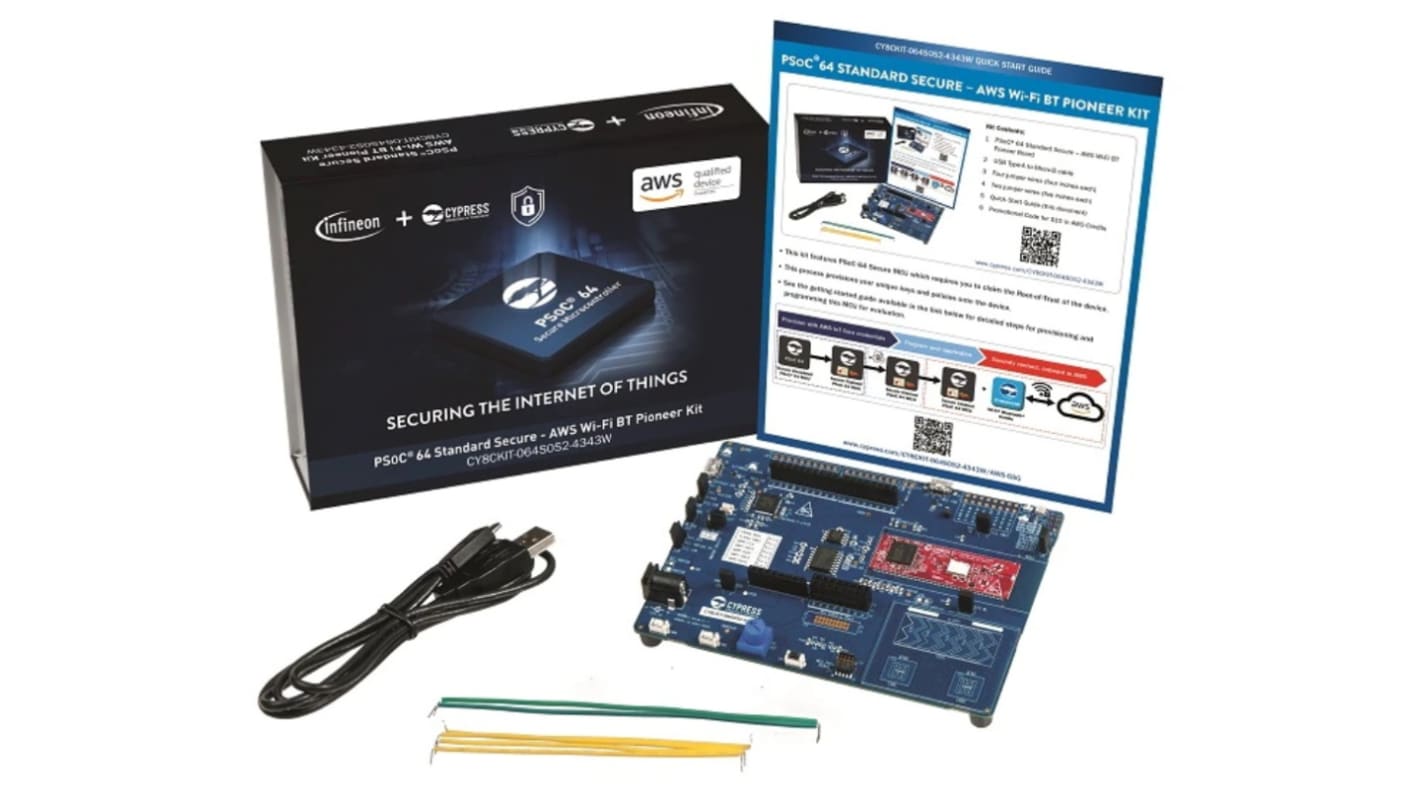

The Infineon PSoC 64 Standard Secure – AWS Wi-Fi BT Pioneer Board offers compatibility with Arduino™ shields. The board features a PSoC 64 MCU, and a CYW4343W Wi-Fi/Bluetooth combo module. Cypress CYW4343W is a highly integrated single-chip solution that includes a 2.4 GHz WLAN IEEE 802.11 b/g/n MAC/baseband/radio and Bluetooth 5.1 support. The WLAN section supports SDIO interface to the host MCU (PSoC 64 MCU), and the Bluetooth section supports high-speed 4-wire UART interface to the host MCU. In addition, the board features an on-board programmer/debugger (KitProg3), a 512-Mbit Quad SPI NOR flash, a 4-Mbit Quad SPI F-RAM, a micro-B connector for USB device interface, a 5-segment CapSense slider, two CapSense buttons, a microSD card holder, an RGB LED, two user LEDs, one potentiometer, and two push buttons. The board supports
operating voltages of 1.8 V, 2.5 V and 3.3 V for PSoC 64 MCU.

512-Mbit external Quad SPI NOR Flash that provides a fast, expandable memory for data and code
4-Mbit Quad SPI ferroelectric random-access memory (F-RAM)
A micro-B connector for USB device interface for PSoC 64 MCU
KitProg3 on-board SWD programmer/debugger with USB-UART and USB-I2C bridge functionality
