RS PRO, 100m, Stranded Coaxial, Unterminated50 Ω

Se alla Coaxial Cable

Antal (1 rulle med 100 meter)*

2 641,51 kr

(exkl. moms)

3 301,89 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 5 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar)
Per rulle
Per meter*
1 +2 641,51 kr26,415 kr

*vägledande pris

RS-artikelnummer:
216-3674
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Terminated/Unterminated

Unterminated

Coaxial Type

Stranded

Outer Diameter

10.3mm

Characteristic Impedance

50 Ω

Attenuation

14.7 dB/100m @ 400MHz, 22.9 dB/100m @ 800MHz, 26.7 dB/100m @ 1GHz, 9.7 dB/100m @ 200MHz

Length

100m

Sheath Colour

Black

Conductor Strand Type

Stranded

Fire Behaviour

Flame Retardant, Self-extinguishing

Standards Met

IEC 60332-1

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-10°C

Size of Strands

0.75 mm

Conductor Material

Bare Copper

Insulation Material

PE

Capacitance

100pF/m

Shielding

Red copper braid

Sheath Material

PVC

Core Strands

7 X 0.75

Number of Strands

7

Operating Temperature Range

-10 °C→+70 °C

Velocity ratio

66%

COO (Country of Origin):
CN

RS PRO Coaxial Cables

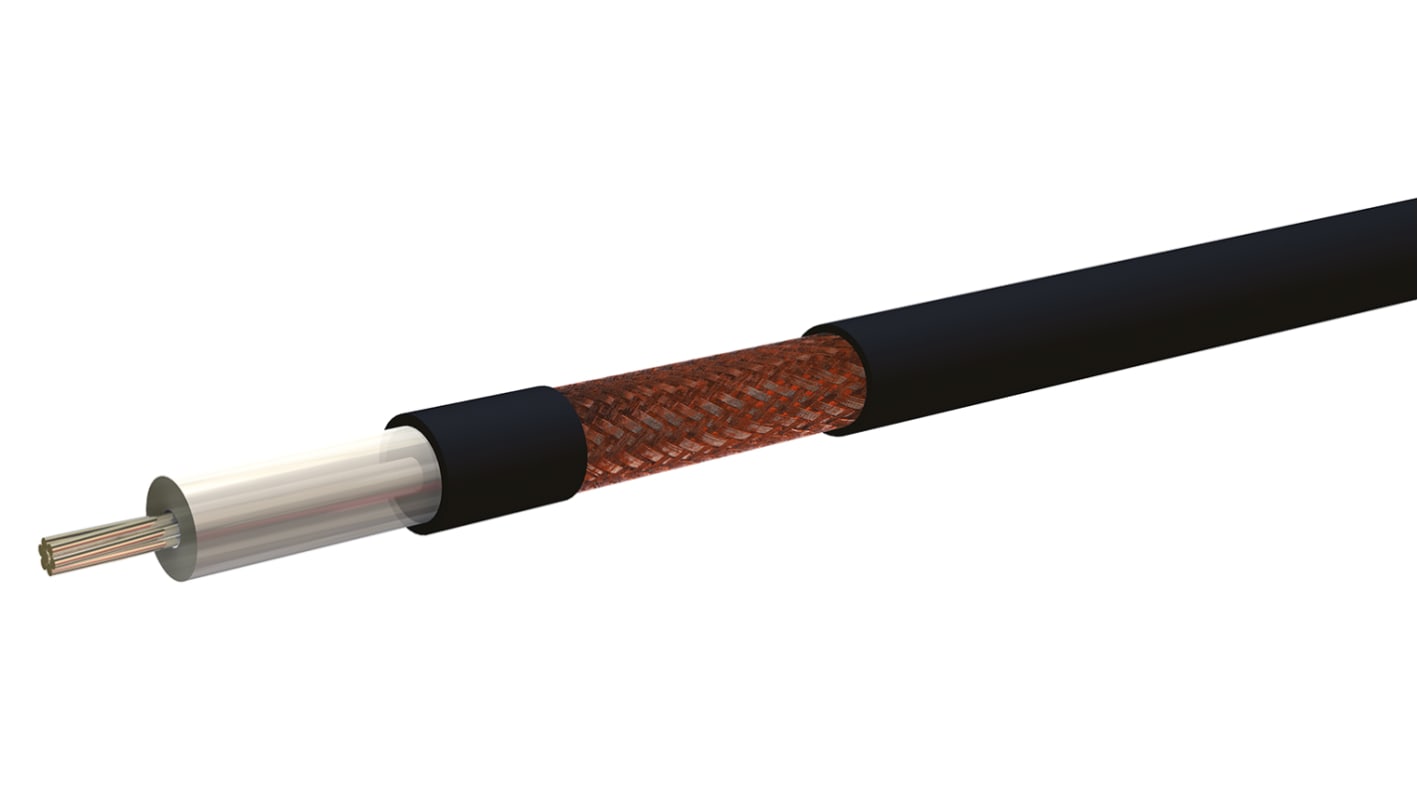

Introducing the range of RS PRO Coaxial Cables, ideal for creating connections via aerial sockets or for extending existing cables. The 100 m, 50-ohm coaxial extension cable has unterminated ends for ultimate flexibility in cabling applications and has been designed with stranded bare copper core. In addition to this, the cable assembly is double shielded thanks to the layer of PE and additional braiding to ensure durability and protection from damage both internally and externally. The cable has a highly durable and flexible PVC outer jacket for optimum protection and performance for signal and satellite transmission, especially when the connector points are being moved around from set up to set up. These RS PRO coaxial cables have been designed with the highest quality and versatility in mind, making it an ideal addition to any application or environment requiring coaxial cable assembly setups.

Features and Benefits:


  • This range of RS PRO coaxial cable assemblies are an ideal addition to any professional set up for tv and aerial sockets or cable extension applications

  • Designed to be multi-functional, this cable is used for ultimate versatility, suitable for attaching to an existing cable as an extension or to create a new connection

  • The cable’s inner core is bare copper stranded core with a Polyethylene (PE) surrounding and braiding around it, as well as PVC (Polyvinyl Chloride) outer sheath for extra durability and flexibility

  • These cables from RS PRO provide the highest quality sound and video output and offer different length audio video cable assemblies available for convenience

  • Available in 100 m reel

  • Meets IEC 60332-1 and EN50575 :2014+A1 :2016 Class Eca standards

Applications:


Coaxial cables are used in a range of applications for audio, video and signal transmission, especially aerials, set-top boxes, tv and audio. These types of cables are high performance with additional features to reduce signal interference and provide high-quality output. Coaxial cable assemblies are versatile and are designed with a variety of different sheath colours and in different lengths to suit all of your requirements. These cables are most commonly used in:
  • TV Aerials and Antennas

  • Satellite TV Boxes

  • Radios

  • Receivers

  • Wi-Fi Routers

Why RS PRO?


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
