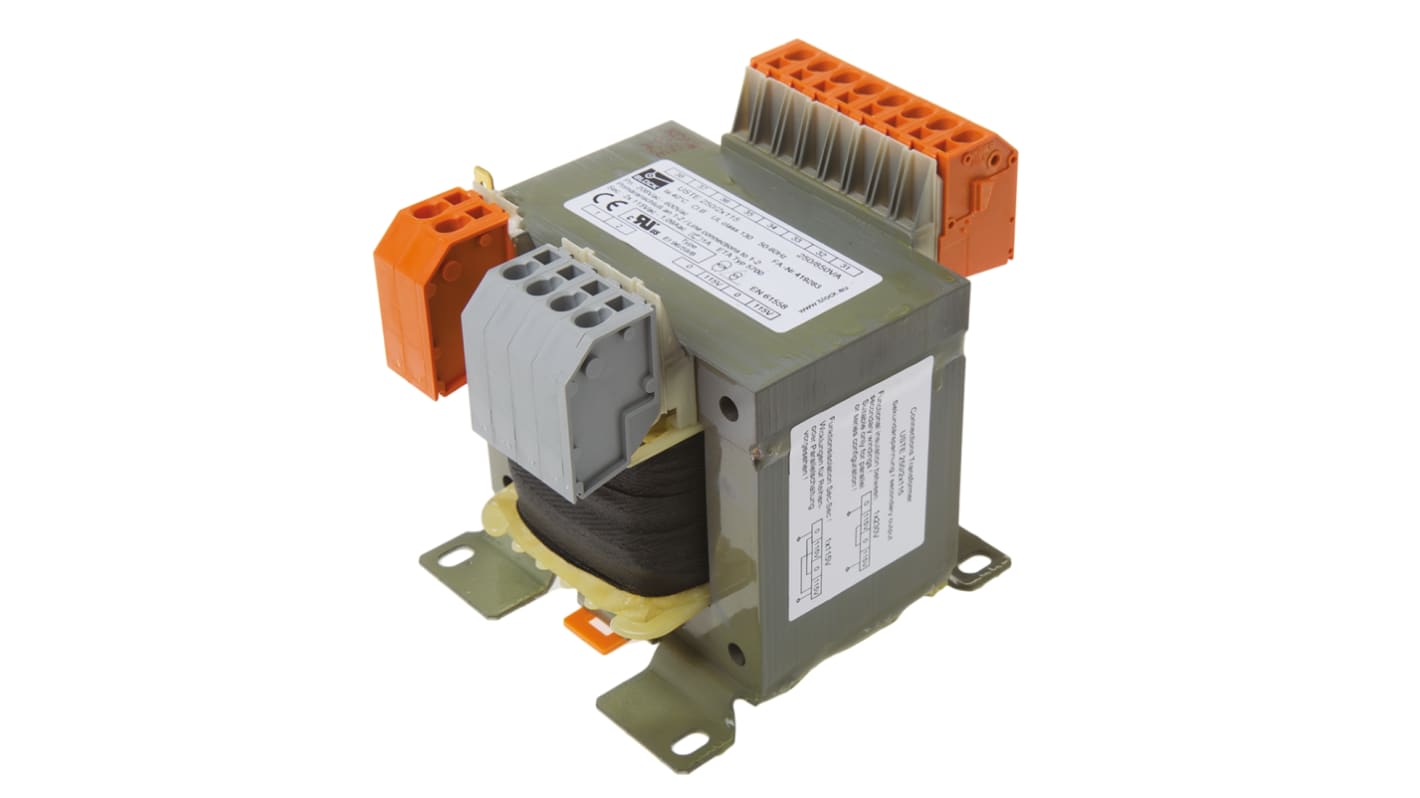

Block 250VA 2 Output Chassis Mounting Transformer, 2 x 115V ac
- RS-artikelnummer:
- 419-7439
- Tillv. art.nr:
- USTE250/2X115
- Tillverkare / varumärke:
- Block
20 I lager för avsändande samma dag
25 Inom 1 arbetsdag(ar) (UK lager)
Pris (ex. moms) Varje
1 408,65 kr
(exkl. moms)
1 760,81 kr
(inkl. moms)
Enheter | Per enhet |
|---|---|
| 1 - 24 | 1 408,65 kr |
| 25 + | 1 359,41 kr |
- RS-artikelnummer:
- 419-7439
- Tillv. art.nr:
- USTE250/2X115
- Tillverkare / varumärke:
- Block
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Universal Input Control Transformer 208 to 600Vac
Universal input transformers are designed for worldwide usage and fulfill the requirements for control safety isolating and isolating transformers suitable for DIN Rail mounting (to 250VA) or footplate mounting (all types) and the use of cage clamp terminals makes installation an easy task
Input voltages 208V, 230V, 380V, 400V, 415V, 440V, 460V, 480V, 500V, 525V, 550V, 575V, 600V provide a large range of output current
Vacuum resin impregnation
Vacuum resin impregnation
Approvals
VDE, UL recognised, CUL
Specifikationer
Attribute | Value |
|---|---|
| Primary Voltage Rating | 208 V ac, 230 V ac, 380 V ac, 400 V ac, 415 V ac, 440 V ac, 460 V ac, 480 V ac, 500 V ac, 525 V ac, 550 V ac, 575 V ac, 600V ac |
| Secondary Voltage Rating | 2 x 115V ac |
| Power Rating | 250VA |
| Number of Outputs | 2 |
| Length | 104mm |
| Width | 96mm |
| Depth | 102mm |
| Dimensions | 96 x 104 x 102mm |
| Weight | 3.6kg |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Maximum Temperature | +40°C |
