APEM Capacitive switch Latching Momentary, Latching Illuminated, Red, Green, NPN, IP69K, IP68

Se alla Capacitive Switches

Antal (1 enhet)*

943,53 kr

(exkl. moms)

1 179,41 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Lagerinformation är för närvarande otillgänglig
Enheter
Per enhet
1 +943,53 kr

*vägledande pris

RS-artikelnummer:
205-8746
Tillv. art.nr:
CPB3210000DGSC
Tillverkare / varumärke:
APEM
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

APEM

Switch Operation

Latching

Product Type

Capacitive switch

Switch Type

Capacitive

Switch Function

Momentary, Latching

LED Colour

Red, Green

Housing Material

Aluminium

Illuminated

Yes

Maximum Input Voltage

24V

Output Type

NPN

Minimum Input Voltage

5V

Housing Colour

Red, Black, Blue, Gold, Green

IP Rating

IP69K, IP68

Series

CP

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

65°C

Standards/Approvals

IEC 60529, EN61000-4-2

Current Rating

200 mA

COO (Country of Origin):
GB

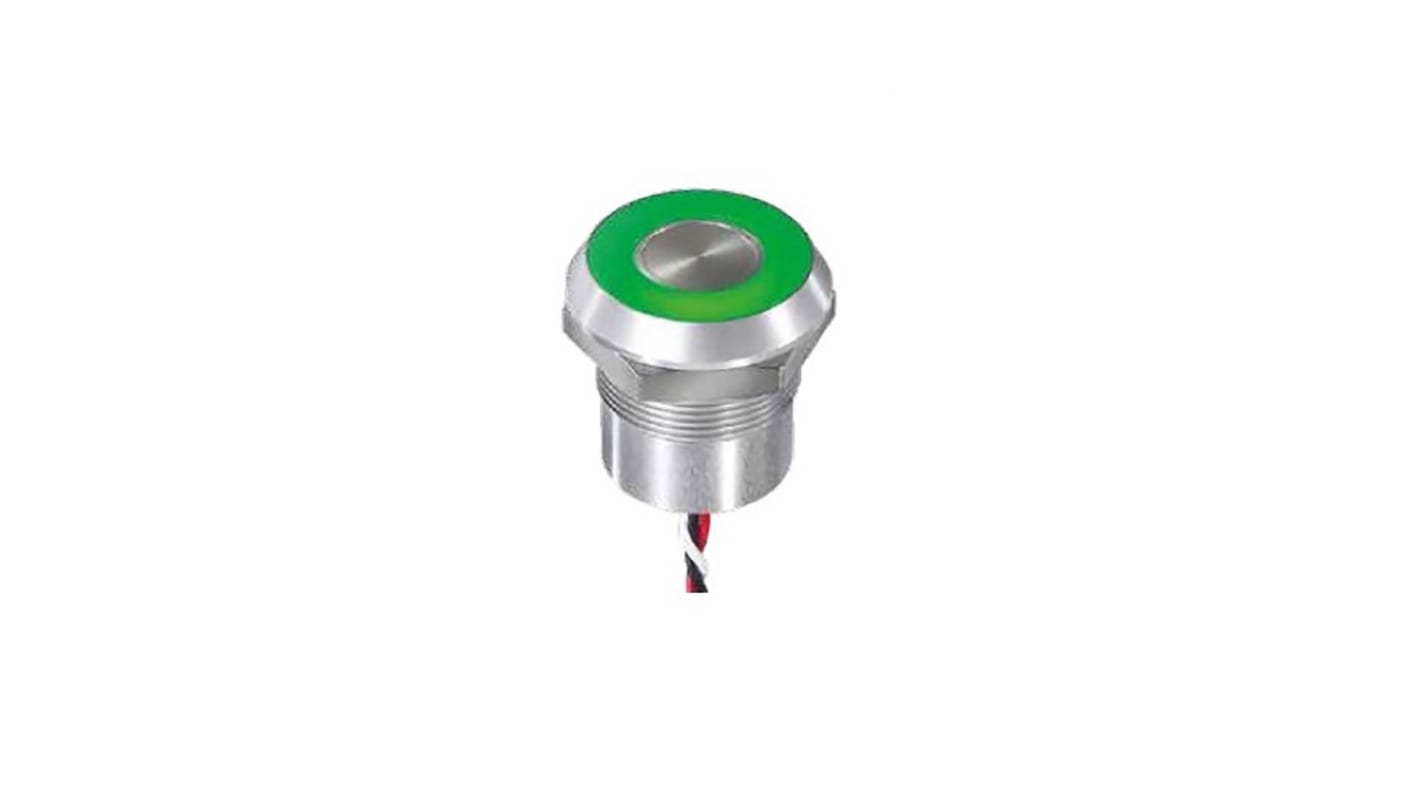

The APEM CP series touch sensor switch with bushing diameter of 22mm provides OFF latching. It is extremely easy to use and ideal for repetitive applications (no operating force). Their IK10 impact resistance provides robustness and unlimited life are perfect for self-service applications. It is resistant to chemicals and contaminants and also impervious to dust and dirt.

Independent or output image LED functionality

Activated by the touch of a finger

Life expectancy of 50 million cycles

Auto-calibration function

Sealed to IP68 and IP69K

No moving mechanical parts to wear out

Adjustable sensitivity

Aluminium anodized case
