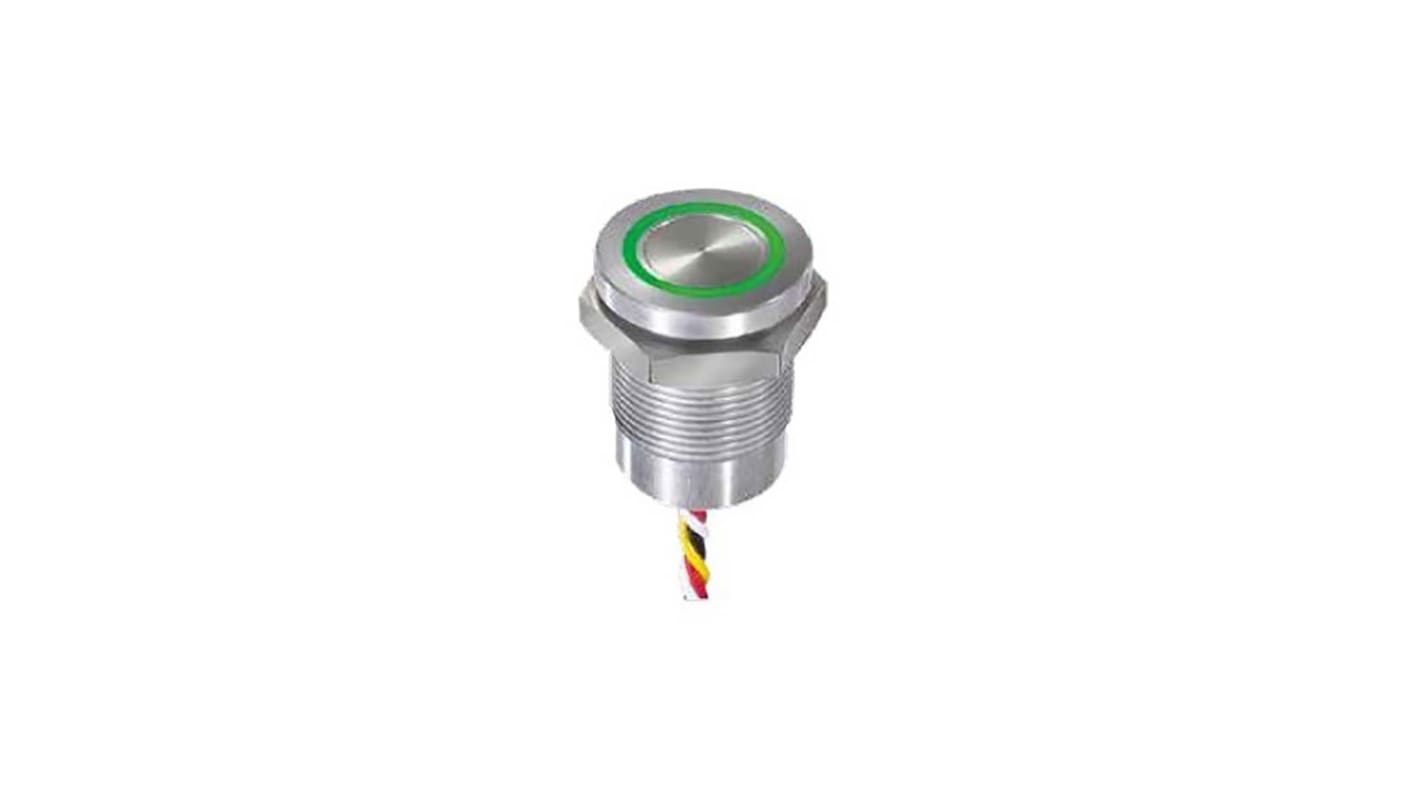

APEM Capacitive switch Latching Latching, Momentary Illuminated, Red, Green, NPN, IP68, IP69K

Se alla Capacitive Switches

Antal (1 enhet)*

889,54 kr

(exkl. moms)

1 111,92 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 08 juni 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +889,54 kr

*vägledande pris

RS-artikelnummer:
205-8744
Tillv. art.nr:
CPB2210000KGSC
Tillverkare / varumärke:
APEM
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

APEM

Switch Operation

Latching

Product Type

Capacitive switch

Switch Type

Capacitive

Switch Function

Latching, Momentary

Housing Material

Aluminium

LED Colour

Red, Green

Illuminated

Yes

Maximum Input Voltage

24V

Output Type

NPN

Minimum Input Voltage

5V

Housing Colour

Blue, Black, Green, Red, Gold

IP Rating

IP68, IP69K

Series

CP

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

65°C

Standards/Approvals

IEC 60529, EN61000-4-2

Current Rating

200 mA

COO (Country of Origin):
GB
The APEM CP series touch sensor switch with bushing diameter of 19mm provides OFF latching. It is extremely easy to use and ideal for repetitive applications (no operating force). Their IK10 impact resistance provides robustness and unlimited life are perfect for self-service applications. It is resistant to chemicals and contaminants and also impervious to dust and dirt.

Independent or output image LED functionality

Activated by the touch of a finger

Life expectancy of 50 million cycles

Auto-calibration function

Sealed to IP68 and IP69K

No moving mechanical parts to wear out

Adjustable sensitivity

Aluminium anodized case
