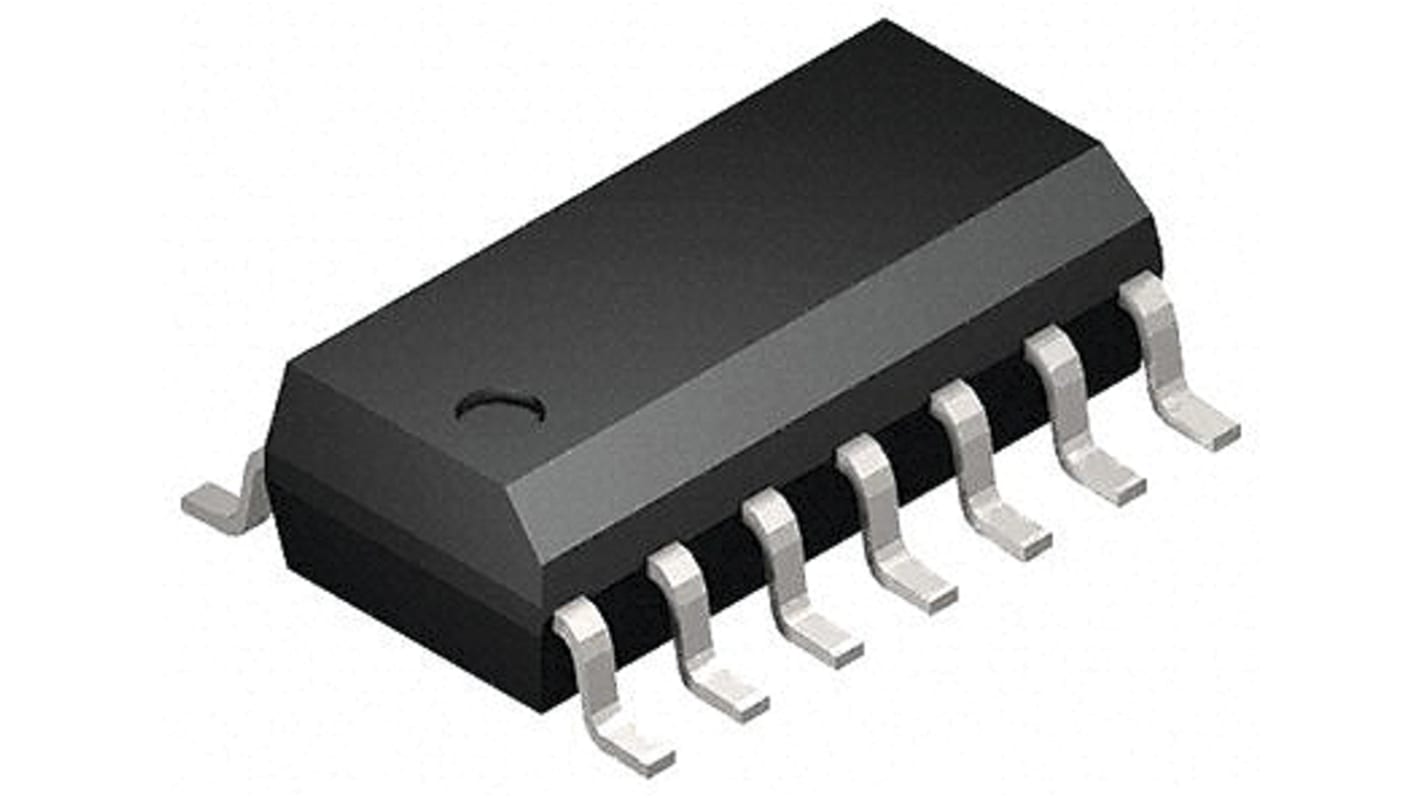

Toshiba, 4-Channel Non-Inverting Schmitt Trigger Input 3 State Quad Bus Buffer, 14-Pin SOIC
- RS-artikelnummer:
- 171-3378
- Tillv. art.nr:
- 74HC125D
- Tillverkare / varumärke:
- Toshiba
Antal (1 rulle med 2500 enheter)*
4 107,50 kr
(exkl. moms)
5 135,00 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 2 500 enhet(er) från den 19 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per rulle* |
|---|---|---|
| 2500 + | 1,643 kr | 4 107,50 kr |
*vägledande pris
- RS-artikelnummer:
- 171-3378
- Tillv. art.nr:
- 74HC125D
- Tillverkare / varumärke:
- Toshiba
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Toshiba | |
| Product Type | Quad Bus Buffer | |
| Logic Family | 74HC | |
| Logic Function | Schmitt Trigger Buffer | |
| Number of Channels | 4 | |
| Schmitt Trigger Input | Yes | |
| Input Type | Schmitt Trigger | |
| Output Type | 3 State | |
| Mount Type | Surface | |
| Polarity | Non-Inverting | |
| Package Type | SOIC | |
| Minimum Supply Voltage | 2V | |
| Pin Count | 14 | |
| Maximum Supply Voltage | 6V | |
| Maximum Propagation Delay Time @ CL | 150ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum High Level Output Current | -7.8mA | |
| Maximum Low Level Output Current | 7.8mA | |
| Maximum Operating Temperature | 125°C | |
| Length | 8.95mm | |
| Standards/Approvals | No | |
| Width | 3.9 mm | |
| Height | 1.38mm | |
| Series | 74HC | |
| Automotive Standard | No | |
| Supply Current | 40μA | |
| Välj alla | ||
|---|---|---|
Brand Toshiba | ||
Product Type Quad Bus Buffer | ||
Logic Family 74HC | ||
Logic Function Schmitt Trigger Buffer | ||
Number of Channels 4 | ||
Schmitt Trigger Input Yes | ||
Input Type Schmitt Trigger | ||
Output Type 3 State | ||
Mount Type Surface | ||
Polarity Non-Inverting | ||
Package Type SOIC | ||
Minimum Supply Voltage 2V | ||
Pin Count 14 | ||
Maximum Supply Voltage 6V | ||
Maximum Propagation Delay Time @ CL 150ns | ||
Minimum Operating Temperature -40°C | ||
Maximum High Level Output Current -7.8mA | ||
Maximum Low Level Output Current 7.8mA | ||
Maximum Operating Temperature 125°C | ||
Length 8.95mm | ||
Standards/Approvals No | ||
Width 3.9 mm | ||
Height 1.38mm | ||
Series 74HC | ||
Automotive Standard No | ||
Supply Current 40μA | ||
The 74HC125D,74HC126D are high speed CMOS QUAD BUS BUFFERs fabricated with silicon gate C2MOStechnology. They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The 74HC125D requires the 3-state control input G to be set high to place the output into the high impedance state, whereas the 74HC126D requires the control input to be set low to place the output into high impedance. All inputs are equipped with protection circuits against static discharge or transient excess voltage
High speed: tpd = 10 ns (typ.) at VCC = 6.0 V
Low power dissipation: ICC = 4.0 μA (max) at Ta = 25
Balanced propagation delays: tPLH ≈ tPHL
Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V
