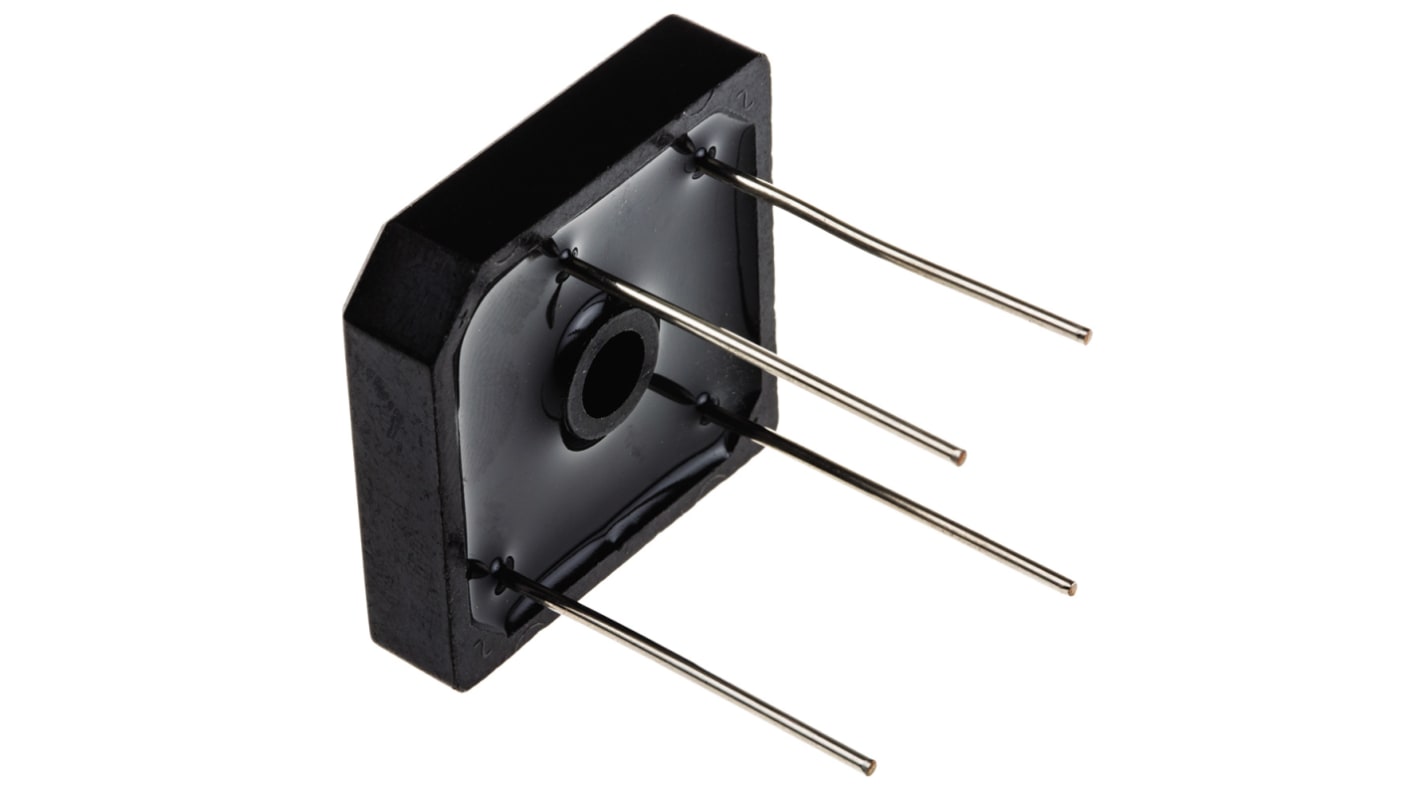

Vishay Bridge Rectifier, 600 V 400 A, 4-Pin Single

Se alla Bridge Rectifiers

Antal (1 enhet)*

65,86 kr

(exkl. moms)

82,32 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 55 enhet(er) är redo att levereras
  • Plus 15 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 431 enhet(er) från den 11 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +65,86 kr

*vägledande pris

RS-artikelnummer:
395-4398
Tillv. art.nr:
VS-GBPC3506W
Tillverkare / varumärke:
Vishay
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Vishay

Product Type

Bridge Rectifier

Peak Reverse Repetitive Voltage Vrrm

600V

Mount Type

Through Hole

Package Type

GBPC

Number of Phases

1

Pin Count

4

Configuration

Single

Maximum Operating Temperature

150°C

Peak Non-Repetitive Forward Surge Current Ifsm

400A

Minimum Operating Temperature

-55°C

Forward Current If

35A

Peak Forward Voltage Vf

1.1V

Length

28.8mm

Height

7.62mm

Peak Reverse Current Ir

5μA

Width

28.8 mm

Series

VS-GBPC

Standards/Approvals

No

Automotive Standard

No

Bridge Rectifiers for PCB Mounting, VS-GBPC35xxW Series, Vishay Semiconductor


Suitable for Printed Circuit Board (PCB) or chassis mounting

Compact construction with center hole fixing

Low thermal resistance

Wire lead structure

Bridge Rectifiers - Vishay Semiconductor


The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.

Approvals

UL E54214
