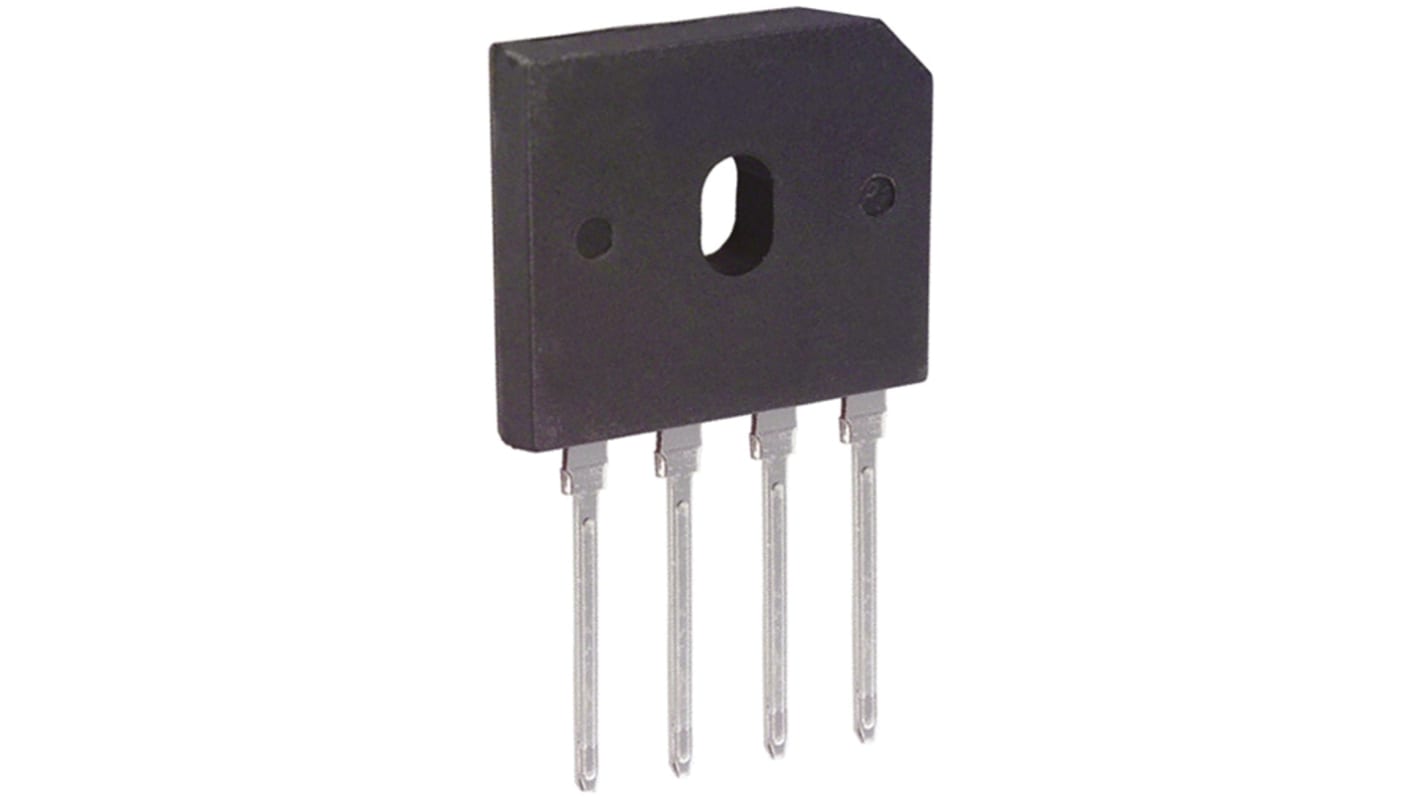

DiodesZetex Bridge Rectifier, 400 V 200 A, 4-Pin Single

Se alla Bridge Rectifiers
Mängdrabatt möjlig

Antal (1 rör med 20 enheter)*

280,12 kr

(exkl. moms)

350,16 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 21 maj 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per Rør*
20 - 8014,006 kr280,12 kr
100 - 38011,973 kr239,46 kr
400 - 98011,665 kr233,30 kr
1000 +11,385 kr227,70 kr

*vägledande pris

RS-artikelnummer:
121-9638
Tillv. art.nr:
GBU804
Tillverkare / varumärke:
DiodesZetex
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

DiodesZetex

Product Type

Bridge Rectifier

Peak Reverse Repetitive Voltage Vrrm

400V

Mount Type

Through Hole

Number of Phases

1

Package Type

GBU

Pin Count

4

Configuration

Single

Maximum Operating Temperature

150°C

Forward Current If

8A

Minimum Operating Temperature

-55°C

Peak Non-Repetitive Forward Surge Current Ifsm

200A

Peak Forward Voltage Vf

1V

Standards/Approvals

No

Series

GBU

Length

22.3mm

Height

18.8mm

Peak Reverse Current Ir

500μA

Width

3.56 mm

Automotive Standard

No

COO (Country of Origin):
CN

SIL PCB Mounting, GBU series


Diodes Inc GBU series bridge rectifiers in SIL PCB Mounting package

High Case Dielectric Strength of 1500V RMS

Low Reverse Leakage Current

Ideal for Printed Circuit Board (PCB)

Bridge Rectifiers - Diodes Inc


A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.

Approvals

UL, E94661
