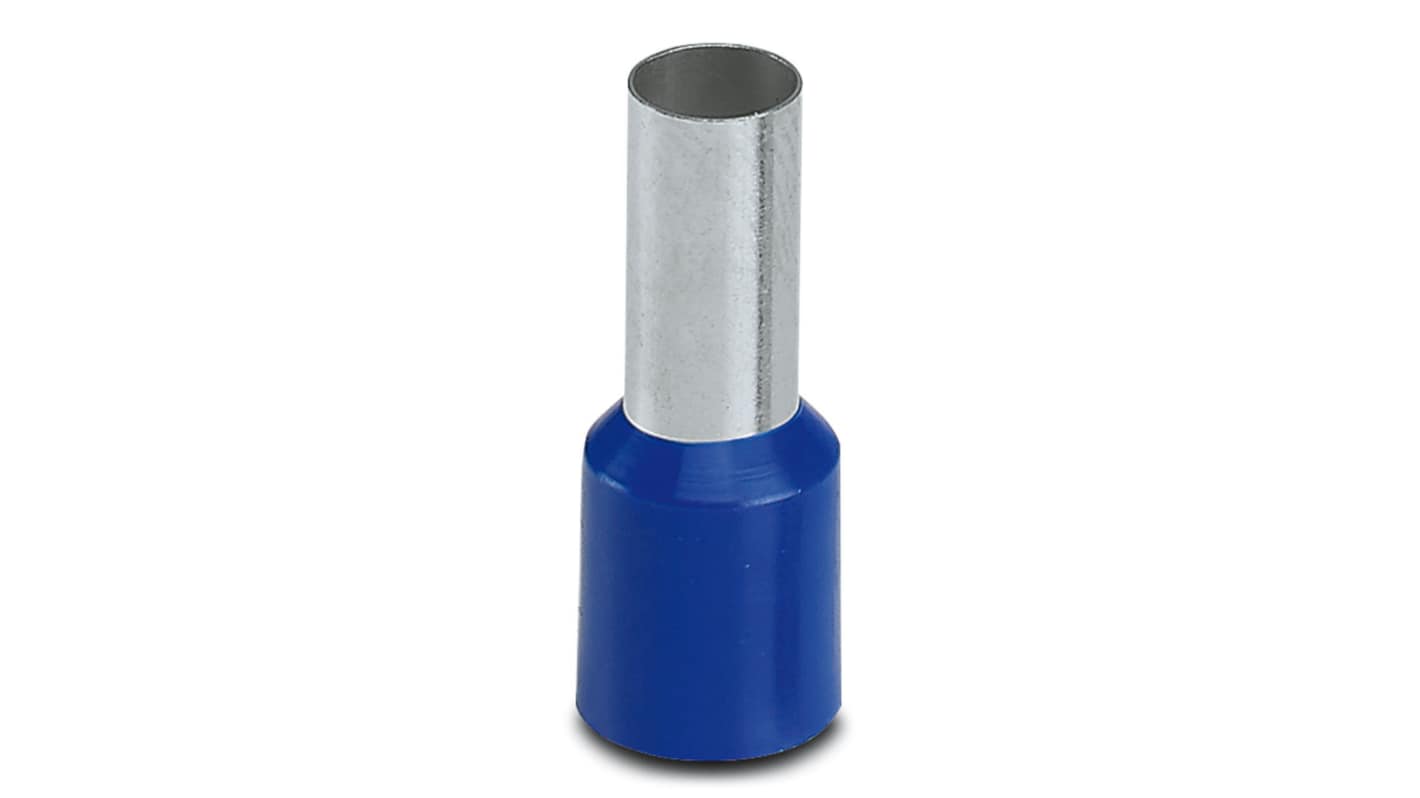

Phoenix Contact, AI 16 -12 BU Insulated Crimp Bootlace Ferrule, 12mm Pin Length, 6mm Pin Diameter, 16mm² Wire Size, Blue

Se alla Bootlace Ferrules
Mängdrabatt möjlig

Antal (1 förpackning med 100 enheter)*

936,80 kr

(exkl. moms)

1 171,00 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 100 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 200 enhet(er) från den 07 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per förpackning*
100 - 4009,368 kr936,80 kr
500 - 24007,962 kr796,20 kr
2500 - 49006,558 kr655,80 kr
5000 - 99006,088 kr608,80 kr
10000 +5,592 kr559,20 kr

*vägledande pris

RS-artikelnummer:
804-6786
Tillv. art.nr:
3200564
Tillverkare / varumärke:
Phoenix Contact
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Phoenix Contact

Maximum Wire Size mm²

16mm²

Pin Diameter

6mm

Insulation Material

Plastic

Number of Entries

1

Colour

Blue

Pin Length

12mm

Insulation

Insulated

Overall Length

23mm

Series

AI 16 -12 BU

COO (Country of Origin):
DE

Insulated Bootlace Ferrules AI Series - Phoenix Contact


Phoenix contact provides you with a range of great insulated ferrules that can be crimped onto the end of a cable or wire to give your connection more stability and prevention from fraying. These bootlace crimp ferrules are made from a soft tin-plated electrolytic copper and have a soft plastic cover to further enhance the connection and prevention of fraying. Designed with safety in mind, they're free from any silicone and halogen.

Features and benefits:


  • Insulatedrevent splicing of wires to ensure a stable connection over the long term

  • No need for soldering, a crimping tool is all that is required to fit the ferrules (see below for tools)

  • Reliability of close connections is massively increased

  • Maximum operating temperature of 105°C so can be used in harsh conditions

How to crimp a bootlace ferrule?


Ferrules are simple and easy to install. Firstly, they're mounted to the end of a stripped cable and are simply compressed onto the cable (typically with a tool) to form a tight and sturdy fit onto a cable. Once they're crimped onto the cable, give a gentle tug to ensure it is tight. Once you're sure it is tight, you can then proceed to mate your wire with connector.

What are bootlace ferrules used for?


Bootlace ferrules are used to help prevent the cable splicing or fraying when a connection is made. Typically the terminal blocks use a screw-connection, so if you have a bootlace ferrule mounted on your wire, this allows the screw to make a better bond rather than a few strands of metal cable. Not to mention, installing a bootlace ferrule ensures your connection is easier to install and remove.

Compatible hand tools:


  • Plier Crimper - 0.25mm² to 6mm²: 803-4405

  • Plier Crimper - 0.5mm² to 6mm²: 803-4427

  • Plier Crimper - 0.25mm² to 6mm²: 803-4411

  • Plier Crimper - 0.14mm² to 10mm²: 803-4420
