RS PRO Lagerinsatser, Rostfritt stål, ID 25 mm ID, UT 52 mm UT

Se alla Lagerinsatser
Mängdrabatt möjlig

Antal (1 enhet)*

360,26 kr

(exkl. moms)

450,32 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 38 enhet(er) är redo att levereras
  • Plus 4 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter
Per enhet
1 - 4360,26 kr
5 - 9352,93 kr
10 +345,80 kr

*vägledande pris

RS-artikelnummer:
750-8716
Tillv. art.nr:
UC205SS
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Varumärke

RS PRO

Produkttyp

Lagerinsatser

Invändig diameter

25mm

Utvändig diameter

52mm

Material

Rostfritt stål

Statisk belastning

710kg

Dynamisk belastningsklass

1100kgf

Låsningstyp

Ställskruv

Borrtyp

Rund

Serie

UC

Standarder/godkännanden

No

Total bredd

34mm

RoHS-status: Undantagen

COO (ursprungsland):
CN

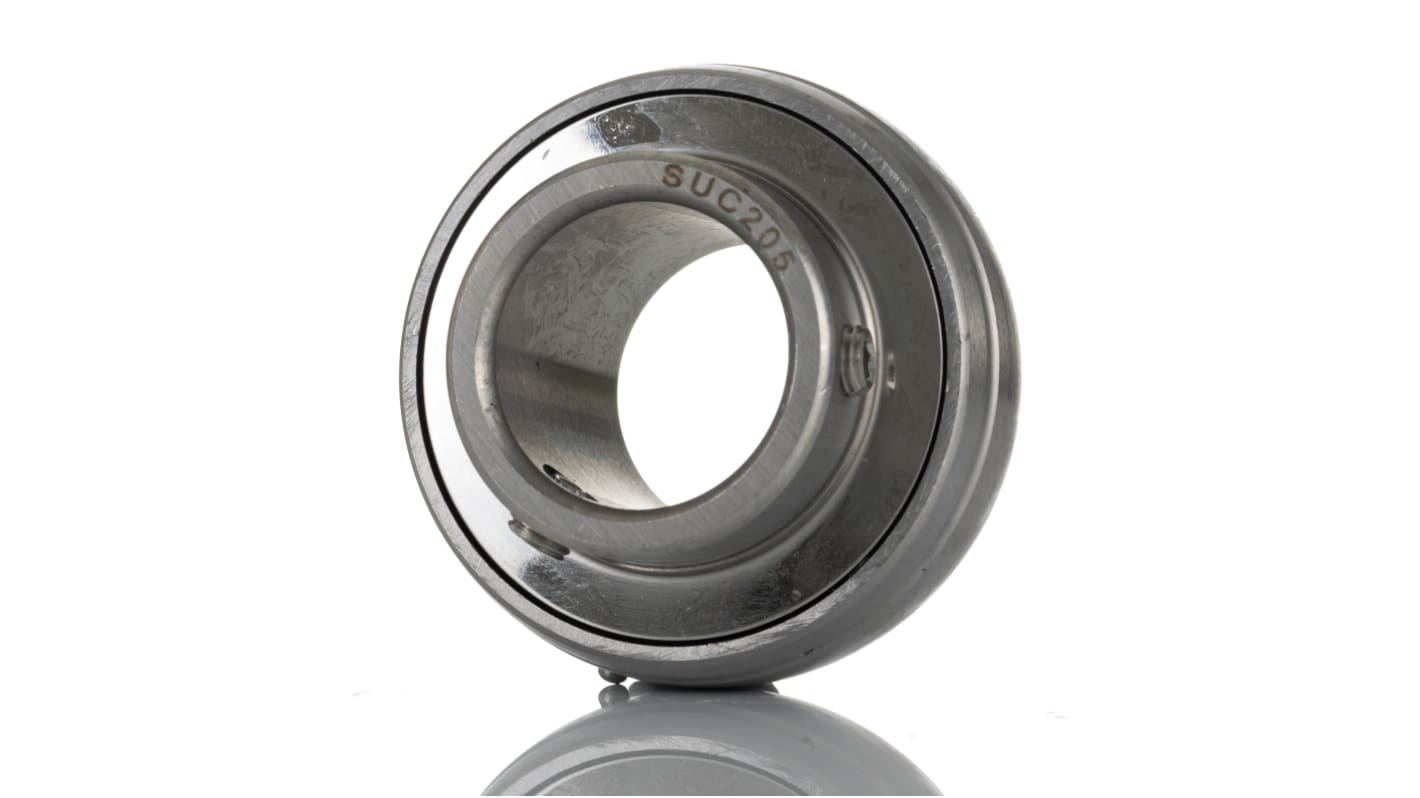

RS PRO Spherical Bearing


This spherical bearing from RS PRO can be installed within a bearing housing, or in situ (on a shaft, for example). It can then be locked using the set screw. Made from stainless steel, the bearing is durable and rust-resistant. It has an external diameter of 52 millimetres and an internal diameter of 25 millimetres. It's static load rated up to 710 kgf (kilogram-force), while its dynamic load rating is 1,100 kgf. It weighs 200 gms.

The rod end is part of the stringently tested RS PRO series of quality products. It also meets the standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for safe electrostatic discharge. Spherical bearings such as these are commonly used in a wide range of applications where there's a need to change the axis of rotation, for example in drive shafts, heavy machinery and robotics.

Features and Benefits


• Spherical bearing

• Stainless steel

• Set screws allow you to lock the bearing

• Dynamic load rating of 1,100 kgf

• Static load rating of 710 kgf

• Weight of 200 gms

• Inside diameter of 25 millimetres

• Outside diameter of 52 millimetres

• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size: 750-8716

Large Pack Size: 261-2698
