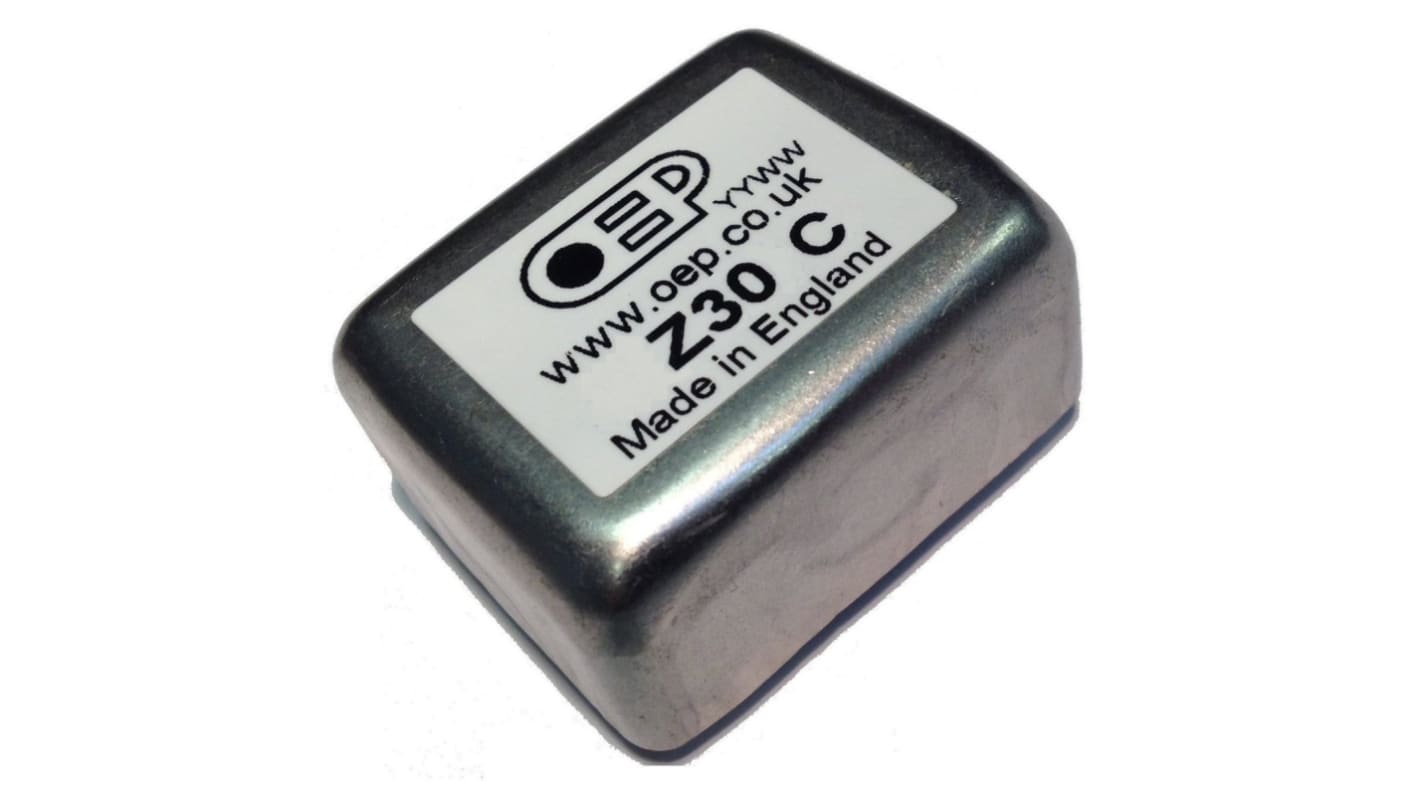

OEP Through Hole Audio Transformer 2.4 kΩ, 600Ω
- RS Stock No.:
- 123-7233
- Mfr. Part No.:
- Z30A11C
- Brand:
- OEP
Bulk discount available
Subtotal (1 unit)*
547,79 kr
(exc. VAT)
684,74 kr
(inc. VAT)
Lägg till 1 unit för att få fri frakt
Tillfälligt slut
- Leverans från den 08 april 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Units | Per unit |
|---|---|
| 1 - 9 | 547,79 kr |
| 10 - 24 | 465,70 kr |
| 25 - 49 | 410,82 kr |
| 50 + | 356,05 kr |
*price indicative
- RS Stock No.:
- 123-7233
- Mfr. Part No.:
- Z30A11C
- Brand:
- OEP
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | OEP | |
| Product Type | Audio Transformer | |
| Primary Impedance | 150Ω | |
| Secondary Impedance | 2.4, 600kΩ | |
| Primary DC Resistance | 30Ω | |
| Secondary DC Resistance | 148.4Ω | |
| Mount Type | Through Hole | |
| Termination Type | PC Pin | |
| Minimum Operating Temperature | -20°C | |
| Number of Pins | 8 | |
| Maximum Operating Temperature | 70°C | |
| Length | 36mm | |
| Width | 30 mm | |
| Series | Z30A11C | |
| Standards/Approvals | No | |
| Depth | 16mm | |
| Weight | 0.062kg | |
| Turns Ratio | 1+1 to 2+2 | |
| Maximum Operating Frequency | 35kHz | |
| Minimum Operating Frequency | 20Hz | |
| Isolation Voltage | 2kVrms | |
| Construction | Enclosed | |
| Select all | ||
|---|---|---|
Brand OEP | ||
Product Type Audio Transformer | ||
Primary Impedance 150Ω | ||
Secondary Impedance 2.4, 600kΩ | ||
Primary DC Resistance 30Ω | ||
Secondary DC Resistance 148.4Ω | ||
Mount Type Through Hole | ||
Termination Type PC Pin | ||
Minimum Operating Temperature -20°C | ||
Number of Pins 8 | ||
Maximum Operating Temperature 70°C | ||
Length 36mm | ||
Width 30 mm | ||
Series Z30A11C | ||
Standards/Approvals No | ||
Depth 16mm | ||
Weight 0.062kg | ||
Turns Ratio 1+1 to 2+2 | ||
Maximum Operating Frequency 35kHz | ||
Minimum Operating Frequency 20Hz | ||
Isolation Voltage 2kVrms | ||
Construction Enclosed | ||
- COO (Country of Origin):
- GB
OEP Z30A11C Line Input Transformers
Z30A11C audio transformers from OEP feature multiple electrostatic and magnetic shields and provide galvanic isolation. Z30A11C audio transformers are constructed with a mumetal can. These transformers as ideal as microphone input transformers, for use in low-power output applications and multi-application lines.
Nominal primary inductance of 140 mH + 140 mH at 1 kHz, 0.27 V
Nominal secondary inductance 580 mH + 580 mH at 1 kHz, 0.27 V
Electrostatic screen
Common mode rejection ratio >60 dB at 10 kHz
