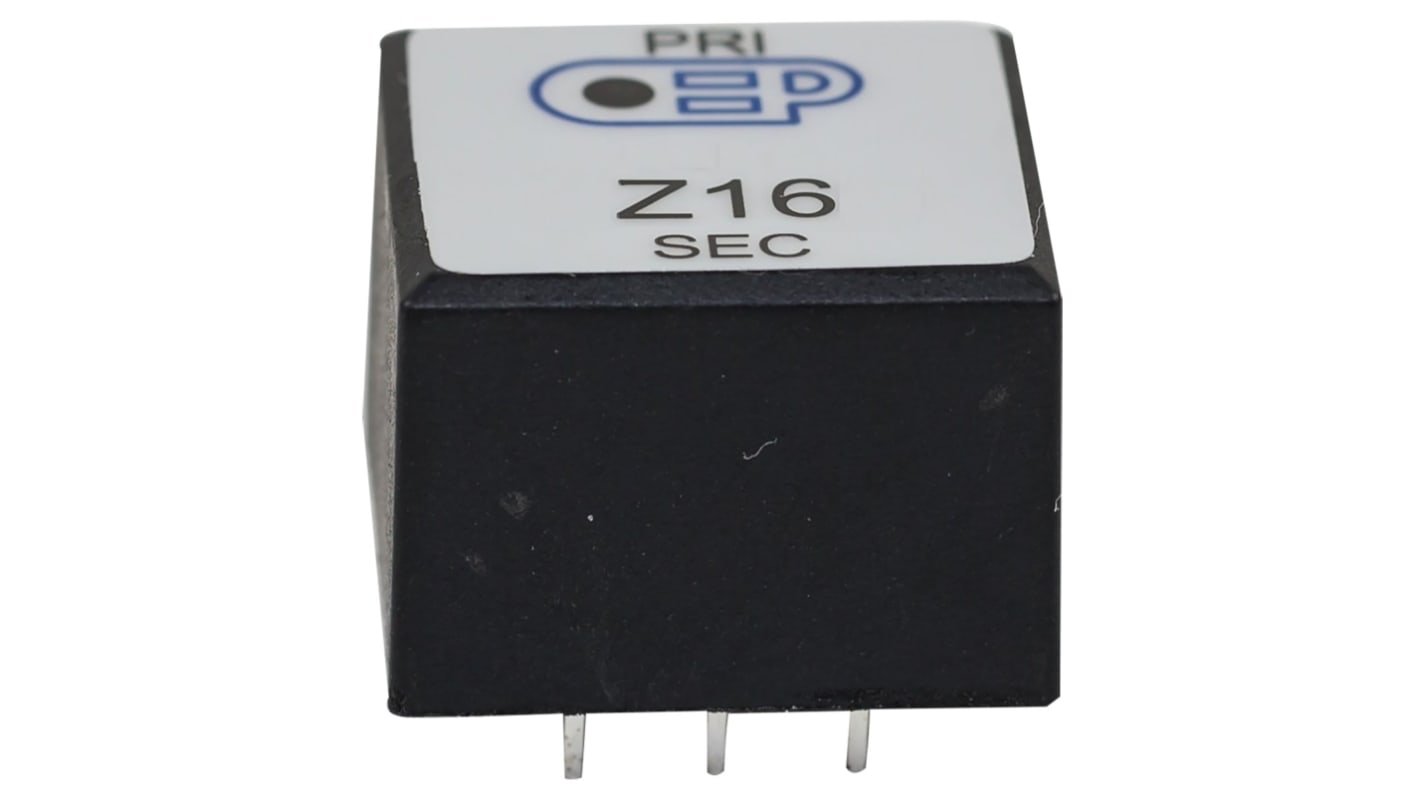

Through Hole Audio Transformer 1.2kΩ 2mW
- RS-artikelnummer:
- 123-7231
- Tillv. art.nr:
- Z1687E
- Tillverkare / varumärke:
- OEP
Mängdrabatt möjlig
Antal (1 enhet)*
143,14 kr
(exkl. moms)
178,92 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 5 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 143,14 kr |
| 10 + | 140,34 kr |
*vägledande pris
- RS-artikelnummer:
- 123-7231
- Tillv. art.nr:
- Z1687E
- Tillverkare / varumärke:
- OEP
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | OEP | |
| Primary Impedance | 600Ω | |
| Secondary Impedance | 1.2kΩ | |
| Primary DC Resistance | 117Ω | |
| Power Rating | 2mW | |
| Secondary DC Resistance | 262Ω | |
| Dimensions | 18 x 18 x 15mm | |
| Mounting Type | Through Hole | |
| Termination Type | PC Pin | |
| Weight | 14g | |
| Depth | 15mm | |
| Length | 18mm | |
| Width | 18mm | |
| Isolation Voltage | 1000V | |
| Core Type | Laminated | |
| Minimum Temperature | -20°C | |
| Construction | Enclosed | |
| Minimum Operating Frequency | 40Hz | |
| Turns Ratio | 1:1.41 C.T | |
| Maximum Temperature | +75°C | |
| Maximum Operating Frequency | 20kHz | |
| Välj alla | ||
|---|---|---|
Brand OEP | ||
Primary Impedance 600Ω | ||
Secondary Impedance 1.2kΩ | ||
Primary DC Resistance 117Ω | ||
Power Rating 2mW | ||
Secondary DC Resistance 262Ω | ||
Dimensions 18 x 18 x 15mm | ||
Mounting Type Through Hole | ||
Termination Type PC Pin | ||
Weight 14g | ||
Depth 15mm | ||
Length 18mm | ||
Width 18mm | ||
Isolation Voltage 1000V | ||
Core Type Laminated | ||
Minimum Temperature -20°C | ||
Construction Enclosed | ||
Minimum Operating Frequency 40Hz | ||
Turns Ratio 1:1.41 C.T | ||
Maximum Temperature +75°C | ||
Maximum Operating Frequency 20kHz | ||
OEP Z16 Series Audio Transformers
The OEP Z16 range of audio transformers are constructed with an interwinding screen and centre tap. Various different impedance ratios are available, and these audio transformers can be used in reverse with the centre tap on the primary. Z16 audio transformers are low power and suitable for PCB mounting.
Product Application Information
Recommended applications for these audio transformers include ground loop isolating microphone inputs and impedance matching.
