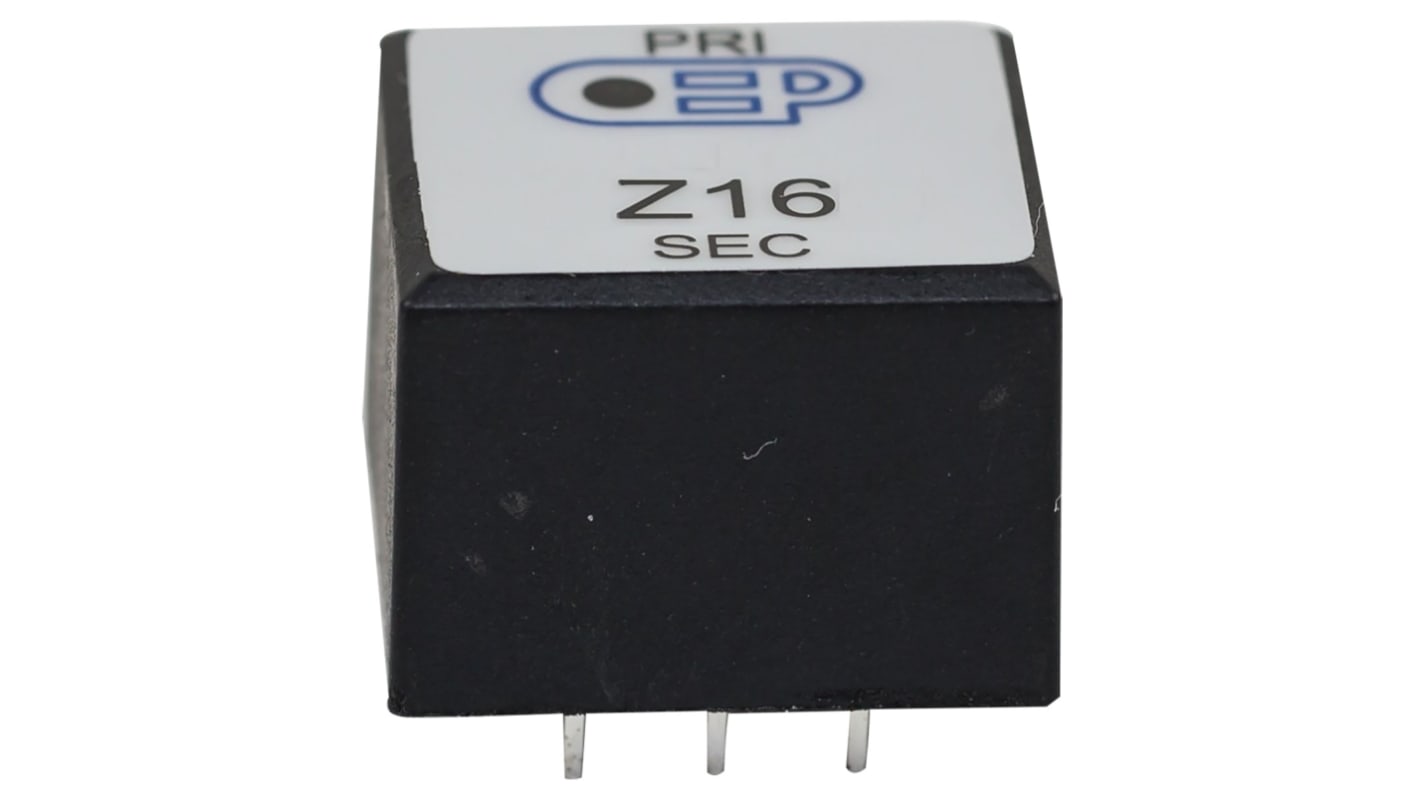

OEP Through Hole Audio Transformer 150Ω
- RS-artikelnummer:
- 123-7226
- Tillv. art.nr:
- Z1680E
- Tillverkare / varumärke:
- OEP
Mängdrabatt möjlig
Antal (1 enhet)*
143,14 kr
(exkl. moms)
178,92 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Tillfälligt slut
- Leverans från den 04 maj 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 143,14 kr |
| 10 + | 140,34 kr |
*vägledande pris
- RS-artikelnummer:
- 123-7226
- Tillv. art.nr:
- Z1680E
- Tillverkare / varumärke:
- OEP
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | OEP | |
| Product Type | Audio Transformer | |
| Primary Impedance | 150Ω | |
| Secondary Impedance | 150Ω | |
| Primary DC Resistance | 29.5Ω | |
| Secondary DC Resistance | 37.4Ω | |
| Mount Type | Through Hole | |
| Termination Type | PC Pin | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | No | |
| Width | 18 mm | |
| Series | Z1680E | |
| Length | 18mm | |
| Weight | 14g | |
| Depth | 15mm | |
| Construction | Enclosed | |
| Minimum Operating Frequency | 40Hz | |
| Maximum Operating Frequency | 20kHz | |
| Isolation Voltage | 1kV ac | |
| Turns Ratio | 1:1 CT | |
| Välj alla | ||
|---|---|---|
Brand OEP | ||
Product Type Audio Transformer | ||
Primary Impedance 150Ω | ||
Secondary Impedance 150Ω | ||
Primary DC Resistance 29.5Ω | ||
Secondary DC Resistance 37.4Ω | ||
Mount Type Through Hole | ||
Termination Type PC Pin | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals No | ||
Width 18 mm | ||
Series Z1680E | ||
Length 18mm | ||
Weight 14g | ||
Depth 15mm | ||
Construction Enclosed | ||
Minimum Operating Frequency 40Hz | ||
Maximum Operating Frequency 20kHz | ||
Isolation Voltage 1kV ac | ||
Turns Ratio 1:1 CT | ||
OEP Z16 Series Audio Transformers
The OEP Z16 range of audio transformers are constructed with an interwinding screen and centre tap. Various different impedance ratios are available, and these audio transformers can be used in reverse with the centre tap on the primary. Z16 audio transformers are low power and suitable for PCB mounting.
Product Application Information
Recommended applications for these audio transformers include ground loop isolating microphone inputs and impedance matching.
