- RS-artikelnummer:
- 203-5879
- Tillv. art.nr:
- MAX40027EVKIT#
- Tillverkare / varumärke:
- Maxim Integrated
Se alla Analogue Development Tools
3 I lager för avsändande samma dag
Pris (ex. moms) Each
1 048,82 kr
(exkl. moms)
1 311,02 kr
(inkl. moms)
Enheter | Per unit |
1 - 1 | 1 048,82 kr |
2 - 4 | 1 021,91 kr |
5 + | 996,42 kr |
- RS-artikelnummer:
- 203-5879
- Tillv. art.nr:
- MAX40027EVKIT#
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
Produktdetaljer

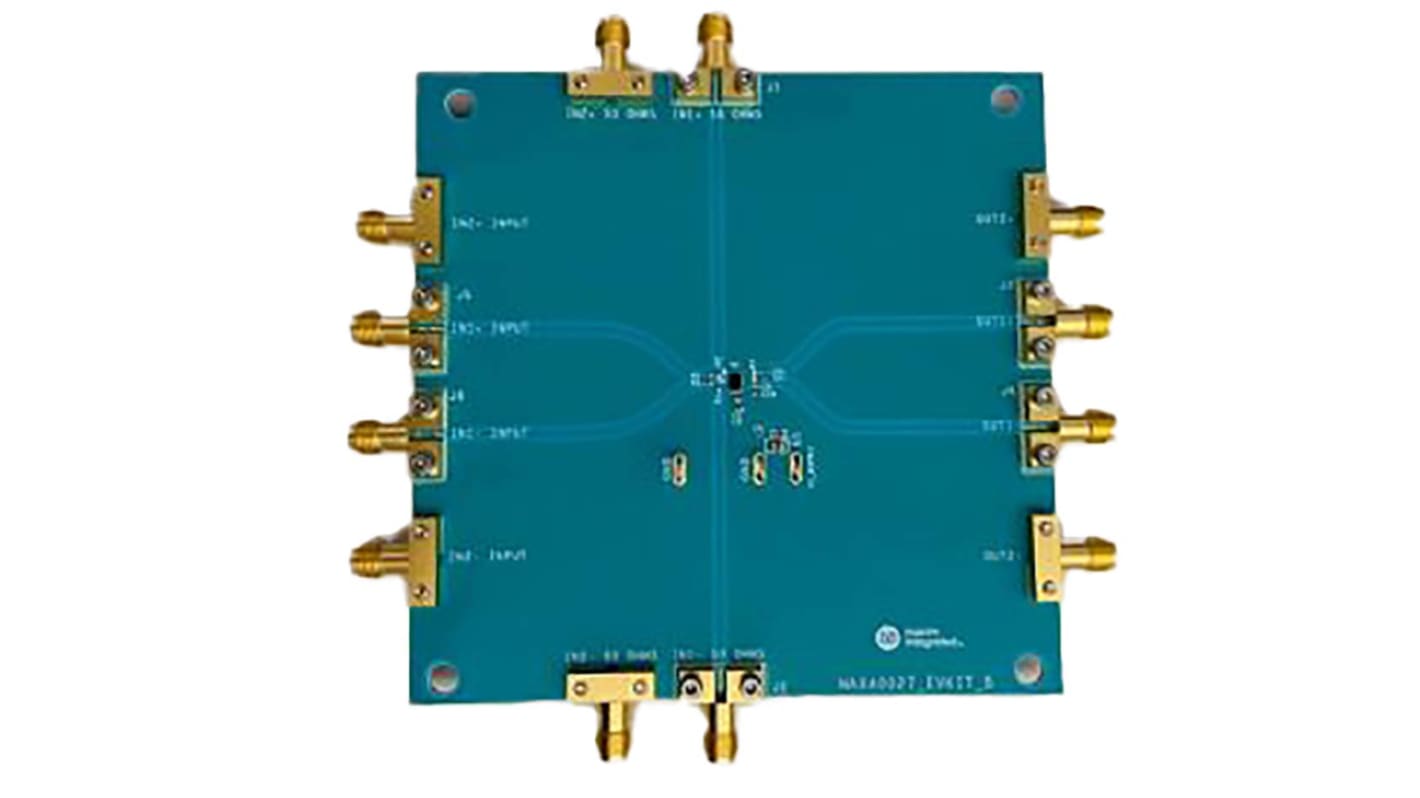

The Maxim integrated MAX40027 evaluation kit (EV kit) is a fully assembled electrical demonstration kit that provides a proven design to evaluate the MAX40027 ultra-low 280ps propagation delay, ultra-low dispersion dual comparator. The board provides layout options that allow the input termination to be easily modified for alternative input terminations. The comparator outputs are designed to drive low voltage
differential signal outputs (LVDS). The LVDS outputs help minimize power dissipation and interfaces directly with high speed interconnect devices, FPGAs and CPUs. The MAX40027 comparator is ideal for time of flight distance measurement applications.
differential signal outputs (LVDS). The LVDS outputs help minimize power dissipation and interfaces directly with high speed interconnect devices, FPGAs and CPUs. The MAX40027 comparator is ideal for time of flight distance measurement applications.
Fast Propagation Delay: 280ps (Type)
Low Over-Drive Dispersion: 25ps (VOV = 10mV to 1V)
Supply Voltage 2.7V to 3.6V
45.9mW at 2.7V Supply (Per Comparator)
Power-Efficient LVDS Outputs
-40°C to +125°C Temperature Range
Low Over-Drive Dispersion: 25ps (VOV = 10mV to 1V)
Supply Voltage 2.7V to 3.6V
45.9mW at 2.7V Supply (Per Comparator)
Power-Efficient LVDS Outputs
-40°C to +125°C Temperature Range
Specifikationer
Attribute | Value |
Kit Classification | Evaluation Kit |
For Use With | MAX40027 |
Featured Device | MAX40027EVKIT# |
Kit Name | MAX40027EVKIT |
