    PR Electronics 2 Channel Galvanic Barrier, Pulse Isolator, NAMUR Sensor, Switch Input, NPN, Relay Output, ATEX

    RS-artikelnummer:
    796-6979
    Tillv. art.nr:
    5202B2
    Tillverkare / varumärke:
    PR Electronics
    PR Electronics
    Se alla Zener & Galvanic Barriers
    64 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    2 252,24 kr

    (exkl. moms)

    2 815,30 kr

    (inkl. moms)

    EnheterPer unit
    1 +2 252,24 kr
    RS-artikelnummer:
    796-6979
    Tillv. art.nr:
    5202B2
    Tillverkare / varumärke:
    PR Electronics
    COO (Country of Origin):
    DK

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    DK

    Produktdetaljer

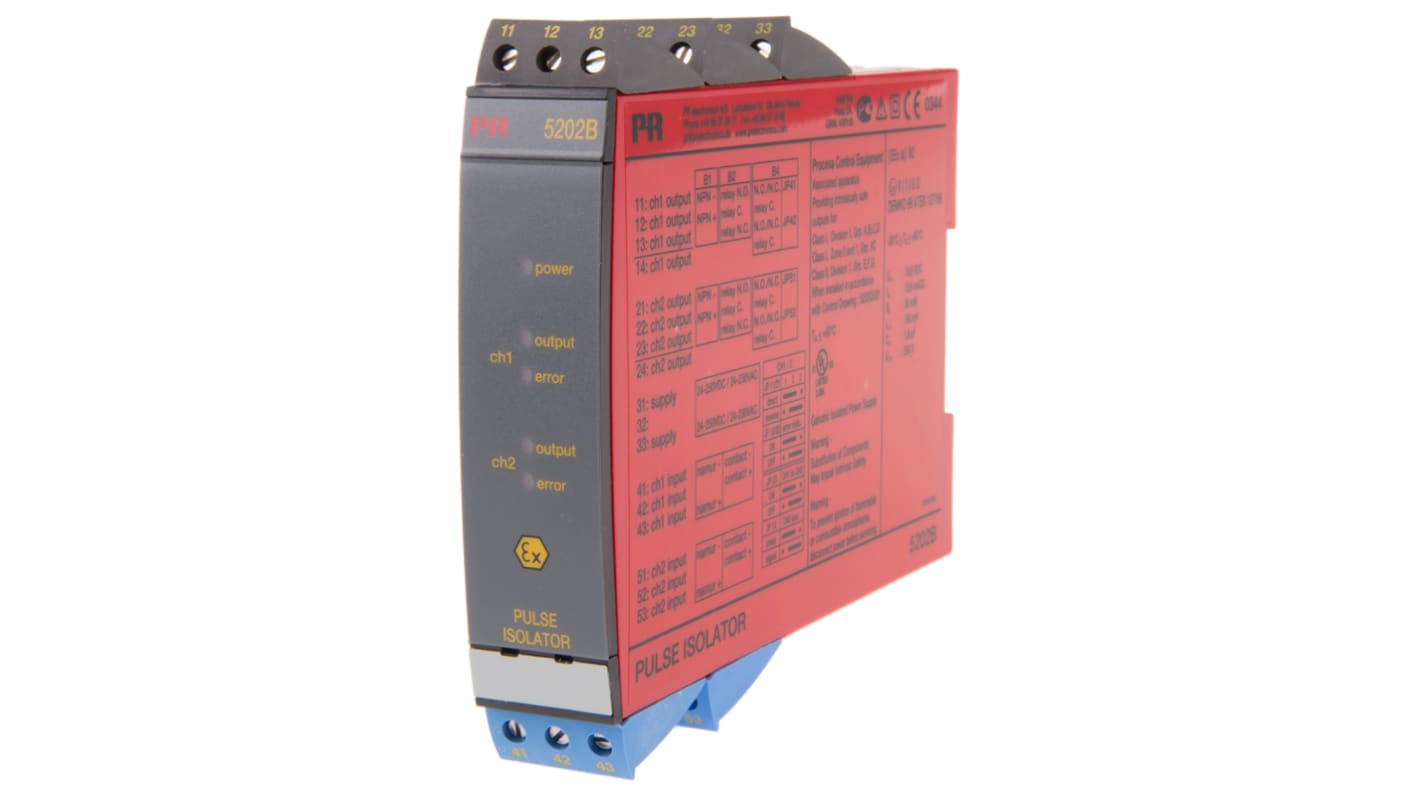

    PR Electronics 5202B Ex Pulse Isolator


    PR Electronics 5202B pulse isolator for transmission of signals to the safe area from NAMUR sensors installed in hazardous areas. This signal conditioning isolator measures one or more pulse inputs and provides an identical number of isolated pulse outputs. The PR 5202B uses transformer and optical isolation techniques to provide 3.75 kVac galvanic isolation between the input, output and power terminals. The high level of electrical isolation means that input pulses sensed at the 5202B are not electrically connected to the output pulse. The 5202B has been designed, developed and certified for use in SIL 2 applications according to the requirements of IEC 61508.
    Besides providing isolation, the PR 5202B is a barrier. This means that the module can make an intrinsically safe measurement of contacts and NAMUR sensors mounted in a zone 0/ Division 1 explosion hazard area. The PR 5202B limits the level of energy present at the contact or the NAMUR sensor to a low intrinsically safe level, thereby preventing ignition of a flammable atmosphere around the sensor – even if the sensor or the cable is damaged.


    Features and Benefits


    • 3.75 kVac galvanic isolation between input, output and supply
    • One input signal can be used on two separate outputs
    • A cable error alarm can be detected on a separate output
    • Designed, developed and certified for use in SIL 2 applications
    • Front LED indicates operation status and malfunction
    • DIN rail mounting



    PR Electronics - Ex Interfaces


    Specifikationer

    AttributeValue
    Barrier TypeGalvanic Barrier
    Number of Channels2
    Supply Voltage19.2 → 300 V dc, 21.6 → 253V ac
    Module TypePulse Isolator
    Input Signal TypeNAMUR Sensor, Switch
    Output Signal TypeNPN, Relay
    Minimum Operating Temperature-20°C
    Maximum Operating Temperature+60°C
    Maximum Voltage250V ac
    Safety Current Maximum400mA
    Safety Voltage Maximum250 V ac
    Hazardous Area CertificationATEX
    Operating Temperature Range-20 → +60°C
    Series5200
