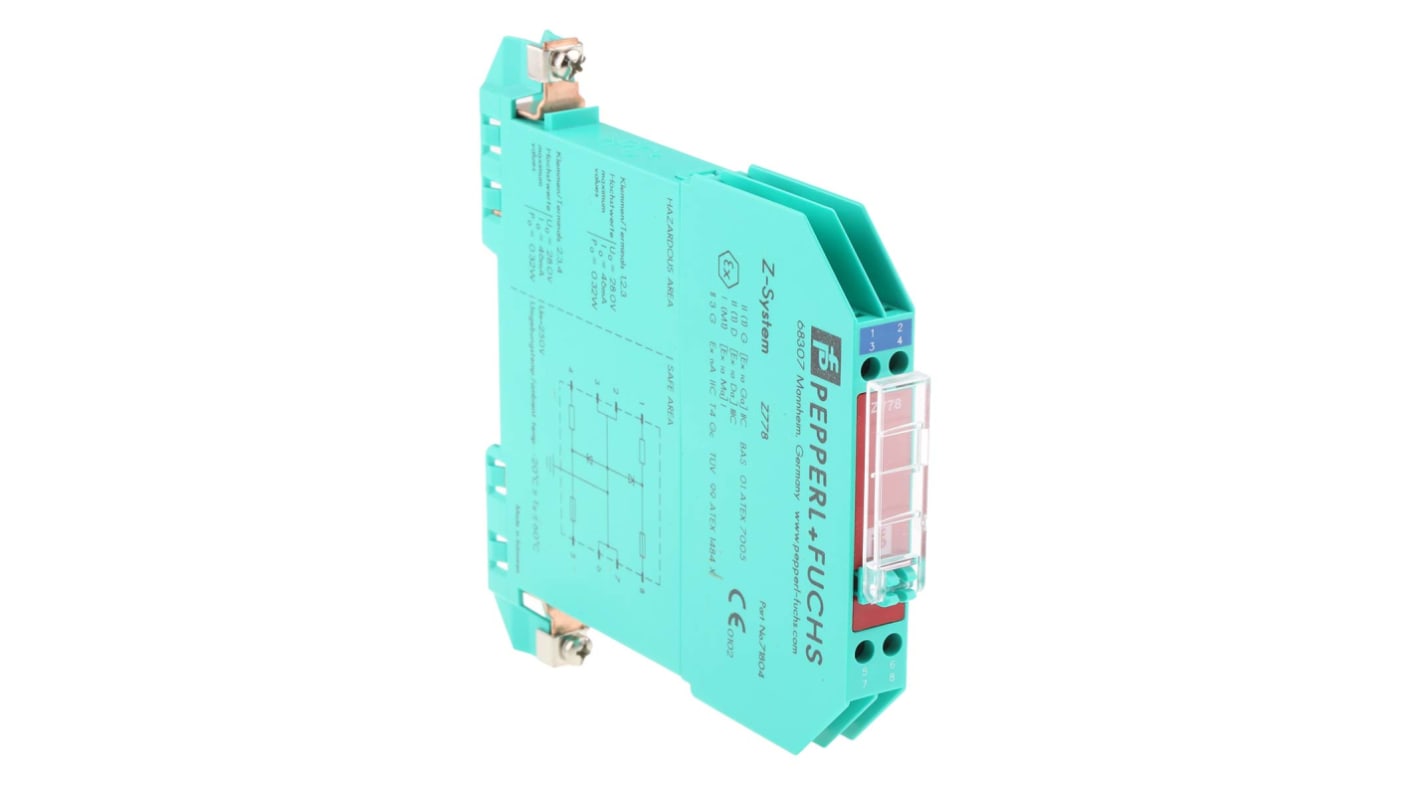

Pepperl + Fuchs 2 Channel Zener Barrier, ATEX
- RS-artikelnummer:
- 793-4288
- Tillv. art.nr:
- 261550
- Tillverkare / varumärke:
- Pepperl + Fuchs
22 I lager för avsändande samma dag
7 Inom 1 arbetsdag(ar) (UK lager)
Pris (ex. moms) Varje
1 577,00 kr
(exkl. moms)
1 971,25 kr
(inkl. moms)
Enheter | Per enhet |
|---|---|
| 1 + | 1 577,00 kr |
- RS-artikelnummer:
- 793-4288
- Tillv. art.nr:
- 261550
- Tillverkare / varumärke:
- Pepperl + Fuchs
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- ID
Produktdetaljer
P&F Dual Channel Zener Diode Barriers
Using a dual channel barrier impedes a direct grounding of the intrinsically safe circuit. The ground is only made in the event of a failure, if the zener diodes conduct. This circuit also suppresses influences of external circuits.
Typical application - thermocouples
Certificate No.
BAS 01 ATEX 7005
Group and Category
[EEx ia] IIC Class 1, Div1, Groups A-G
Isolation Barriers
Pepperl+Fuchs shunt zener diode barriers are for use as safety interfaces between intrinsically safe and non-intrinsically safe circuits. They are manufactured from Makrolon® and designed to conduct electrical signals - in either direction - between safe and hazardous areas and to limit the amount of energy which can be transferred from a safe to a hazardous area in the event of fault conditions occurring in the safe area. All systems shown are licensed for [EEx ia] IIC Class 1, Div1, Groups A-G
Specifikationer
Attribute | Value |
|---|---|
| Number of Channels | 2 |
| Module Type | Zener Barrier |
| Barrier Type | Zener Barrier |
| Maximum Voltage | 250V |
| Hazardous Area Certification | ATEX |
| Safety Current Resistance | 646Ω |
| Maximum Operating Temperature | +60°C |
| Supply Voltage | 27V dc |
| Maximum Current | 46mA |
| Minimum Operating Temperature | -20°C |
| Safety Current Maximum | 46mA |
| Safety Voltage Maximum | 250 V |
| Operating Temperature Range | -20 → +60°C |
