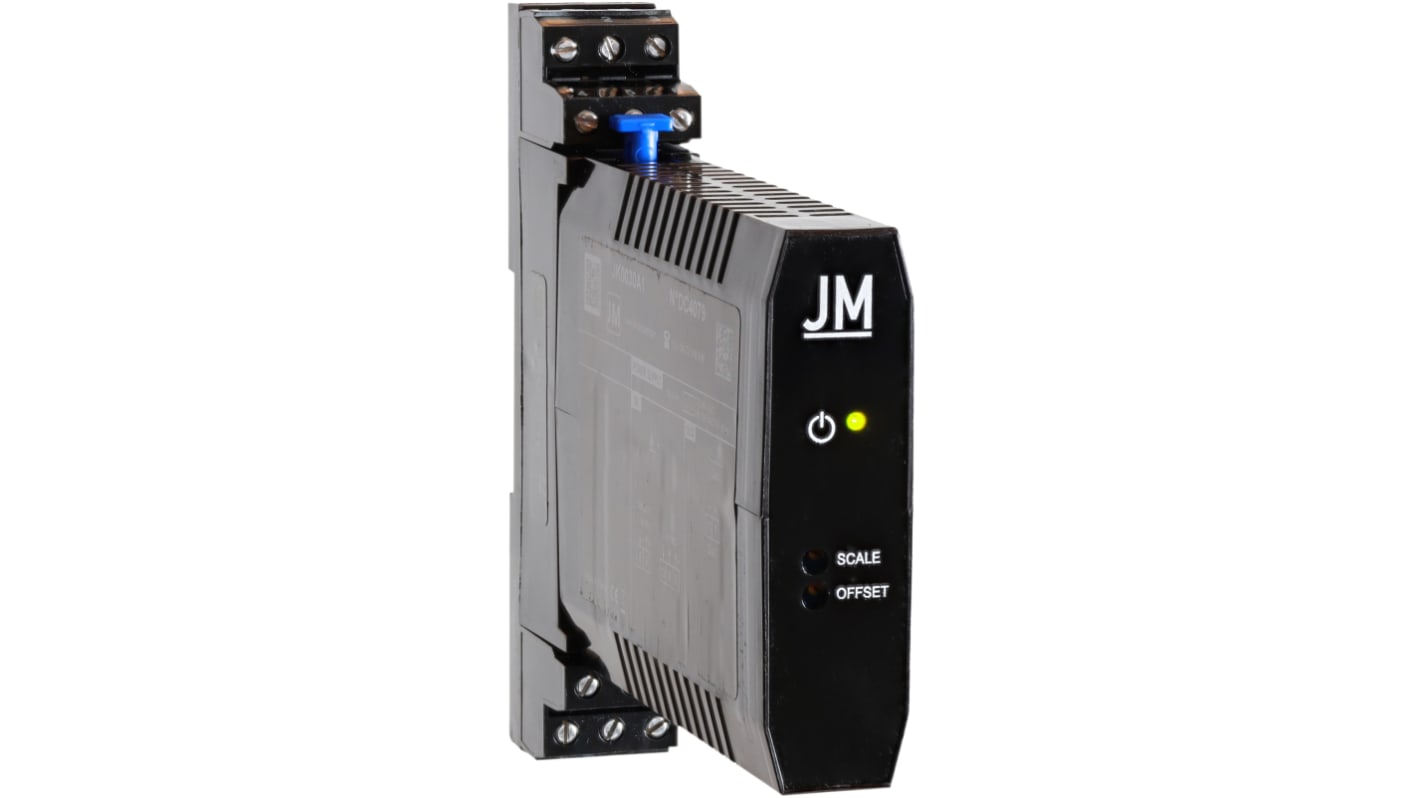

JM CONCEPT 1 Channel Galvanic Barrier, Hart Transparent Repeater, Current Input, Current Output
- RS-artikelnummer:
- 232-5971
- Tillv. art.nr:
- JK0030A1-H
- Tillverkare / varumärke:
- JM CONCEPT
Tillfälligt slut i lager – restorder för leverans 2024-10-14
Pris (ex. moms) Varje
2 247,39 kr
(exkl. moms)
2 809,24 kr
(inkl. moms)
Enheter | Per enhet |
|---|---|
| 1 + | 2 247,39 kr |
- RS-artikelnummer:
- 232-5971
- Tillv. art.nr:
- JK0030A1-H
- Tillverkare / varumärke:
- JM CONCEPT
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- FR
Produktdetaljer
The JM CONCEPT Powered Loop Isolator has a process input signal rating of 0-20mA or 4-20mA and a current output of rating 0-20mA or 4-20mA. It is designed to isolate power loops and allow communication with sensors or actuators using the protocol HART.
Precision class 0,1
Response time <100μs
Thermal drift <50ppm
Residual ripple on current output <150μA
Maximum of consumption <5.5VA
Response time <100μs
Thermal drift <50ppm
Residual ripple on current output <150μA
Maximum of consumption <5.5VA
Specifikationer
Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Module Type | Hart Transparent Repeater |
| Barrier Type | Galvanic Barrier |
| Output Signal Type | Current |
| Input Signal Type | Current |
| Maximum Operating Temperature | +60°C |
| Supply Voltage | 22 → 240 V dc, 90 → 230V ac |
| Minimum Operating Temperature | -10°C |
| Series | JK 0030A1 |
| Operating Temperature Range | -10 → +60°C |
