Produktdetaljer

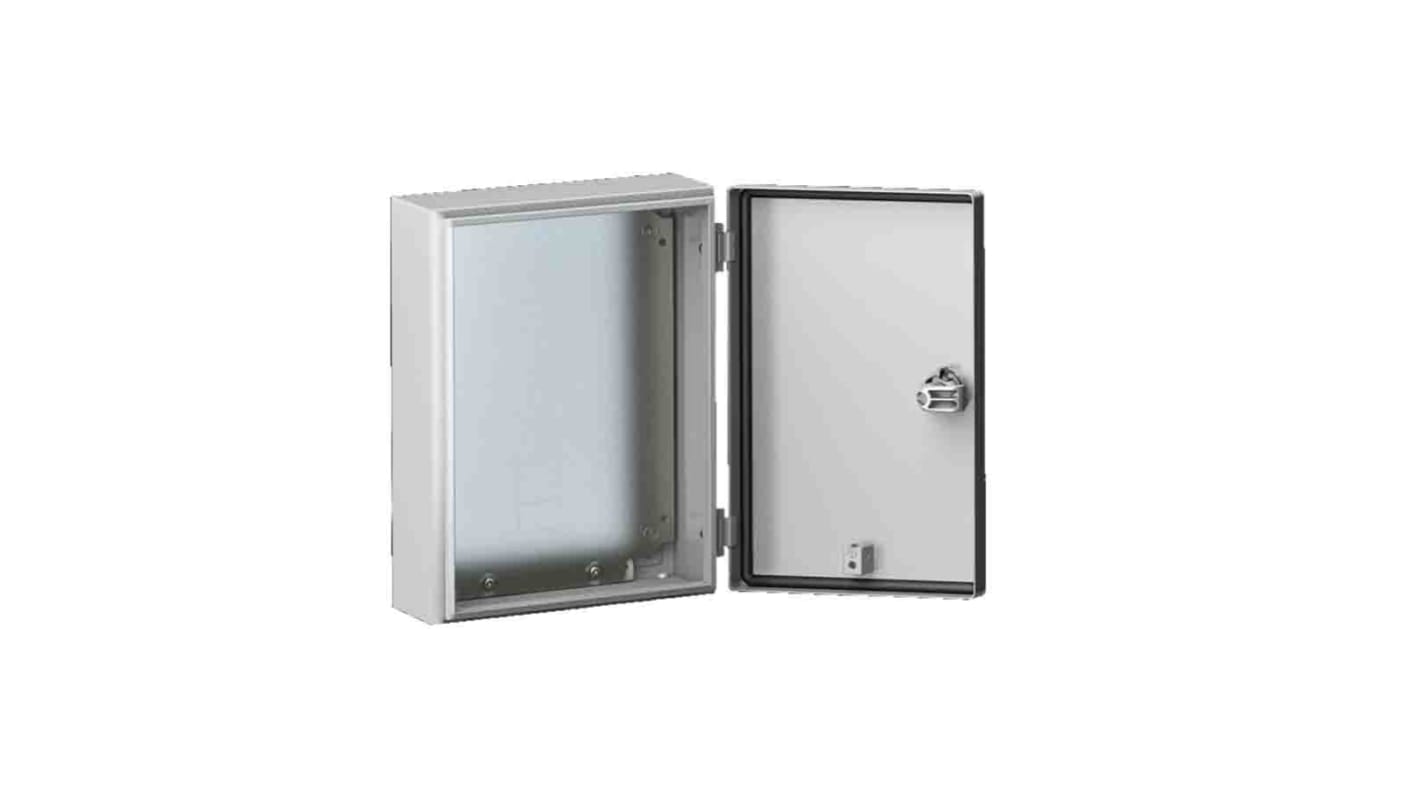

Rittal Sheet Steel Wall Box, 300mm Width, 400mm Height - KX Series - 1556000
Safely store your electronic and mechanical equipment with this sheet steel wall box from Rittal. The unit measures 400 (height) x 300 (width) x 120mm (depth), giving you plenty of storage capacity without taking up too much space. It fixes to the wall using L brackets for ease of installation. A selectable lock system allows you to adjust access to suit the level of security you need, making it a versatile choice for use in a variety of settings.
Features & Benefits
• IP66 (ingress protection) rating for protection against dust and high-pressure water jets
• Sheet steel body material is strong and resistant to impact
• Grooved door edges for an enhanced seal and increased protection of the box's contents
• Sheet steel body material is strong and resistant to impact
• Grooved door edges for an enhanced seal and increased protection of the box's contents
Applications
• Electrical control rooms
• Apartment complexes
• Industrial work areas
• Caretaker offices
• Apartment complexes
• Industrial work areas
• Caretaker offices
Does this wall box come with mounting parts?
Yes, this wall box comes with a chassis plate for securing the box to a wall and a gland plate for concealing the base of the box. The chassis plate is zinc-coated to prevent rust buildups at the fixing joints, ensuring long-lasting performance.
Note
Delivered in individual parts, still needs to be assembled
Specifikationer
Attribute | Value |
---|---|
External Height | 400 mm |
External Width | 300 mm |
External Depth | 120mm |
Body Material | Sheet Steel |
Transparent Door | No |
IP Rating | IP66 |
Chassis Plate | Yes |
Door Lock Type | Cam |
Gland Plate | Yes |
Colour | Grey |
RAL Code | RAL 7035 |
Series | KX |
External Mounting Type | Bracket |
Standards Met | UL |
IK Rating | IK08 |
