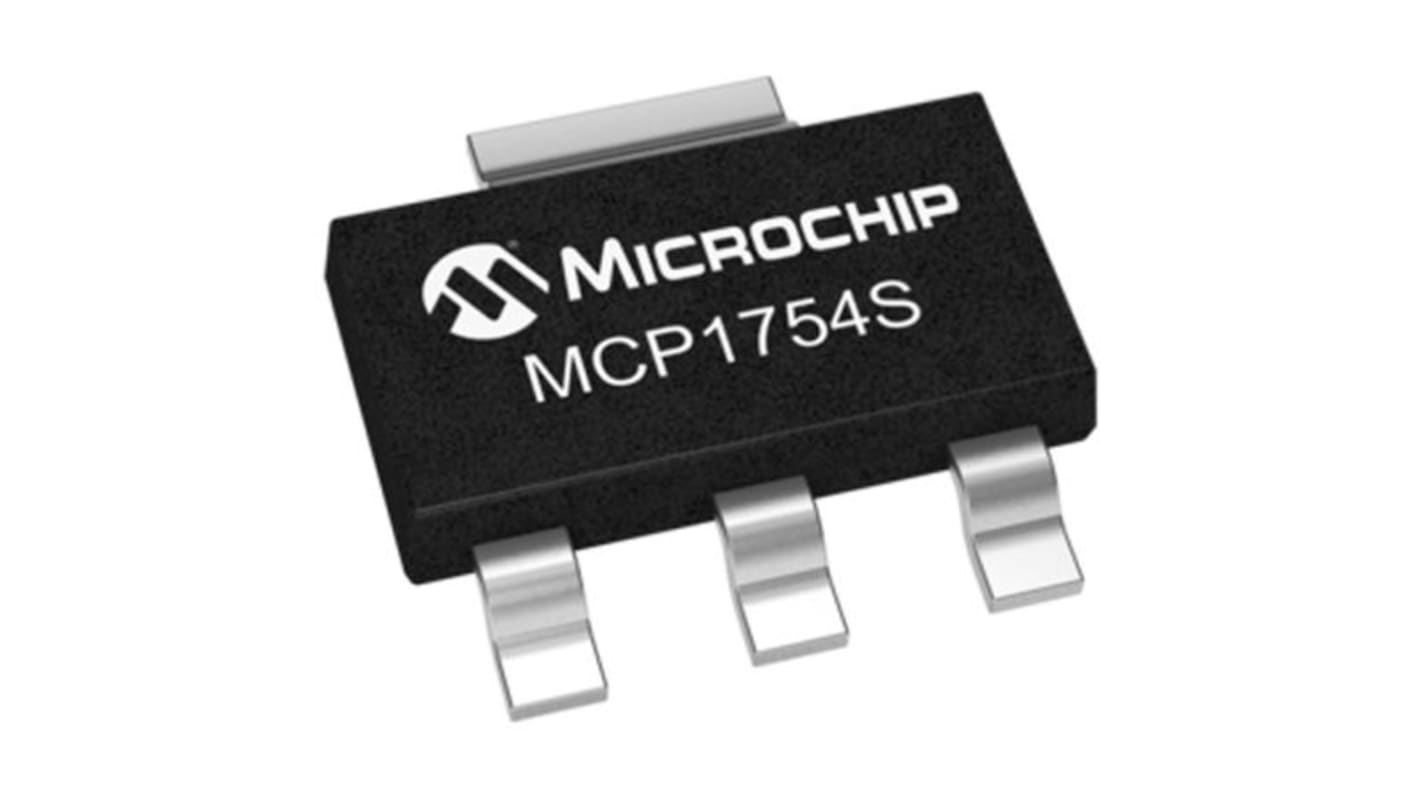

Microchip, Voltage Regulator 16V SOT-223 4-Pin

Se alla Voltage Regulators
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer tillbaka i lager, RS har för avsikt att ta bort den från vårt utbud snart.
RS-artikelnummer:
912-2907
Tillv. art.nr:
MCP1754ST-5002E/DB
Tillverkare / varumärke:
Microchip
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Microchip

Product Type

Voltage Regulator

Package Type

SOT-223

Polarity

Positive

Mount Type

Surface

Quiescent Current

90μA

Pin Count

4

Standards/Approvals

No

Width

3.7 mm

Length

6.7mm

Series

MCP1754S

Height

1.7mm

Minimum Input Voltage

3.6V

Maximum Operating Temperature

125°C

Maximum Input Voltage

16V

Automotive Standard

AEC-Q100

COO (Country of Origin):
TH

MCP1754 Low Dropout Voltage Regulator


The Microchip MCP1754 is a Low Dropout (LDO) Voltage Regulator that offers high PSRR performance. Operating from an input of 3.6 to 16 V the MCP1754 delivers up to 150 mA of current and offers a low quiescent current of 56 μA. 1 μF of output capacitance is sufficient to stabilise the output. Also the MCP1754 has a Current Foldback feature to help protect the device.

High PSRR: >70 dB @ 1 kHz (typical)

56.0 μA Typical Quiescent Current

Input Operating Voltage Range: 3.6 to 16.0 V

150 mA Output Current

Low-Dropout Voltage: 300 mV @ 150 mA (typical)

0.4% Output Voltage Tolerance (typical)

Output Voltage Tolerances of ±2.0% Over Entire Temperature Range

Stable with Minimum 1.0 μF Output Capacitance

Power Good Output

Shutdown Input

True Current Foldback Protection

Short-Circuit Protection

Over-temperature Protection

LDO (Low Dropout) Linear Voltage Regulators, Microchip
