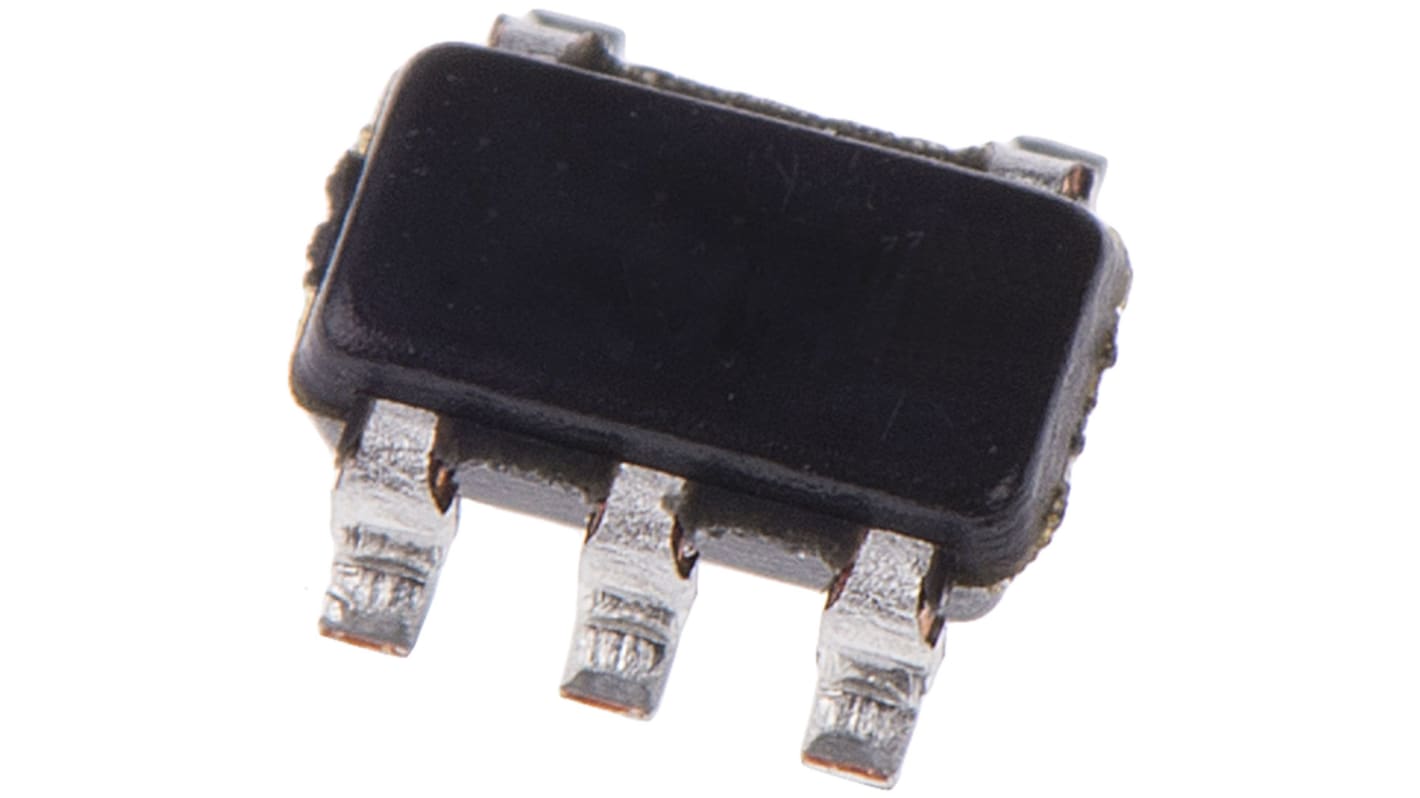

Microchip, Voltage Regulator 28V SOT-23 5-Pin

Se alla Voltage Regulators

Antal (1 rulle med 3000 enheter)*

18 738,00 kr

(exkl. moms)

23 424,00 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 20 maj 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per rulle*
3000 +6,246 kr18 738,00 kr

*vägledande pris

RS-artikelnummer:
889-5519
Tillv. art.nr:
MCP1804T-5002I/OT
Tillverkare / varumärke:
Microchip
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Microchip

Product Type

Voltage Regulator

Package Type

SOT-23

Mount Type

Surface

Polarity

Positive

Quiescent Current

0.05mA

Pin Count

5

Length

3.1mm

Height

1.3mm

Width

1.8 mm

Standards/Approvals

No

Series

MCP1804

Minimum Input Voltage

2V

Maximum Operating Temperature

85°C

Maximum Input Voltage

28V

Automotive Standard

No

COO (Country of Origin):
CN

MCP1804 Low Dropout Voltage Regulator


The Microchip MCP1804 is a Low Dropout (LDO) Voltage Regulator that operates from an input of 2.0 V to 28 V while delivering up to 150 mA of current. The device offers a low quiescent current of 50 μA and only 1 μF of output capacitance is sufficient to stabilise the output. The MCP1804 also has a Current Foldback feature to help protect the device.

Features


150 mA Output Current

Low Dropout Voltage: 260 mV @ 20 mA, VR = 3.3 V (typical)

50 μA Quiescent Current (typical)

0.01 μA Shutdown Current (typical)

Input Operating Voltage Range: 2.0 V to 28.0 V

Output Voltage Accuracy: ±2%

Stable with Ceramic Output Capacitors

Current Limit Protection with Current Foldback

Shutdown Pin

High PSRR: 50 dB Typical @ 1 kHz

LDO (Low Dropout) Linear Voltage Regulators, Microchip
