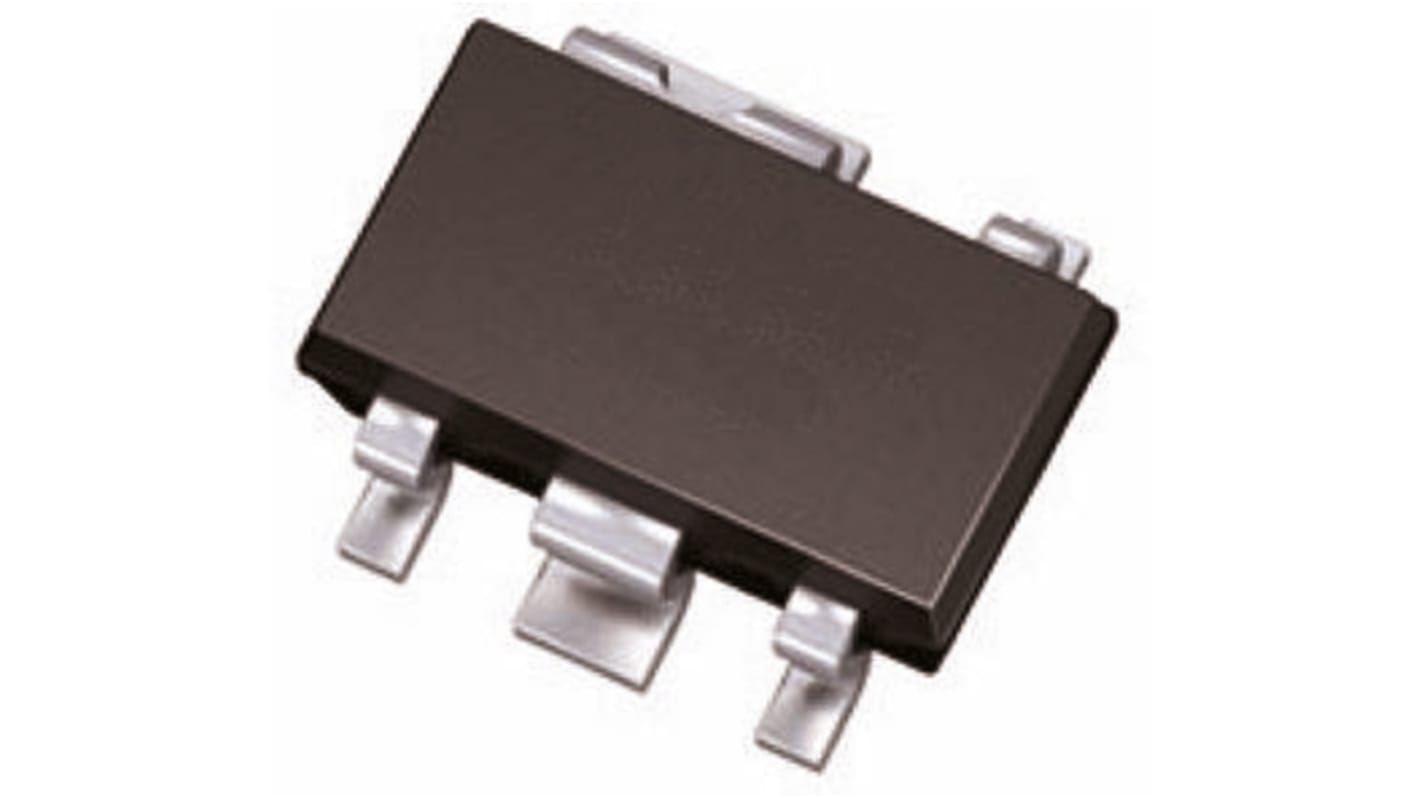

Infineon TLE42502GHTSA1, LDO Tracking Regulator, 50mA Tracking, 0.5% 5-Pin, SCT595

Se alla Voltage Regulators
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer tillbaka i lager, RS har för avsikt att ta bort den från vårt utbud snart.
Förpackningsalternativ:
RS-artikelnummer:
827-5176
Tillv. art.nr:
TLE42502GHTSA1
Tillverkare / varumärke:
Infineon
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Infineon

Regulator Type

Low Dropout Voltage

Maximum Output Current

50mA

Number of Outputs

1

Line Regulation

10 mV

Accuracy

0.5%

Load Regulation

15 mV

Mounting Type

Surface Mount

Polarity

Positive

Quiescent Current

200µA

Package Type

SCT595

Pin Count

5

Output Type

Tracking

Dimensions

2.9 x 1.6 x 1.1mm

Minimum Operating Temperature

-40 °C

Height

1.1mm

Maximum Operating Temperature

+150 °C

Maximum Input Voltage

40 V

Minimum Input Voltage

4 V

Length

2.9mm

Width

1.6mm

The Infineon low drop voltage tracking regulator is a monolithic integrated low dropout voltage tracker in a tiny SMD package PG-SCT595-5 with excellent thermal resistance. It has reverse polarity protection. It is stable with small ceramic output capacitor. The IC protects itself in case of overload, over temperature, reverse polarity as well as output short circuit to battery and ground.

Low output tracking tolerance

Low current consumption in stand by mode

Green product

AEC qualified
