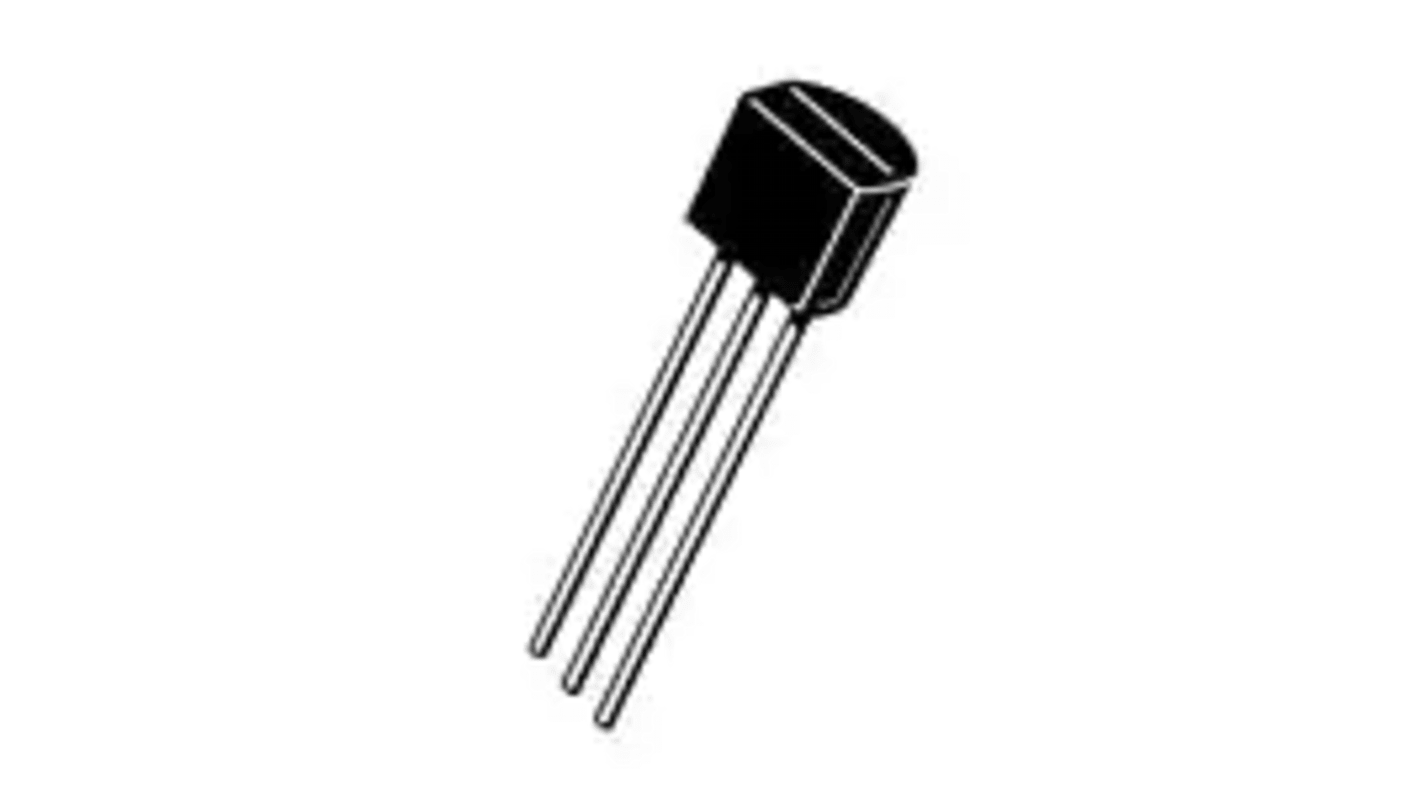

    onsemi LM317LZG, 1 Linear Voltage, Voltage Regulator 20mA, 1.2 → 37 V 3-Pin, TO-92

    RS-artikelnummer:
    516-4783
    Tillv. art.nr:
    LM317LZG
    Tillverkare / varumärke:
    onsemi
    onsemi
    Se alla Voltage Regulators
    130 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    7,25 kr

    (exkl. moms)

    9,06 kr

    (inkl. moms)

    EnheterPer unit
    1 - 97,25 kr
    10 +5,23 kr
    Förpackningsalternativ:
    RS-artikelnummer:
    516-4783
    Tillv. art.nr:
    LM317LZG
    Tillverkare / varumärke:
    onsemi

    Lagstiftning och ursprungsland


    Produktdetaljer

    1.2 – 37 V Linear voltage regulator, ON Semiconductor


    ON Semiconductor LM317 series is an adjustable Linear Voltage Regulator. The 3-terminal positive voltage regulator can offer an output current of 1.5A and more with an output voltage ranging between 1.2 to 37 V. The easy to use LM317 adjustable voltage regulator can be used in various applications such as on-card regulation and being utilised as a programmable output regulator it can be used as a precision current regulator by attaching a fixed resistor between the adjustment and output.


    Output Voltage Range: 1.25 V to 37 V
    Output Current: 1.5 A
    Short circuit current limiting, Thermal protection, and Safe-area compensation
    Floating Operation for High-Voltage Applications



    Linear Voltage Regulators, ON Semiconductor


    Specifikationer

    AttributeValue
    Maximum Output Current20mA
    Regulator TypeLinear Voltage
    Number of Outputs1
    Output Voltage1.2 → 37 V
    Line Regulation0.07 %/V
    Accuracy±4%
    Load Regulation0.5 %
    Mounting TypeThrough Hole
    PolarityPositive
    Package TypeTO-92
    Reference Voltage1.3V
    Pin Count3
    Output TypeAdjustable
    Dimensions5.2 x 4.19 x 5.33mm
    Minimum Operating Temperature0 °C
    Maximum Operating Temperature+125 °C
    Height5.33mm
    Width4.19mm
    Length5.2mm
