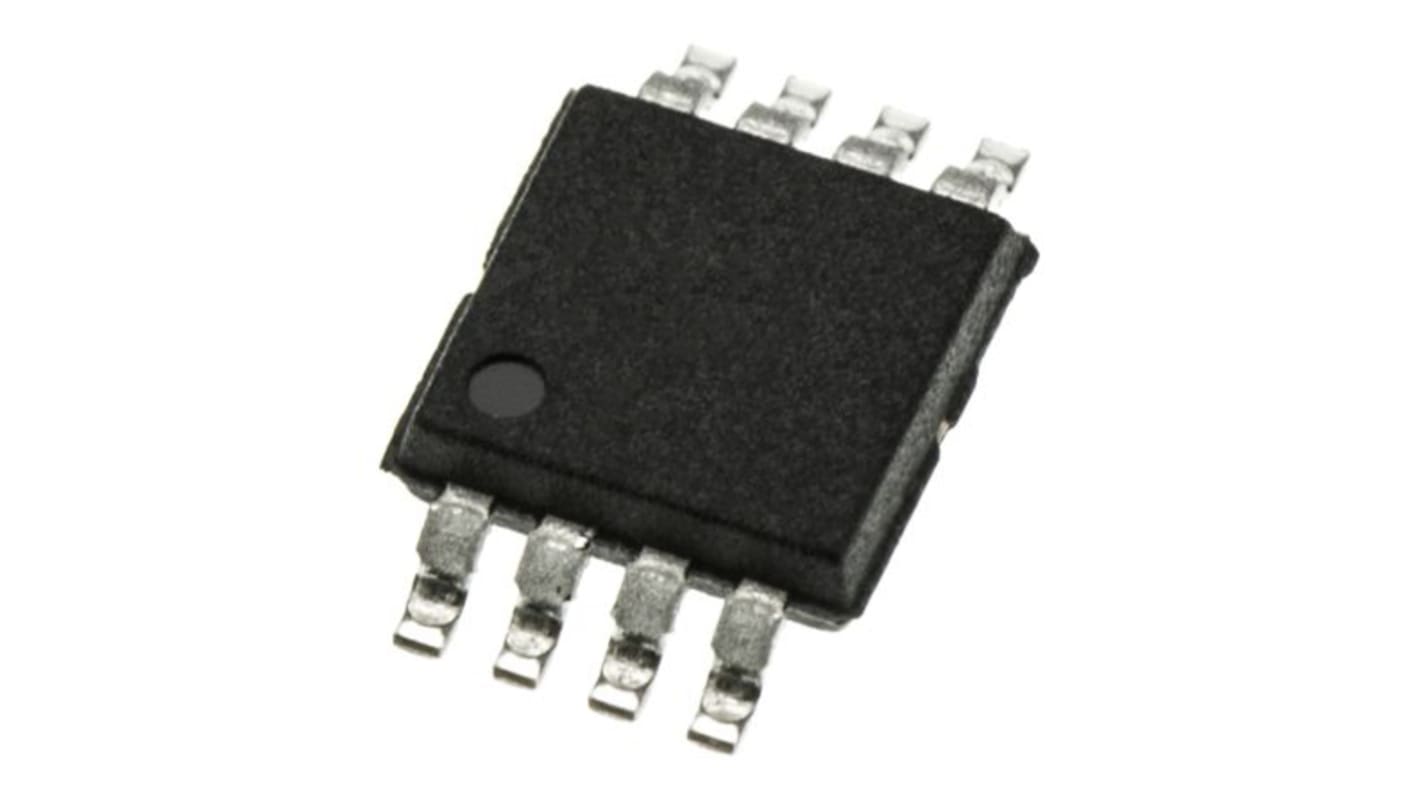

Maxim Integrated MAX1792EUA25+, 1 Linear Voltage, Voltage Regulator, 5 V 8-Pin, μMAX

Se alla Voltage Regulators
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
191-4259
Tillv. art.nr:
MAX1792EUA25+
Tillverkare / varumärke:
Maxim Integrated
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Maxim Integrated

Regulator Type

Linear Voltage

Number of Outputs

1

Output Voltage

5 V

Line Regulation

0.15 %/V

Accuracy

±1%

Load Regulation

1 %

Mounting Type

Surface Mount

Polarity

Positive

Package Type

μMAX

Quiescent Current

110µA

Reference Voltage

1.25V

Pin Count

8

Output Type

Adjustable

Dimensions

3.05 x 3.05 x 0.95mm

Maximum Input Voltage

5.5 V

Minimum Input Voltage

2.5 V

Height

0.95mm

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+85 °C

Length

3.05mm

Width

3.05mm

Guaranteed 500mA Output Current
Low 130mV Dropout at 500mA
Up to ±1% Output Voltage Accuracy
Preset at 1.5V, 1.8V, 2.5V, 3.3V, or 5.0V
Adjustable from 1.25V to 5.0V
Reset Output with 4ms Timeout Period
Low 80μA Ground Current
0.1μA Shutdown Current
Thermal Overload Protection
Output Current Limit
Tiny 1.3W Power-μMAX Package
Applications/Uses
Cell Phones/Cordless Phones
Docking Stations
Notebook Computers
Palmtop Computers
PDAs and Other Handheld Devices
USB Hubs
Wireless Base Stations
