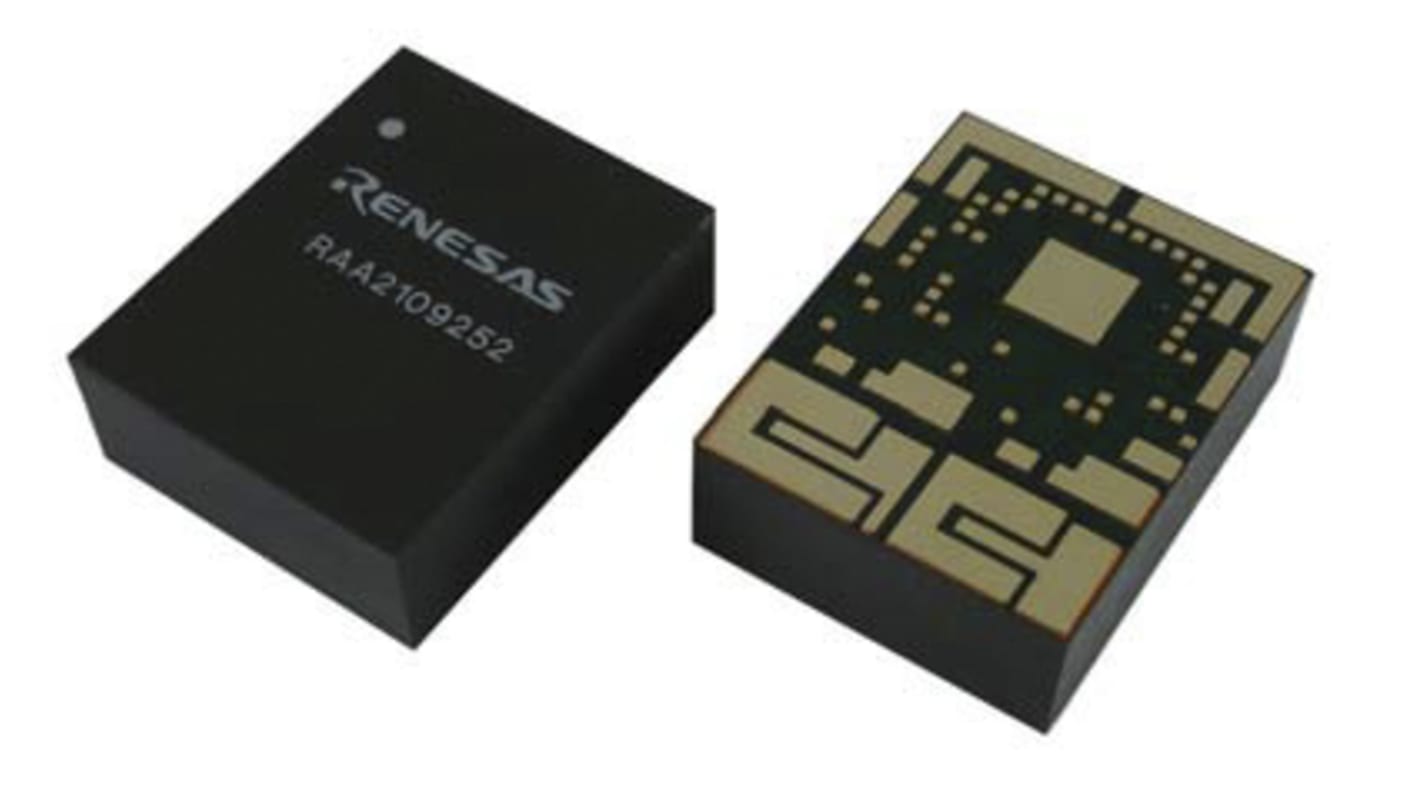

Renesas Electronics RAA2109252GLG#AG0, 1 Linear Voltage, Voltage Regulator 25A, 0.6 → 5 V 58-Pin, HDA

Se alla Voltage Regulators
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
Förpackningsalternativ:
RS-artikelnummer:
181-3739
Tillv. art.nr:
RAA2109252GLG#AG0
Tillverkare / varumärke:
Renesas Electronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Renesas Electronics

Maximum Output Current

25A

Regulator Type

Linear Voltage

Output Voltage

0.6 → 5 V

Number of Outputs

1

Accuracy

±1.2%

Mounting Type

Surface Mount

Package Type

HDA

Pin Count

58

Reference Voltage

5.5 → 6.6V

Output Type

Fixed

Dimensions

18 x 23 x 7.47mm

Maximum Input Voltage

14 V

Maximum Operating Temperature

+85 °C

Minimum Input Voltage

4.5 V

Minimum Operating Temperature

-40 °C

Height

7.47mm

Width

23mm

Length

18mm

25A/25A dual-channel output current
4.5V to 14V single rail input voltage
Up to 95.5% efficiency
Programmable output voltage
0.6V to 5V output voltage settings
±1.2% accuracy over line/load/temperature
ChargeMode control loop architecture
296kHz to 1067kHz fixed switching frequency operations
No compensation required
Fast single clock cycle transient response
PMBus interface and/or pin-strap mode
Programmable through PMBus
Pin-strap mode for standard setting
Real-time telemetry for VIN, VOUT, IOUT, temperature, duty cycle, and fSW
Complete over/undervoltage, current, and temperature protections with fault logging
PowerNavigator supported
Thermally enhanced 18mm x 23mm x 7.5mm HDA package
